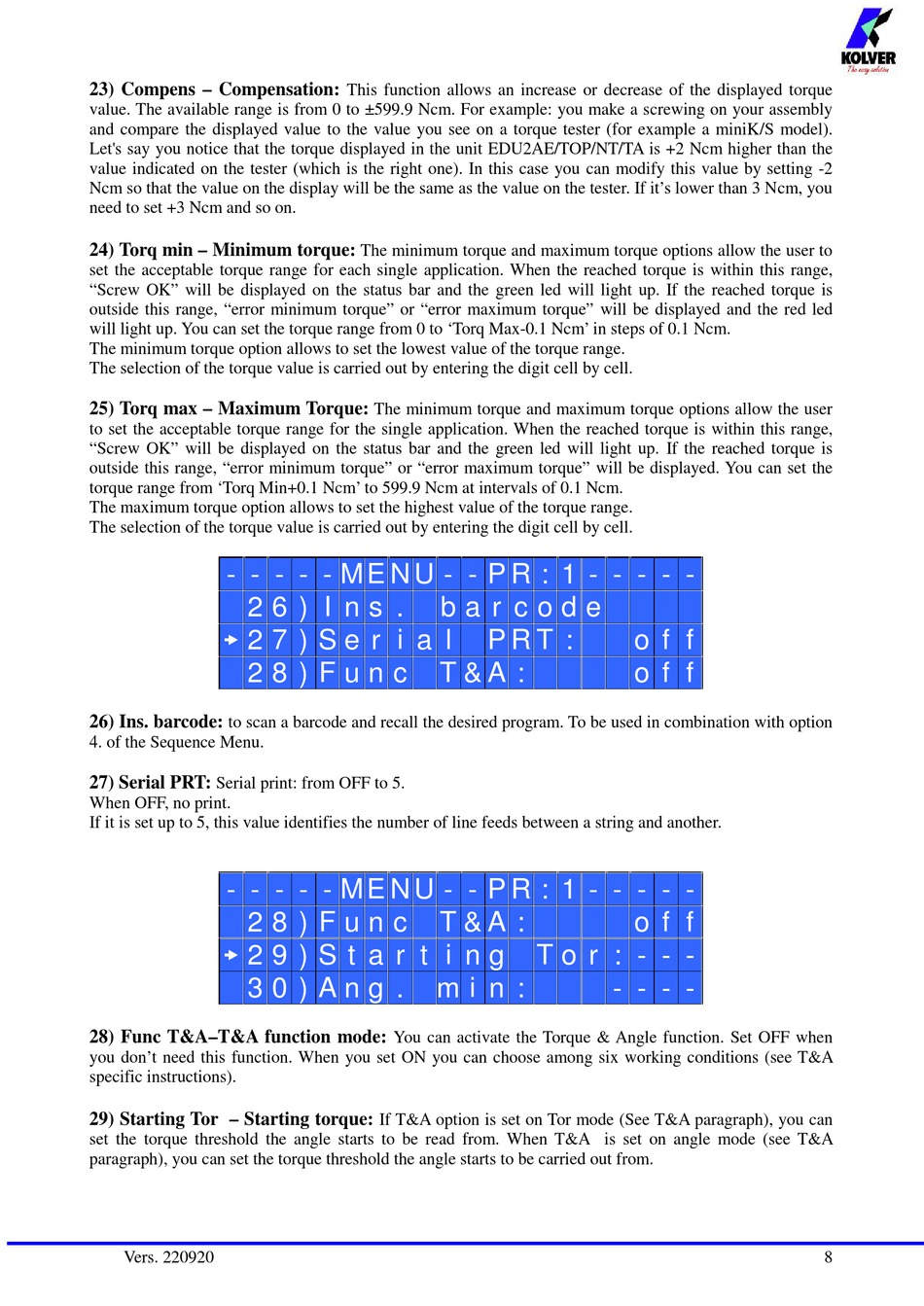

23) Compens – Compensation:
value. The available range is from 0 to ±599.9 Ncm. For example: you make a screwing on your assembly
and compare the displayed value to the value you see on a torque tester (for example a miniK/S model).
Let's say you notice that the torque displayed in the unit EDU2AE/TOP/NT/TA is +2 Ncm higher than the
value indicated on the tester (which is the right one). In this case you can modify this value by setting -2
Ncm so that the value on the display will be the same as the value on the tester. If it's lower than 3 Ncm, you
need to set +3 Ncm and so on.
24) Torq min – Minimum torque:
set the acceptable torque range for each single application. When the reached torque is within this range,
"Screw OK" will be displayed on the status bar and the green led will light up. If the reached torque is
outside this range, "error minimum torque" or "error maximum torque" will be displayed and the red led
will light up. You can set the torque range from 0 to 'Torq Max-0.1 Ncm' in steps of 0.1 Ncm.
The minimum torque option allows to set the lowest value of the torque range.
The selection of the torque value is carried out by entering the digit cell by cell.
25) Torq max – Maximum Torque:
to set the acceptable torque range for the single application. When the reached torque is within this range,
"Screw OK" will be displayed on the status bar and the green led will light up. If the reached torque is
outside this range, "error minimum torque" or "error maximum torque" will be displayed. You can set the
torque range from 'Torq Min+0.1 Ncm' to 599.9 Ncm at intervals of 0.1 Ncm.
The maximum torque option allows to set the highest value of the torque range.
The selection of the torque value is carried out by entering the digit cell by cell.
- - - - - M E N U - - P R : 1 - - - - -
2 6 ) I n s .
 2 7 ) S e r i a l
2 8 ) F u n c
26) Ins. barcode:
to scan a barcode and recall the desired program. To be used in combination with option
4. of the Sequence Menu.
27) Serial PRT:
Serial print: from OFF to 5.
When OFF, no print.
If it is set up to 5, this value identifies the number of line feeds between a string and another.
- - - - - M E N U - - P R : 1 - - - - -
2 8 ) F u n c
 2 9 ) S t a r t i n g
3 0 ) A n g .
28) Func T&A–T&A function mode:
you don't need this function. When you set ON you can choose among six working conditions (see T&A
specific instructions).
29) Starting Tor – Starting torque:
set the torque threshold the angle starts to be read from. When T&A is set on angle mode (see T&A
paragraph), you can set the torque threshold the angle starts to be carried out from.
