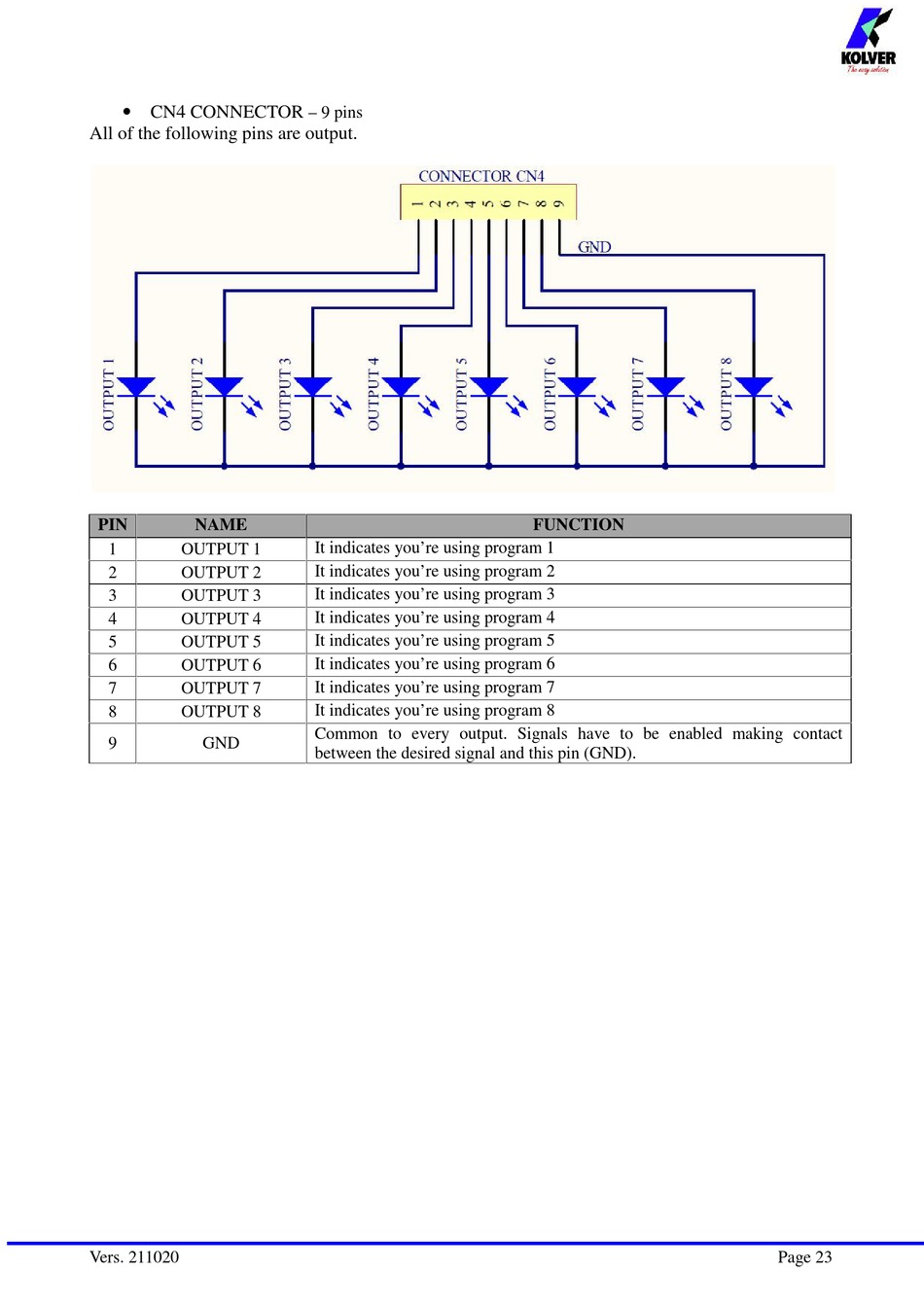

CN4 CONNECTOR
All of the following pins are output.
PIN
NAME
1
OUTPUT 1
2
OUTPUT 2
3
OUTPUT 3
4
OUTPUT 4
5
OUTPUT 5
6
OUTPUT 6
7
OUTPUT 7
8
OUTPUT 8
9
GND
Vers. 211020
– 9 pins
It indicates you're using program 1
It indicates you're using program 2
It indicates you're using program 3
It indicates you're using program 4
It indicates you're using program 5
It indicates you're using program 6
It indicates you're using program 7
It indicates you're using program 8
Common to every output. Signals have to be enabled making contact
between the desired signal and this pin (GND).
