KOLVER S.r.l. declares that the new tool here described : control unit model EDU 2AE/FR is in conformity
with the following standards and other normative documents:
2006/42/CE, LVD 2014/35/UE, EMCD 2014/30/UE, EN 62841-2-2:2014, EN 62841-1: 2015, EN 60204-1,
EN 61000-6-2, EN 61000-6-4.
It is also in conformity with RoHS III normative (2011/65/UE and following 2015/863).
Name:
Position:
st
Thiene, January 1
2021
Operational Manual
EDU2AE/FR
Torque range: 0.05-7 Nm
IDENTIFICATION DATA OF THE MANUFACTURER
U
VIA M. CORNER, 19/21
36016 THIENE (VI) ITALIA
IDENTIFICATION DATA OF THE PRODUCT
U
MODEL:
CODE:
TECHNICAL DATA OF THE PRODUCT
DIMENSIONS: 195 x 170 x h110 mm WEIGHT: 2,4 Kg
DECLARATION OF CONFORMITY
Giovanni Colasante
General Manager
Person authorized to compile the technical file in Kolver.
KOLVER S.r.l.
EDU 2AE/FR
032000/FR
FUSE: 3.15 A
Advertisement
Related Manuals for Kolver EDU2AE/FR
Summary of Contents for Kolver EDU2AE/FR
- Page 1 DIMENSIONS: 195 x 170 x h110 mm WEIGHT: 2,4 Kg DECLARATION OF CONFORMITY KOLVER S.r.l. declares that the new tool here described : control unit model EDU 2AE/FR is in conformity with the following standards and other normative documents: 2006/42/CE, LVD 2014/35/UE, EMCD 2014/30/UE, EN 62841-2-2:2014, EN 62841-1: 2015, EN 60204-1, EN 61000-6-2, EN 61000-6-4.

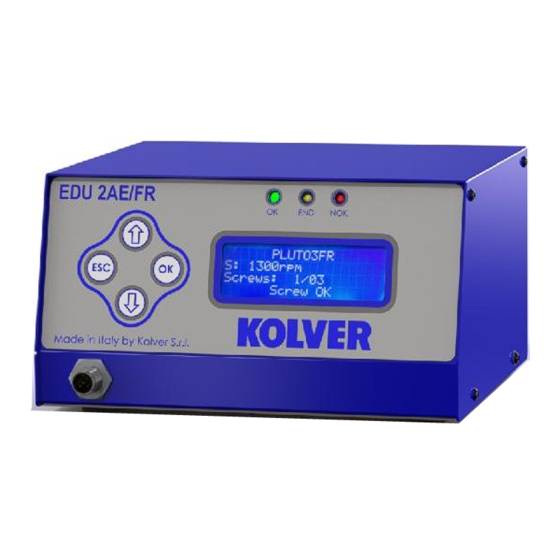

- Page 2 Giovanni Colasante EDU 2AE/FR power supply and control unit is an innovative system for controlling the torque of any clutch model of PLUTO clutch series: PLUTO 3FR/HS, PLUTO 5FR and PLUTO 7FR. Of FAB series: FAB03, FAB10, FAB12 and FAB18. And of RAF series: RAF32, RAF38 and RAF50. They are available either inline, pistol, for automation and with angle head (only PLUTO).
- Page 3 Press any key on the front panel to enter the main screen (see following picture). P L U T O 5 F R 1 0 0 0 r p m S c r e w s : 0 / 0 3 a t t e s a a v v i t a t u r a 1- Screwdriver model...
-
Page 4: Program Setting
MENU - - - - - M A I N - M E N U - - - - - - c h a n g e E S C q u i t P r o g r a m s e t t i n g U n i t o p t i o n s... -
Page 5: Unit Options
You will hear two beep sounds, too. 8) Screws number: The EDU2AE/FR can act as screw counter. You can set the number of screws from 1 to 99. To disable the function select OFF by pressing as many times as needed. - Page 6 - - - - O P T I O N S - M E N U - - - - 3 ) C y c l e s : 0 0 0 0 0 0 0 0 0 4 ) C h a n g e p a s s w o r d ...
- Page 7 I/O CONNECTIONS EDU 2AE control unit series have connectors placed on the back panel. These connectors allow to enable functions through inputs and to take signals through outputs. The inputs are activated by connecting them to ground. A positive voltage must NEVER be brought to these inputs. Bringing 24V to the unit inputs could damage the inputs themselves.
- Page 8 CN1 CONNECTOR – 10 pin: On the back panel, in all the EDU 2AE units, there is a 10 pin I/O connector. Vers. 210920...
- Page 9 NAME FUNCTION OUTPUT +24V voltage protected. The maximum current consumption is 400mA. CAN NOT BE +24V USED TO POWER EXTERNAL DEVICES. Common pin. Signals must be taken between this pin (GND) and the respective signal pins. Error signal: it activates every time an error occurs. ERROR The red led on the front panel will switch on.
- Page 10 NAME FUNCTION OUTPUT Common pin for any input and output. By closing the contact between pin 1 and any of the other pins to start the function you need. PROGRAM It activates at the end of each program. Not used. INPUT RESET If pressed for at least 1 sec, it resets the program you are working in.
-
Page 11: Troubleshooting
ERROR PROBLEM SOLUTION “waiting connection” doesn’t turn into “system Contact your nearest Kolver dealer. ready” after it’s been switched on. “Rev. incomplete” is displayed on the status bar (the displayed torque signal is correct but the set unscrewing is not complete). - Page 12 SERIAL PORT only on EDU 2AE/FR: EDU 2AE/FR control unit is supplied with a serial 9 pin male connector. In this way you can print the results of each screwing. The transmission characteristics are the following: 9600 (bits per second), 8 (data bits), n (no parity), 1 (bits stop 1). Connection pin: PIN 2 = TX, PIN 5 = GND The print string is the following: SCREWDRIVER...
- Page 13 EXPLODED VIEW EDU2AE/FR Vers. 210920...
-
Page 14: Spare Parts
SPARE PARTS Position Description Quantity Code Screw M3x5 TX10 872444 Upper panel 2AE 819003 852521/SW Main PCB Switching 48V 600W 872490 Spacer 15mm - 4,8 mm 890004/T Washer M3 h0,5 mm 800042 Ground cable 800090/E Ferrite 872468 M3 Brass nut 800056/O Front membrane EDU 2AE/FR 858004... - Page 15 7. No one, whether an agent, servant or employee of KOLVER, is authorized to add to or modify the terms of this limited guarantee in any way. However it’s possible to extend the warranty with an extra cost.
