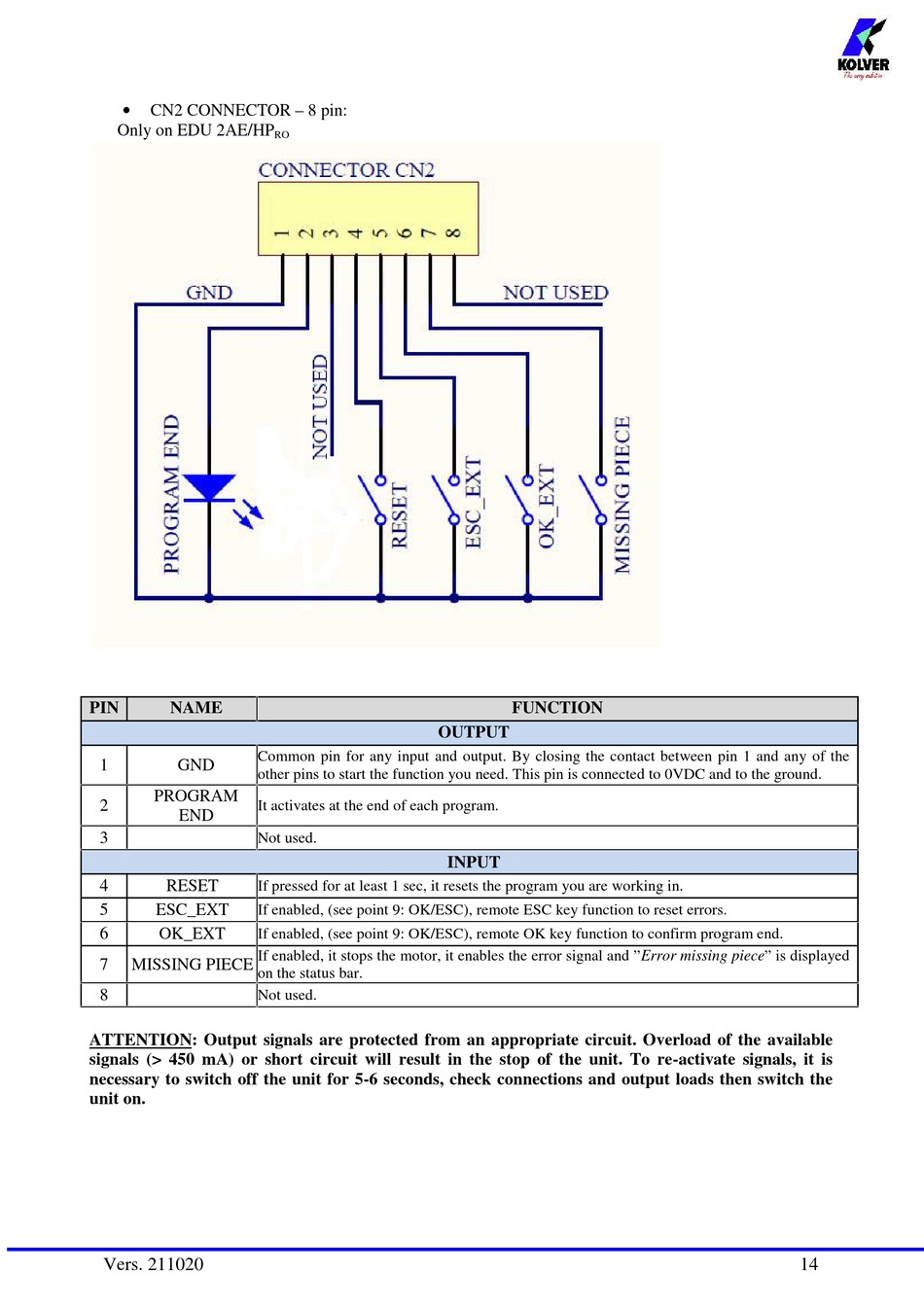

CN2 CONNECTOR – 8 pin:
Only on EDU 2AE/HP
PIN
NAME
Common pin for any input and output. By closing the contact between pin 1 and any of the
1
GND
other pins to start the function you need. This pin is connected to 0VDC and to the ground.
PROGRAM
2
It activates at the end of each program.
END
3
Not used.
4
RESET
If pressed for at least 1 sec, it resets the program you are working in.
5
ESC_EXT
If enabled, (see point 9: OK/ESC), remote ESC key function to reset errors.
6
OK_EXT
If enabled, (see point 9: OK/ESC), remote OK key function to confirm program end.
If enabled, it stops the motor, it enables the error signal and "Error missing piece" is displayed
7
MISSING PIECE
on the status bar.
8
Not used.
ATTENTION: Output signals are protected from an appropriate circuit. Overload of the available
signals (> 450 mA) or short circuit will result in the stop of the unit. To re-activate signals, it is
necessary to switch off the unit for 5-6 seconds, check connections and output loads then switch the
unit on.
Vers. 211020
