EDU1FR/SG can be used with any Kolver screwdriver with clutch, either lever or
push start, inline or pistol type.

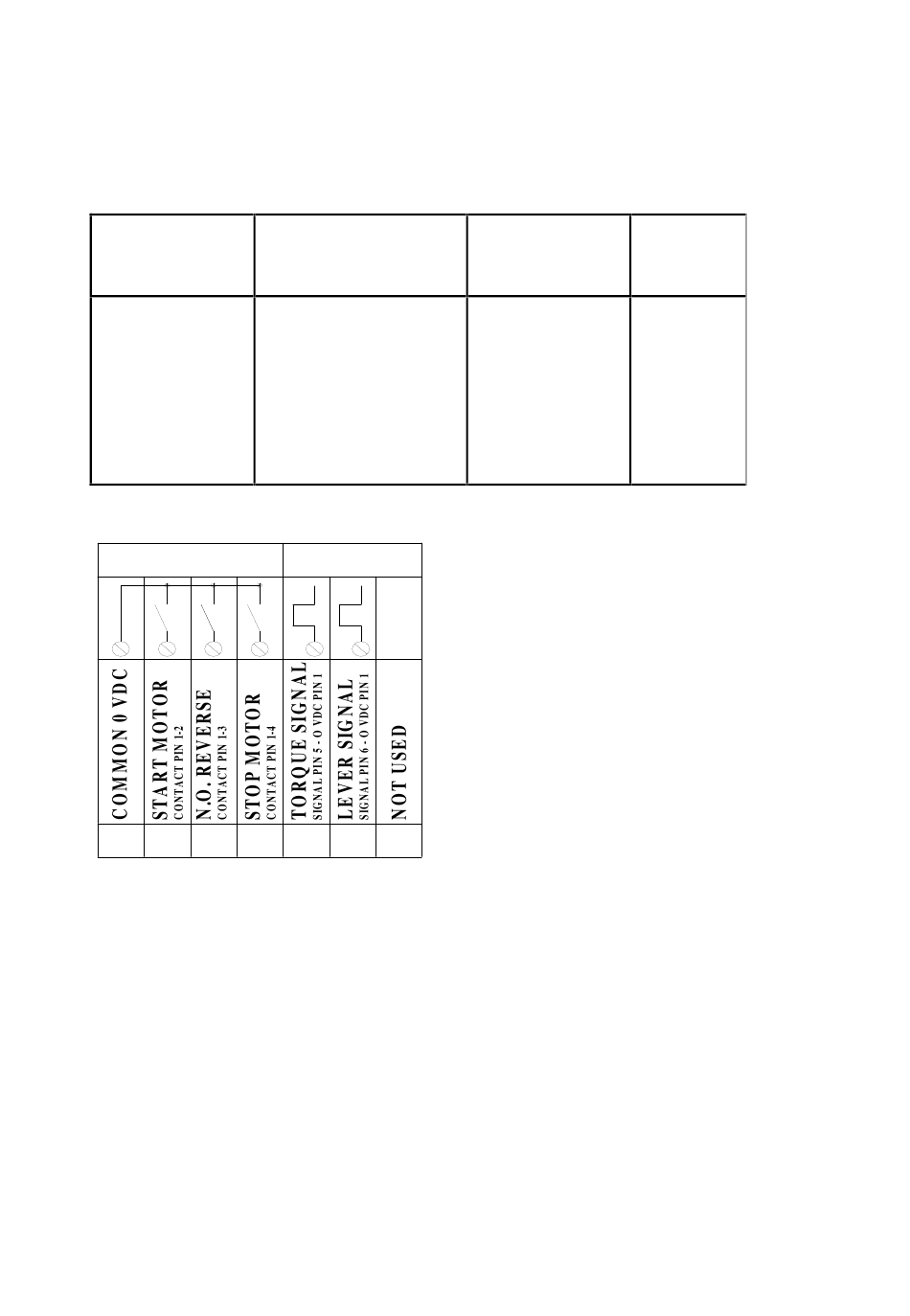

This model rear panel presents one connector for input and output signals. Input:
start, reverse, stop motor and torque HL. Output: torque and pressed lever signals
(24V 20mA).
Controller
EDU1FR/SG
IN P U T
1
2
3
4
PIN 1: earth common (COM 0Vdc)
PIN 2: contact between pin 1 and 2. Clockwise.
PIN 3: contact between pin 1 and 3. Counterclockwise.
PIN 4: contact between pin 1 and 4, it stops the motor in any situation.
PIN 5: Correct screwing done between min and max time.
Signal starts when the screwing is done and it resets when the lever is pressed to
start a new one.
PIN 6: Signal starts when the lever is pressed or at input start and it stops when it is
released.
Vers. 080920
Features
120W, 1 connector,
adjustable speed and
ramp
IN: remote start and
reverse;
OUT: torque and
lever signals
O U T P U T
24V 20m A
5 6 7
Dimensions
130 x 118 x 67
Weight
0,6 Kg
