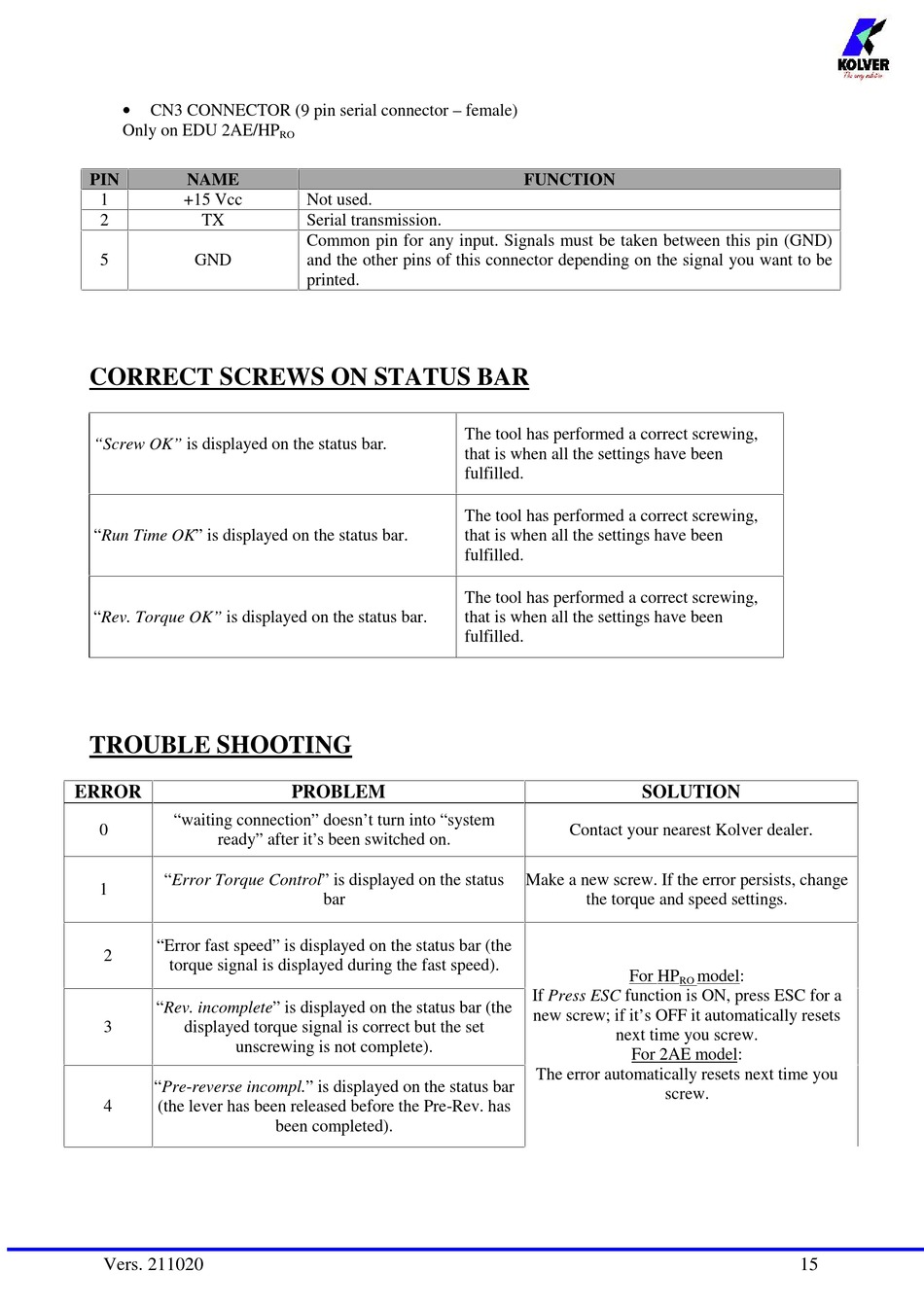

Kolver 032000 Operational Manual page 15


CN3 CONNECTOR (9 pin serial connector – female)
Only on EDU 2AE/HP
PIN NAME
1 +15 Vcc
2 TX
5 GND
CORRECT SCREWS ON STATUS BAR
"Screw OK" is displayed on the status bar.
"Run Time OK" is displayed on the status bar.
"Rev. Torque OK" is displayed on the status bar.
TROUBLE SHOOTING
ERROR
"waiting connection" doesn't turn into "system
0
ready" after it's been switched on.
"Error Torque Control" is displayed on the status
1
"Error fast speed" is displayed on the status bar (the
2
torque signal is displayed during the fast speed).
"Rev. incomplete" is displayed on the status bar (the
3 displayed torque signal is correct but the set
unscrewing is not complete).
"Pre-reverse incompl." is displayed on the status bar
4 (the lever has been released before the Pre-Rev. has
Vers. 211020
RO
Not used.
Serial transmission.
Common pin for any input. Signals must be taken between this pin (GND)
and the other pins of this connector depending on the signal you want to be
printed.
PROBLEM
bar
been completed).
FUNCTION
The tool has performed a correct screwing,
that is when all the settings have been
fulfilled.
The tool has performed a correct screwing,
that is when all the settings have been
fulfilled.
The tool has performed a correct screwing,
that is when all the settings have been
fulfilled.
Contact your nearest Kolver dealer.
Make a new screw. If the error persists, change
the torque and speed settings.
For HP
If Press ESC function is ON, press ESC for a
new screw; if it's OFF it automatically resets
next time you screw.
For 2AE model:
The error automatically resets next time you
SOLUTION
model:
RO
screw.
