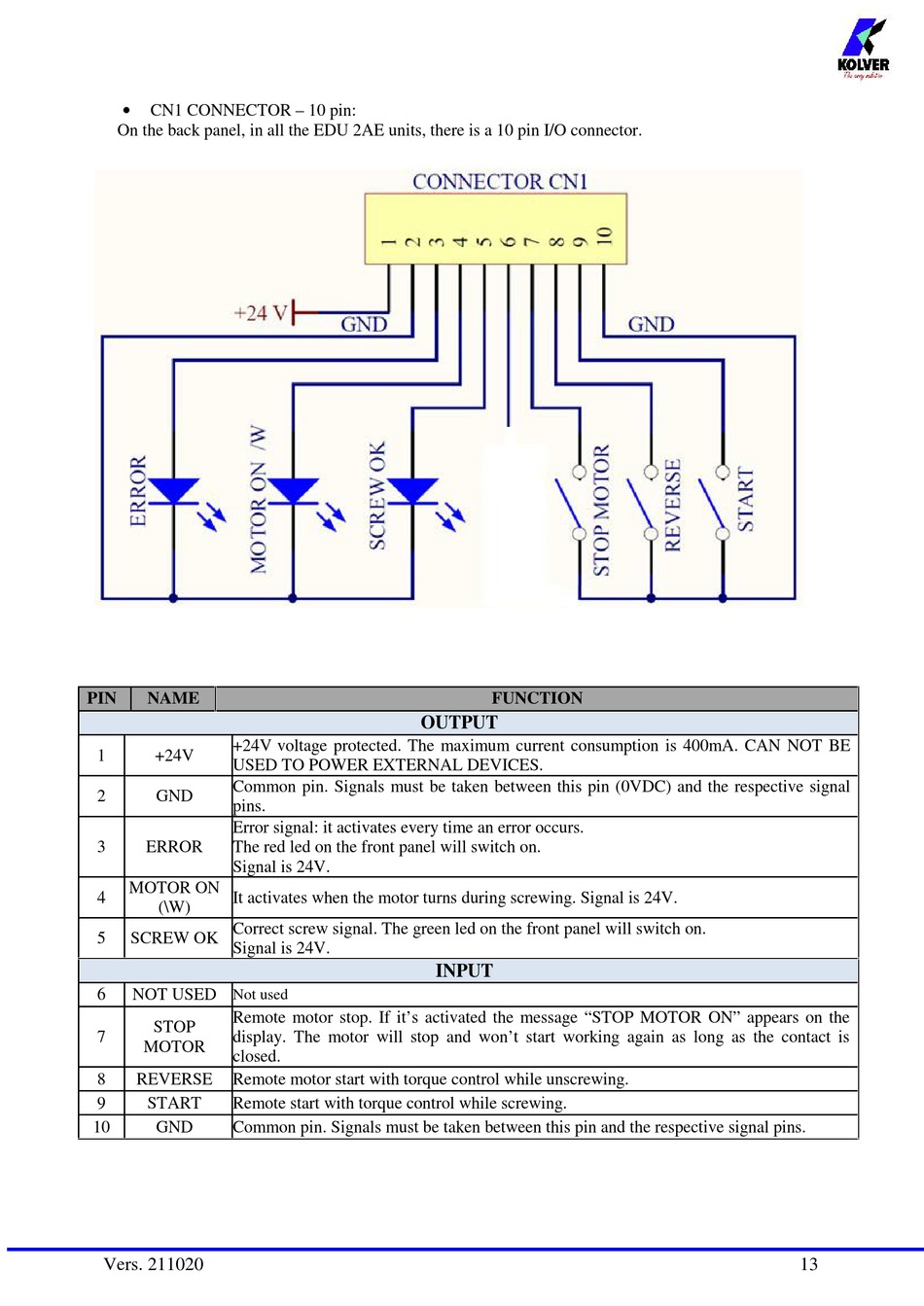

CN1 CONNECTOR – 10 pin:
On the back panel, in all the EDU 2AE units, there is a 10 pin I/O connector.
PIN
NAME
+24V voltage protected. The maximum current consumption is 400mA. CAN NOT BE
1
+24V
USED TO POWER EXTERNAL DEVICES.
Common pin. Signals must be taken between this pin (0VDC) and the respective signal
2
GND
pins.
Error signal: it activates every time an error occurs.
3
ERROR
The red led on the front panel will switch on.
Signal is 24V.
MOTOR ON
4
It activates when the motor turns during screwing. Signal is 24V.
(\W)
Correct screw signal. The green led on the front panel will switch on.
5
SCREW OK
Signal is 24V.
6
NOT USED
Not used
Remote motor stop. If it's activated the message "STOP MOTOR ON" appears on the
STOP
7
display. The motor will stop and won't start working again as long as the contact is
MOTOR
closed.
8
REVERSE
Remote motor start with torque control while unscrewing.
9
START
Remote start with torque control while screwing.
10
GND
Common pin. Signals must be taken between this pin and the respective signal pins.
