B.2.2 Specifications
The adapter must be installed properly to achieve the designed function. Generally, the installation
must be done under the guidance of our certified and qualified engineers.
Note: Do not install the adpater with the power on.


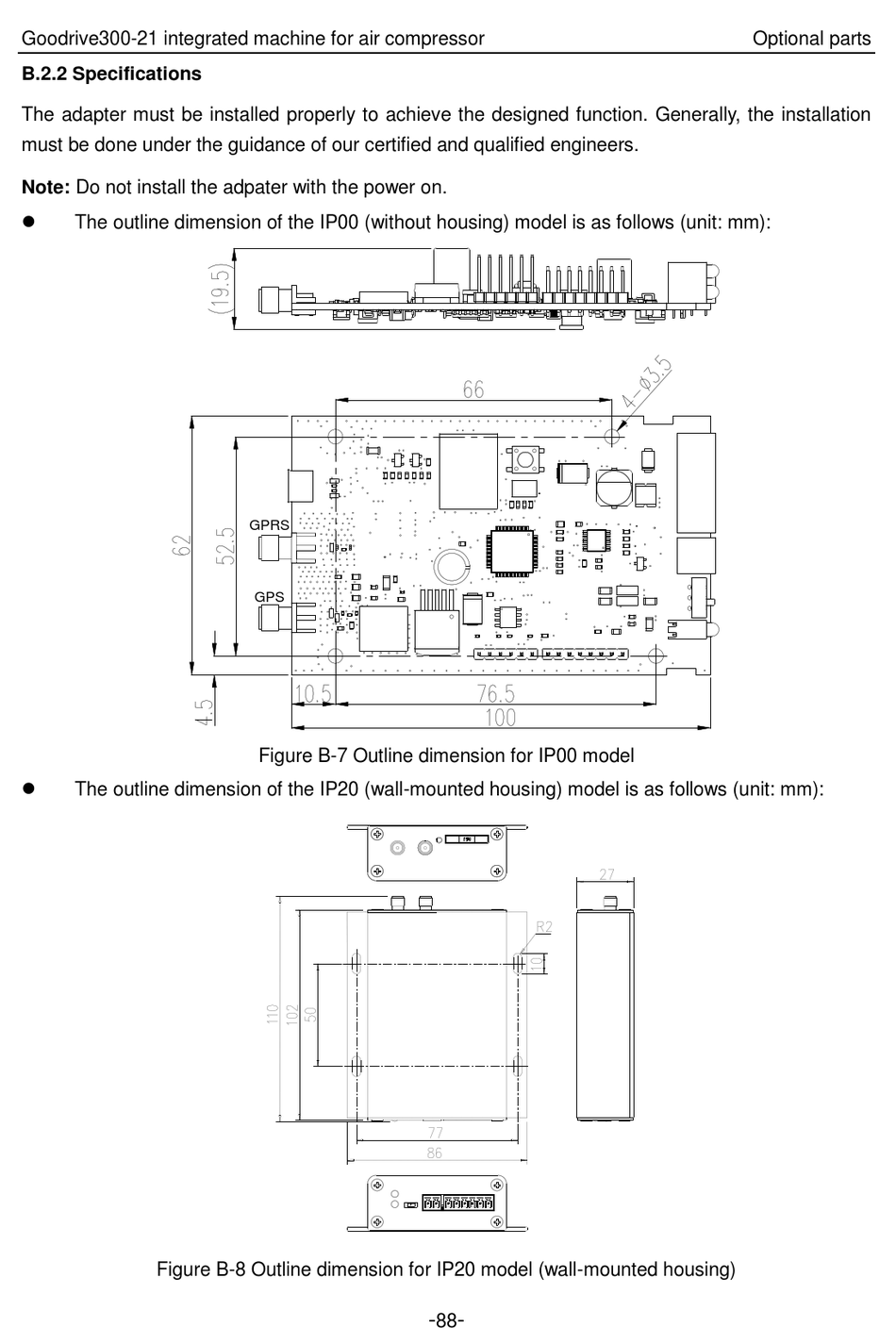

The outline dimension of the IP00 (without housing) model is as follows (unit: mm):

The outline dimension of the IP20 (wall-mounted housing) model is as follows (unit: mm):
Figure B-8 Outline dimension for IP20 model (wall-mounted housing)
GPRS
GPS
Figure B-7 Outline dimension for IP00 model
- -
88
Optional parts
