Goodrive300-21 integrated machine for air compressor
B.4.4 Floor wiring process
With an optional pedestal added at the bottom, the device can be mounted on the floor instead of a
wall.
Control cable
Connection cable of
optional parts
Note: If the optional parts are not installed on the pedestal, the cable length may be inappropriate.
Users can make cables based on actual conditions.
B.5 TC070A touch screen
B.5.1 Product specifications
Category
Hardware
category
The cable goes through the
through-hole on the left and
right side to the back of
pedestal
Main motor cooling
fan cable

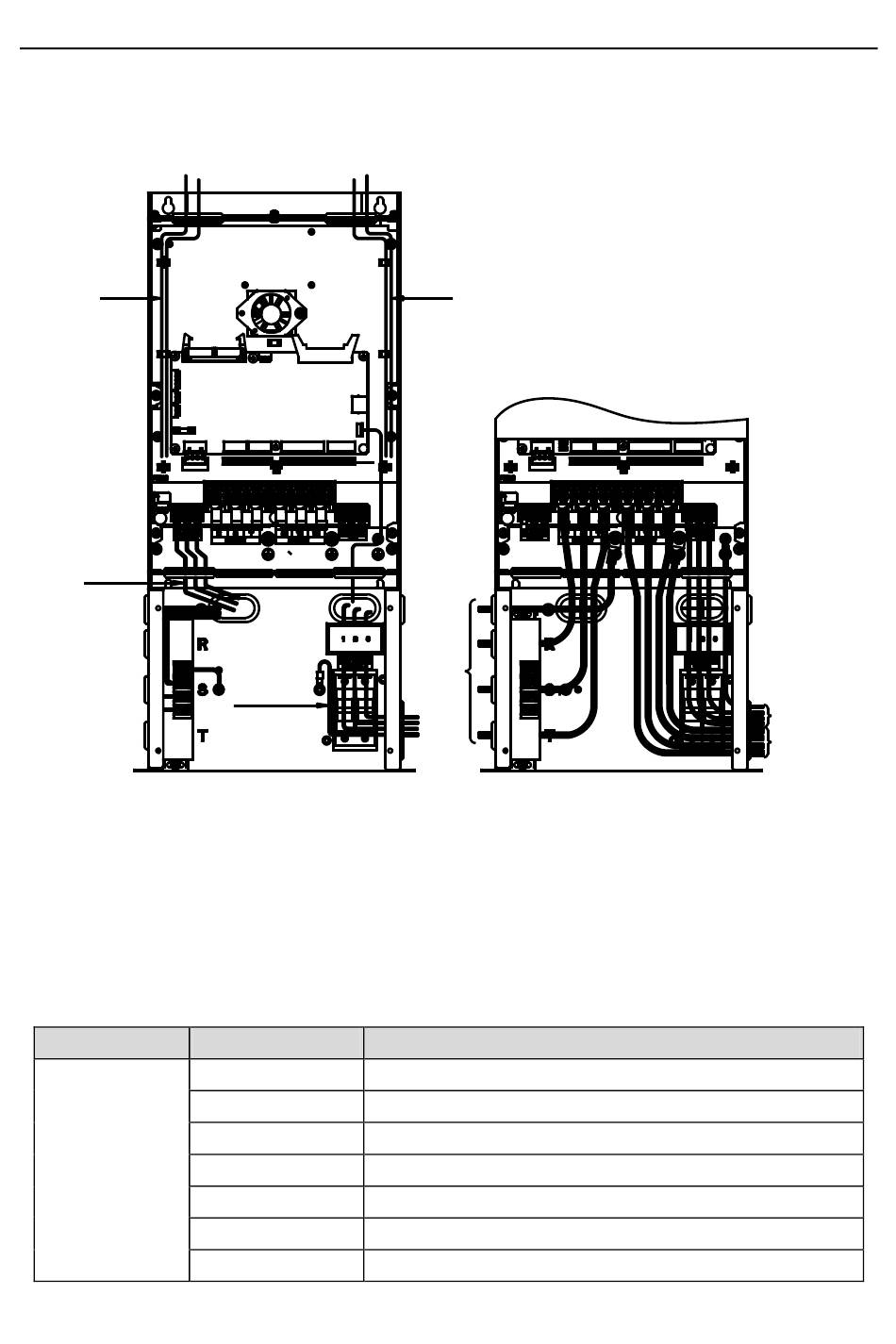

Figure B-14 Wiring diagram of control circuit and main circuit
Table B-1 Product specifications
Item
Display screen
Resolution
Color
Brightness
Backlight
LCD lifetime
Touch screen
Control cable
AC power cable
7" 16:9 TFT LCD screen
800×480
24 bits
360 cd/m²
LED
50000 hours
4-wire industrial resistance touch screen
- -
93
Specifications
Optional parts
Fan cable
Main motor cable
