Goodrive300-21 integrated machine for air compressor
IoT module interface
B.5.3 Wiring description
In order to drive and manage the air compressor better, use the provided RS485 communication
cable, of which one end is connected to the touch screen power supply port and DB9 serial port and
the other is connected to the inverter control board terminal (CN 7).
Input voltage
220/110VAC
Note:
 The touch screen is provided with a non-shielded RS485 communication cable. If a shielded
cable is required, please order separately.
 For details about the touch screen use, please see Touch Screen HMI User Manual.
USB Type A
USB Slave
MicroUSB
FLink expansion module
Expansion
module slot
Emergency stop
signal wiring
Pressure sensor
PT100 tempreture
interface 24V
sensor interface
4-20mA
GD300-21 control board

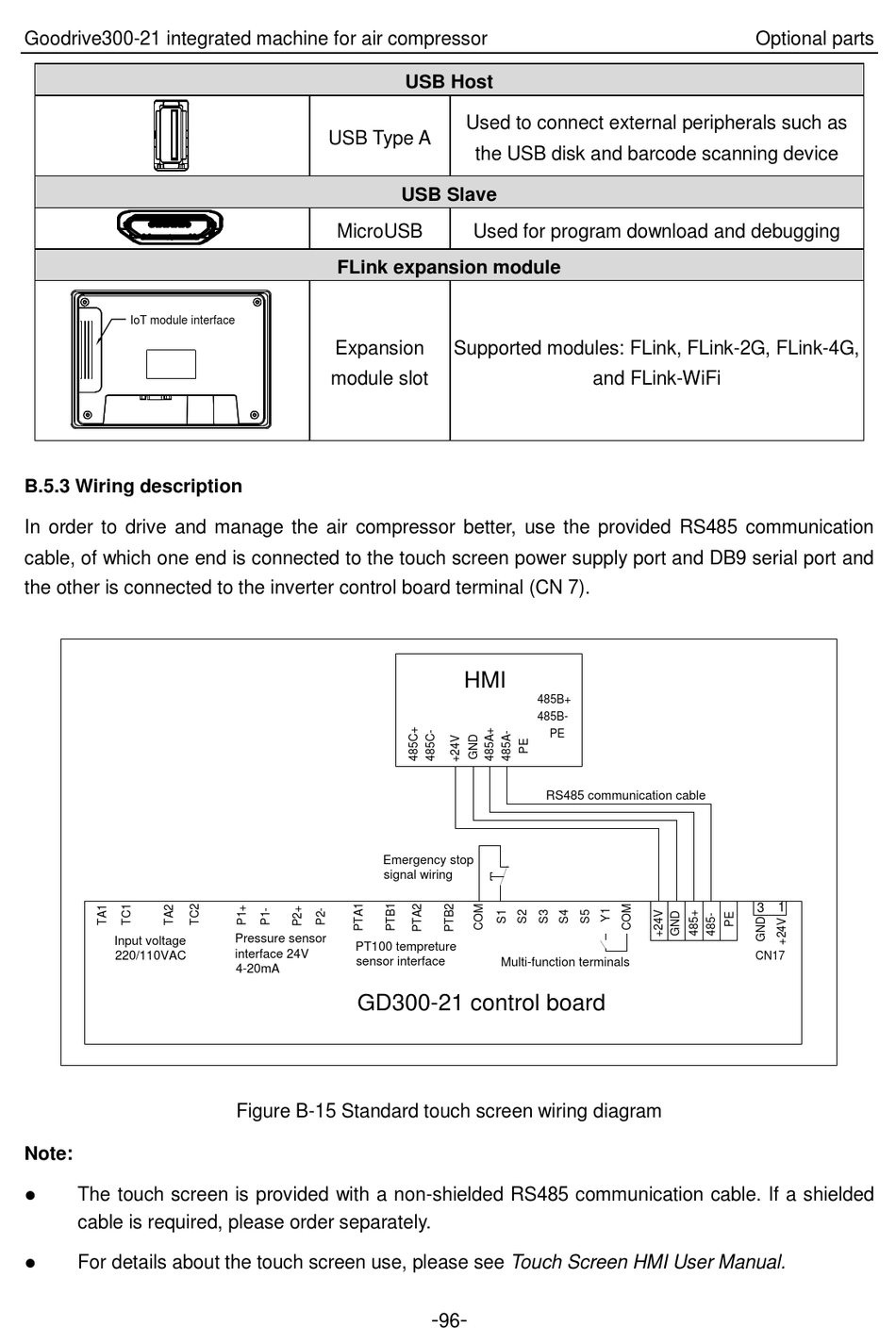

Figure B-15 Standard touch screen wiring diagram
USB Host
Used to connect external peripherals such as
the USB disk and barcode scanning device
Used for program download and debugging
Supported modules: FLink, FLink-2G, FLink-4G,
HMI
485B+
485B-
PE
RS485 communication cable
Multi-function terminals
- -
96
Optional parts
and FLink-WiFi
3 1
CN17
