B.1.3 Fuse pedestal installation
The fuse pedestal must be installed according to the following procedures, otherwise any wiring
attempt would fail.
Step 1: Connect the cable to the bottom of the two pedestals respectively. The yellow cable (cable
mark is FU-2) should connected to the left side while the green cable (cable mark is FU-4)
should be connected to the right side.
Step 2: Yellow cable goes through the through-hole on the left side and green cable goes through the
through-hole on the right side.
Step 3: Put the fuse pedestal into the installation stand and fix the fuse pedestal with M4 pan head
screw.
Step 4: Mount the fuse into the fuse pedestal.
Step 5: Fuse pedestal installation is completed.
1
METER connection
terminal of integrated
machine
METER
UA UB UC
to the control board of
integrated machine
TA2,TC2

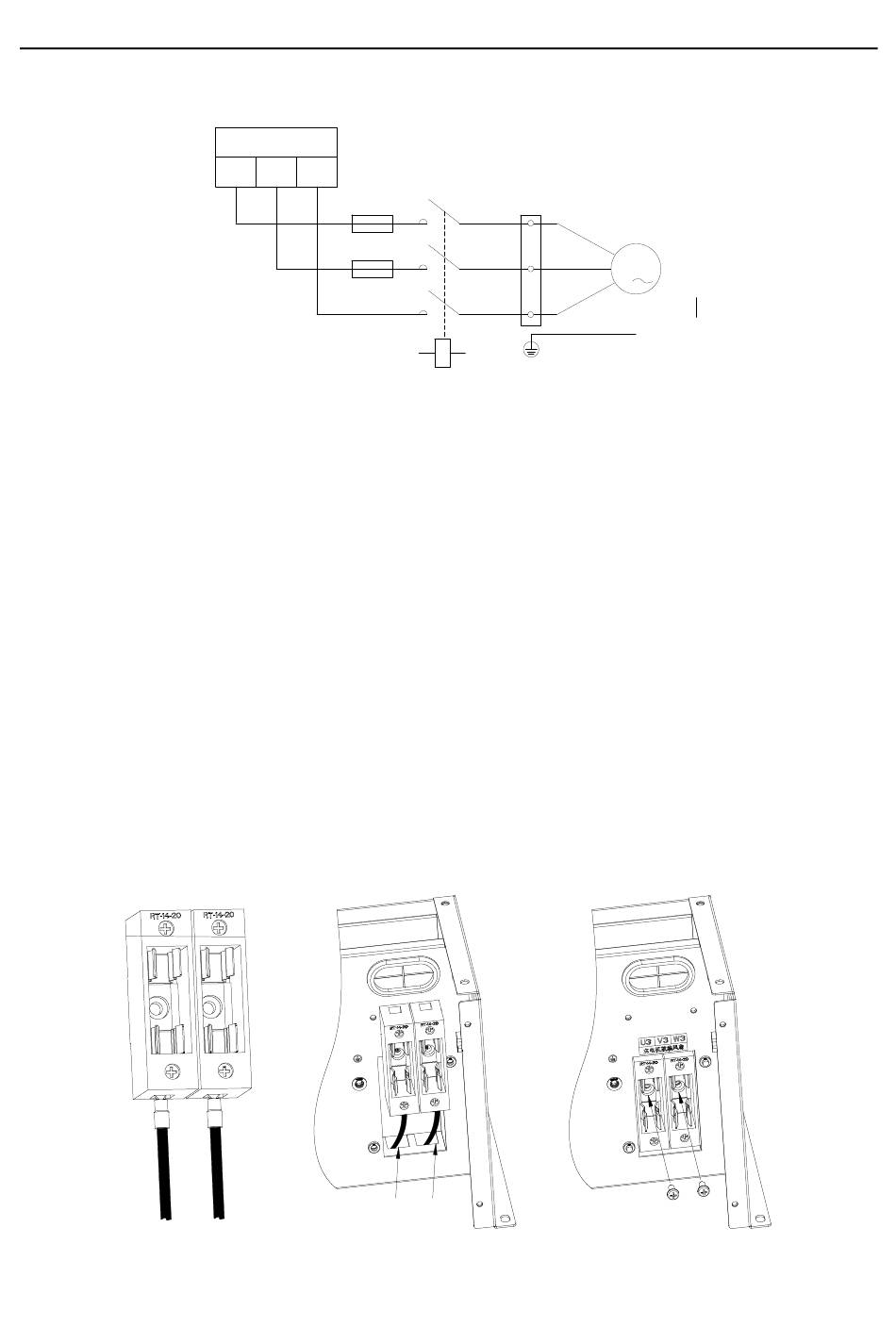

Figure B-1 Electrical diagram of contactor component
Yellow cable Green cable
U3, V3, W3
conversion terminal
(FU-2) (FU-4)
2
- -
82
M
3
Cooling fan of the
main motor
3
Optional parts
