Goodrive300-21 integrated machine for air compressor
The panel of GD300-21 series air compressor integrated machine carries three LED indicators (fault,
running, power). The position and display state of the indicators are illustrated as below:
Display state of indicators
Power indicator
(green)
Running indicator
(green)
Fault indicator
(read)

3 Instruction for panel display

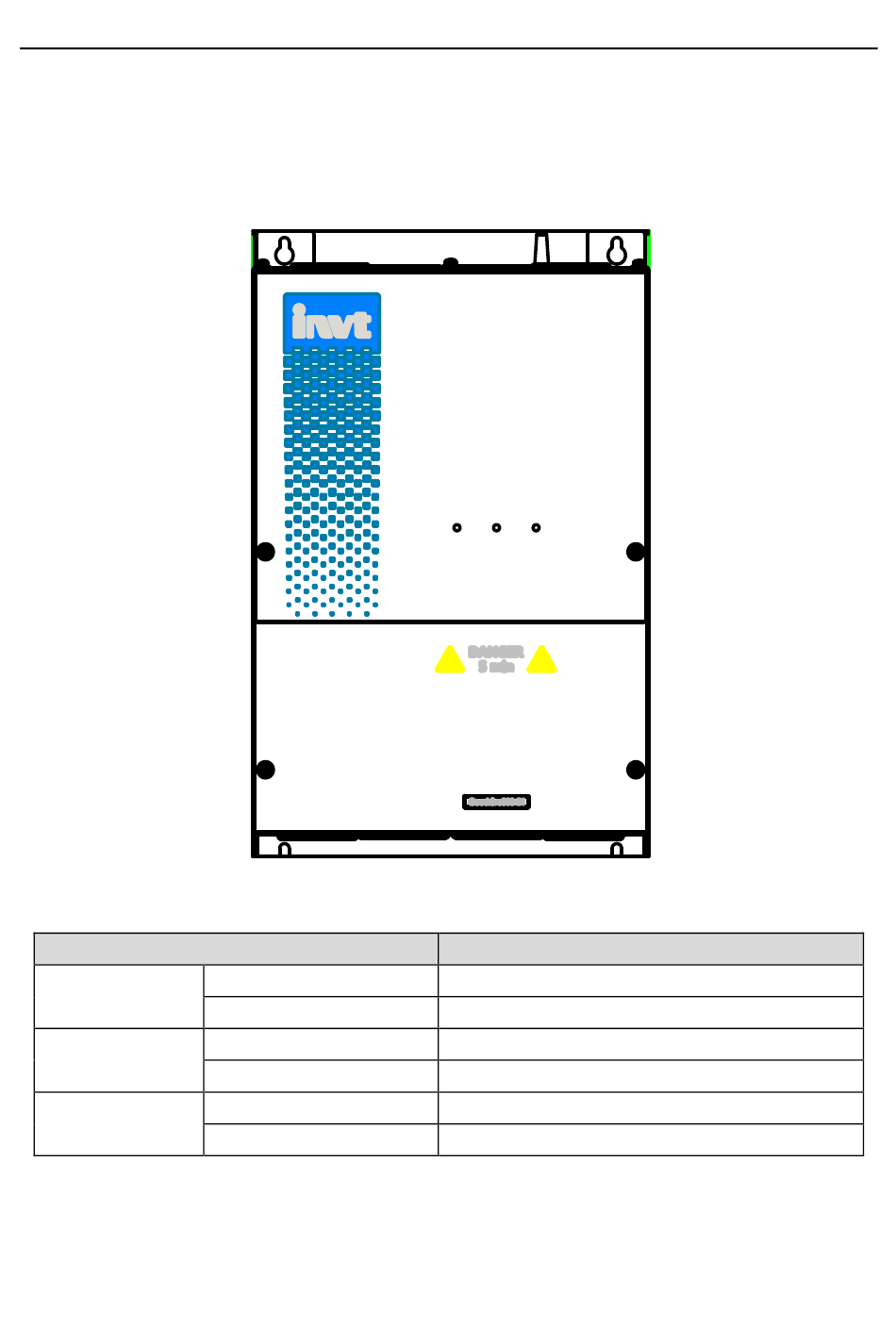

Figure 3-1 Diagram of indicator position
ON
Blinking
ON
OFF
ON
OFF
Power
Run
Fault
State instruction
Bus voltage is normal
Bus voltage is abnormal
Run
Stop
Fault
Normal running
- -
11
Instruction for panel display
