Goodrive300-21 integrated machine for air compressor


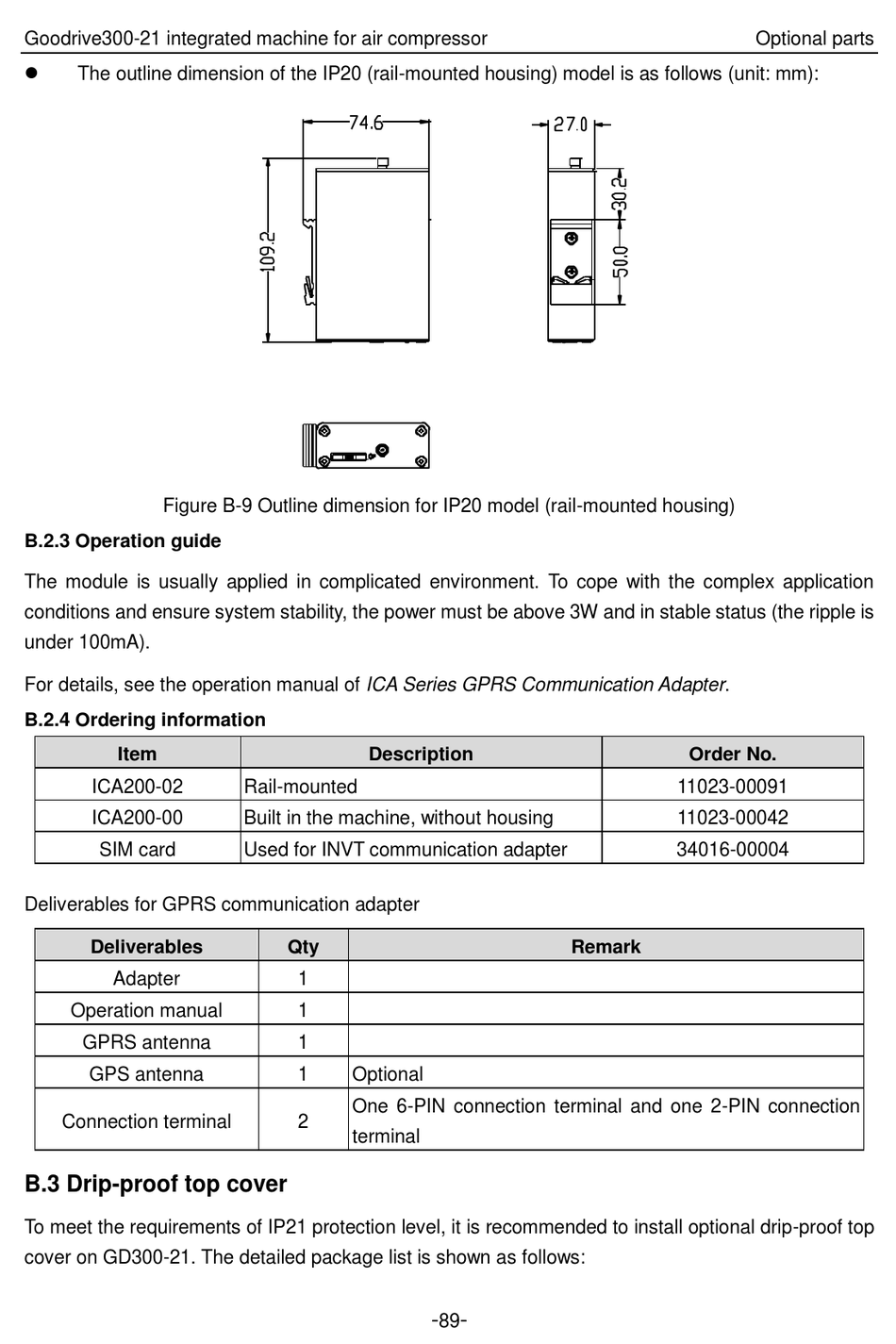

The outline dimension of the IP20 (rail-mounted housing) model is as follows (unit: mm):
Figure B-9 Outline dimension for IP20 model (rail-mounted housing)
B.2.3 Operation guide
The module is usually applied in complicated environment. To cope with the complex application
conditions and ensure system stability, the power must be above 3W and in stable status (the ripple is
under 100mA).
For details, see the operation manual of ICA Series GPRS Communication Adapter.
B.2.4 Ordering information
Item
ICA200-02
ICA200-00
SIM card
Deliverables for GPRS communication adapter
Deliverables
Adapter
Operation manual
GPRS antenna
GPS antenna
Connection terminal
B.3 Drip-proof top cover
To meet the requirements of IP21 protection level, it is recommended to install optional drip-proof top
cover on GD300-21. The detailed package list is shown as follows:
外形尺寸及导轨卡扣安装尺寸
Description
Rail-mounted
Built in the machine, without housing
Used for INVT communication adapter
Qty
1
1
1
1 Optional
One 6-PIN connection terminal and one 2-PIN connection
2
terminal
Remark
- -
89
Optional parts
Order No.
11023-00091
11023-00042
34016-00004
