Goodrive300-21 integrated machine for air compressor

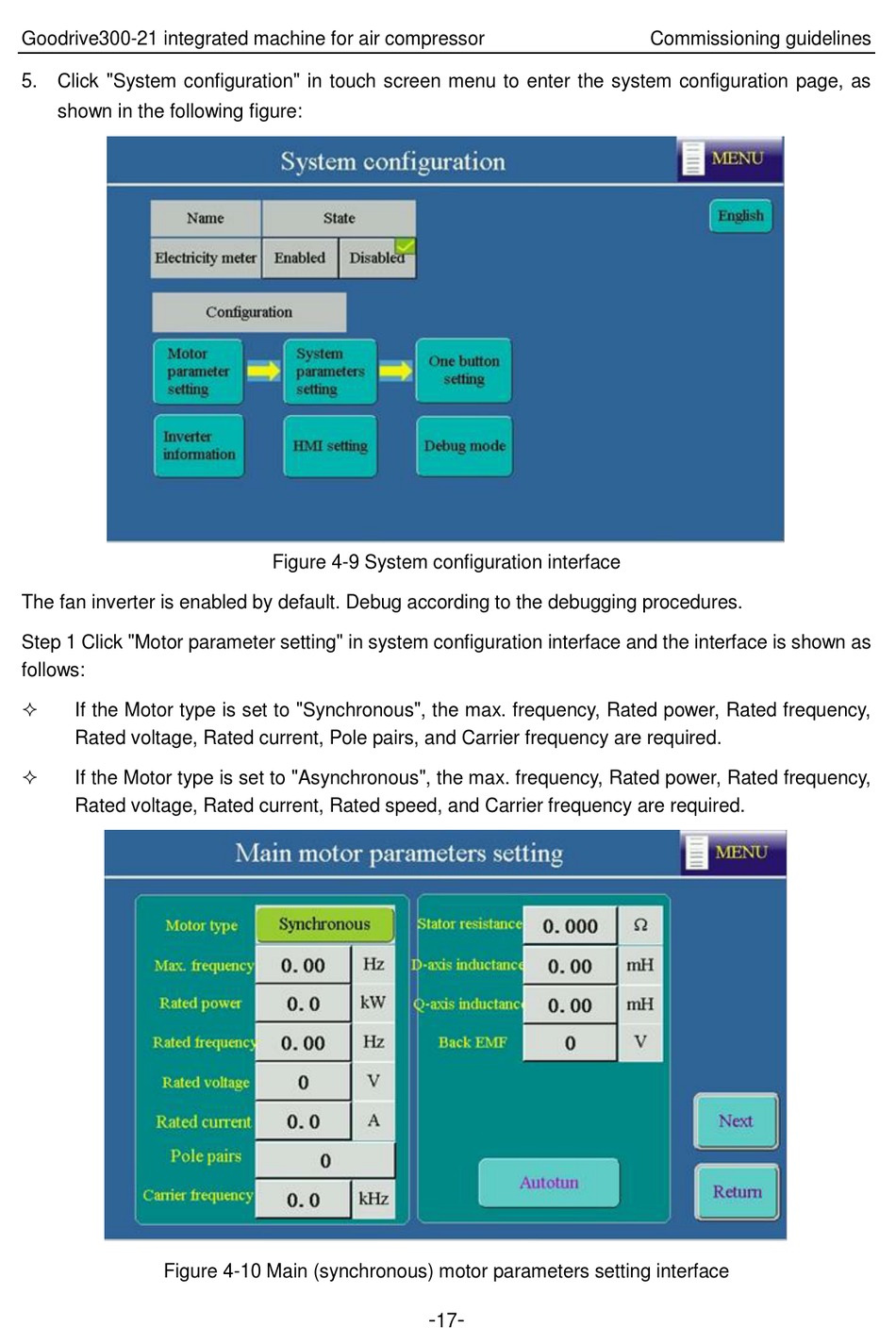

5. Click "System configuration" in touch screen menu to enter the system configuration page, as
shown in the following figure:
The fan inverter is enabled by default. Debug according to the debugging procedures.
Step 1 Click "Motor parameter setting" in system configuration interface and the interface is shown as
follows:

If the Motor type is set to "Synchronous", the max. frequency, Rated power, Rated frequency,
Rated voltage, Rated current, Pole pairs, and Carrier frequency are required.

If the Motor type is set to "Asynchronous", the max. frequency, Rated power, Rated frequency,
Rated voltage, Rated current, Rated speed, and Carrier frequency are required.
Figure 4-10 Main (synchronous) motor parameters setting interface
Figure 4-9 System configuration interface
-
17
-
Commissioning guidelines
