INVT Goodrive300-21 Series Operation Manual page 22

Goodrive300-21 integrated machine for air compressor Commissioning guidelines

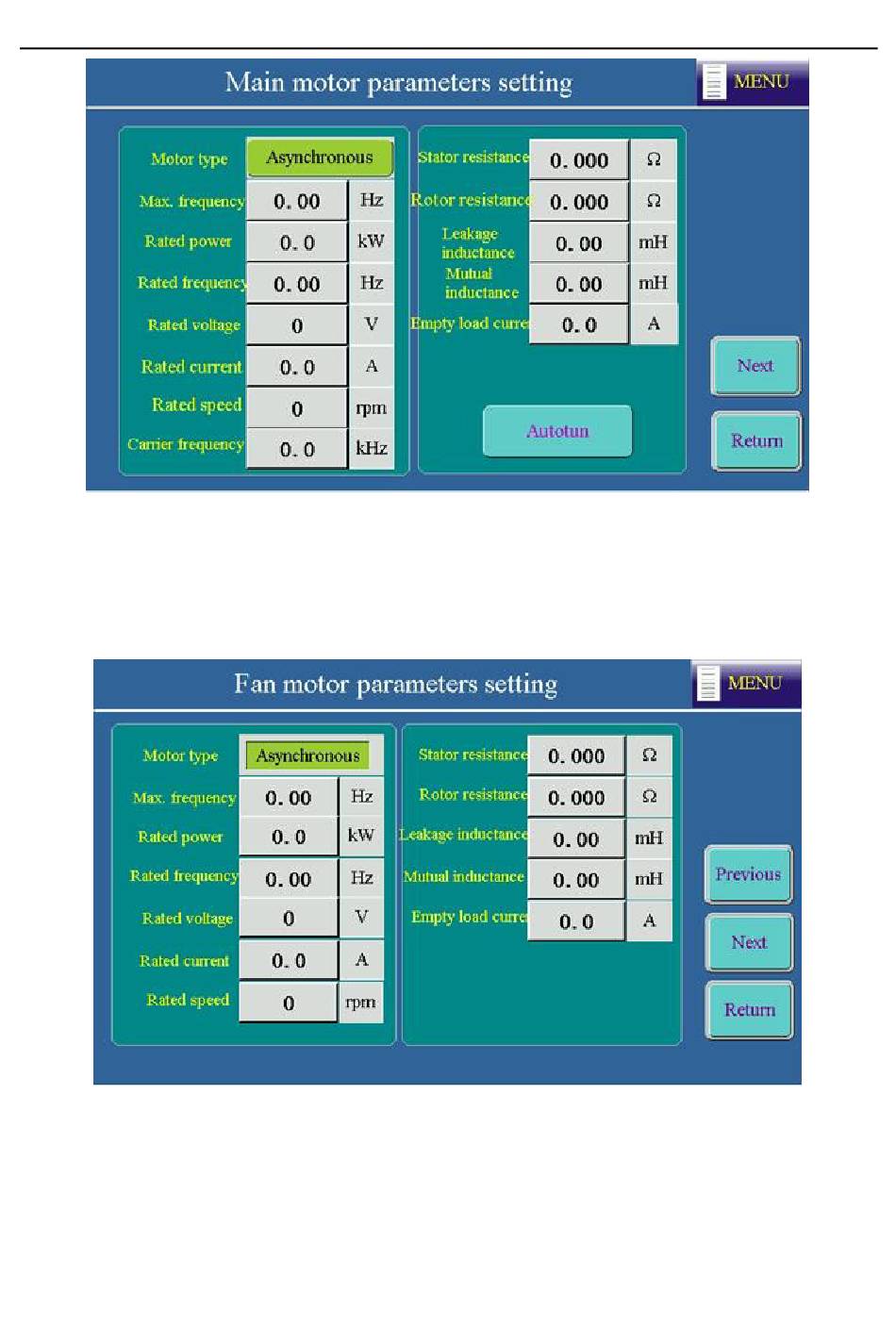

Figure 4-11 Main (asynchronous) motor parameters setting interface
Step 2 After setting motor parameters according to actual motor nameplate parameters, click
"Autotun" and after recognition completes, click "Next" and set fan motor parameter (Max. frequency,
Rated power, Rated frequency, Rated voltage, Rated current and Rated rotation speed are required.)
Figure 4-12 Fan motor parameters setting interface
Step 3 In system configuration interface, click "One button setting" button and the system will
complete relevant parameter configuration automatically.
For details about parameter configuration, see the following table:
- -
18
