4. Install the four standoffs on the Z-column as shown in the following image.

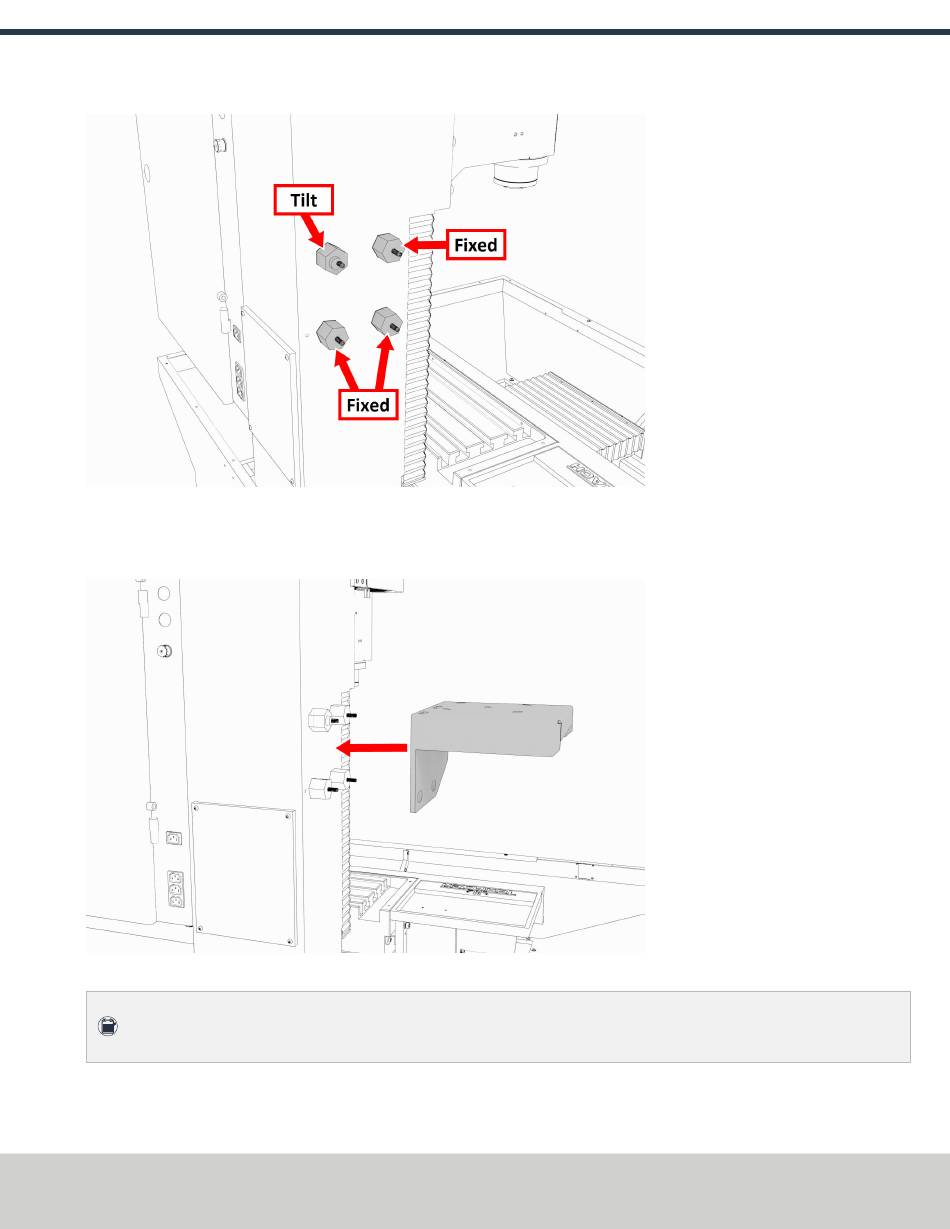

Figure 3: Four standoffs installed on the Z-column.
5. Securely tighten the standoffs on the Z-column with a 1-1/2 in. adjustable wrench.
6. Put the ATC mounting bracket on the standoff's threaded studs as shown in the following image.
Figure 4: ATC mounting bracket moving on to the four standoffs.
Note: Verify that the tilt standoff's eccentric cam fits into the large slot on the ATC mounting
bracket.
