TECHNICAL DOCUMENT

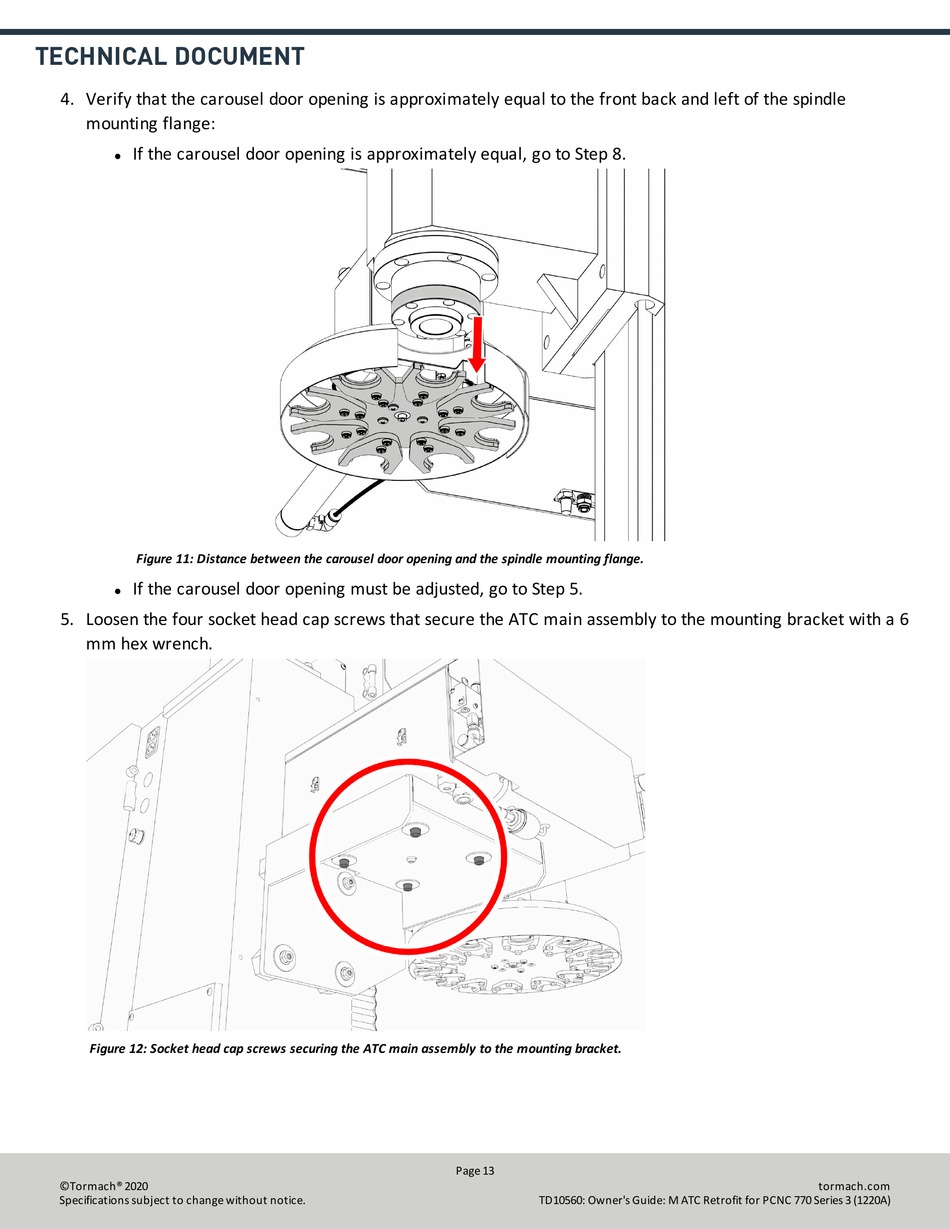

4. Verify that the carousel door opening is approximately equal to the front back and left of the spindle
mounting flange:
If the carousel door opening is approximately equal, go to Step 8.
l
Figure 11: Distance between the carousel door opening and the spindle mounting flange.
If the carousel door opening must be adjusted, go to Step 5.
l
5. Loosen the four socket head cap screws that secure the ATC main assembly to the mounting bracket with a 6
mm hex wrench.
Figure 12: Socket head cap screws securing the ATC main assembly to the mounting bracket.
