16. Identify wires 503 and 504 on the ATC Legacy Adapter Cable. Then, route them through the wire troughs
toward the DC-BUS board.

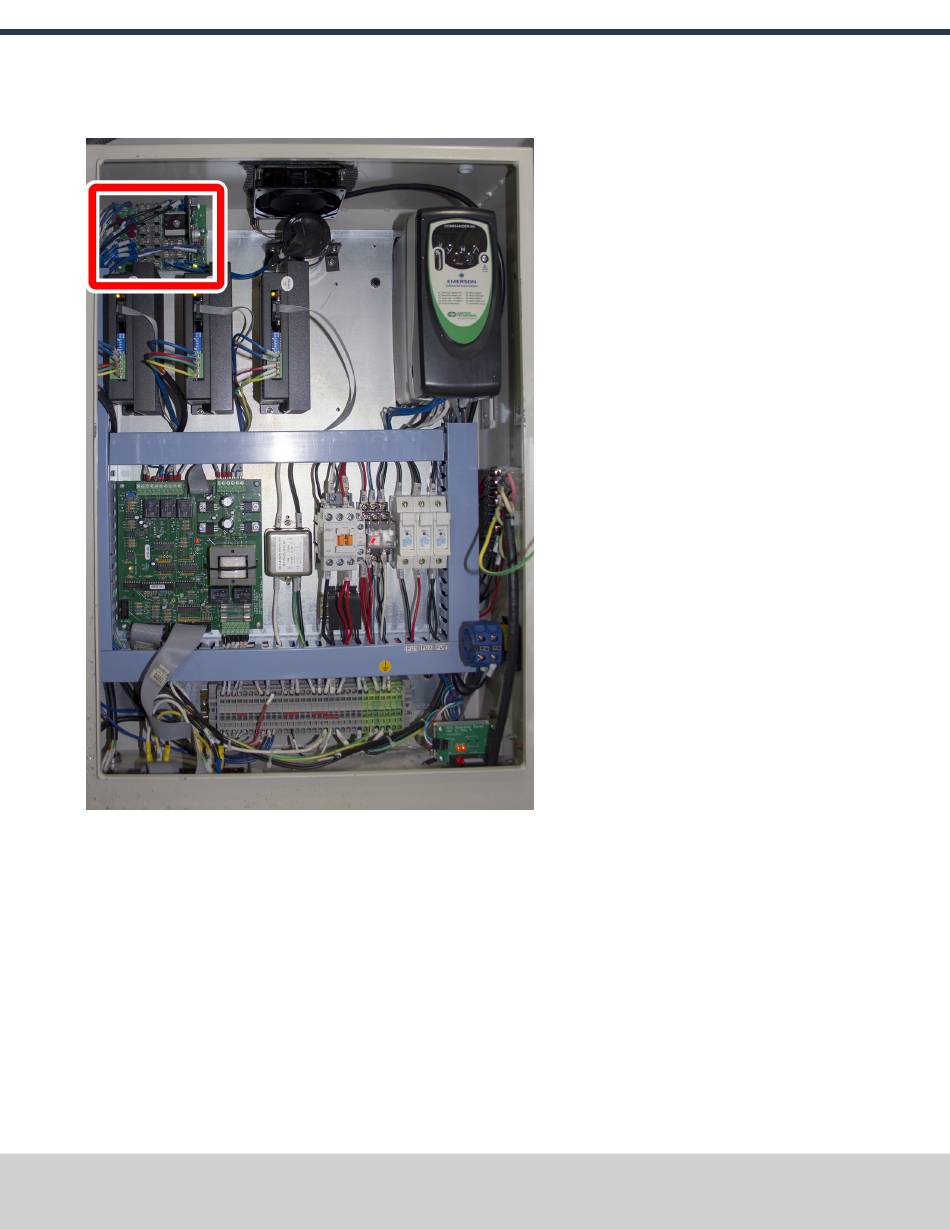

Figure 24: DC-BUS board in the electrical cabinet.
17. Connect wire 503 to the TC+ terminal on the DC-BUS board.
18. Connect wire 504 to the TC- terminal on the DC-BUS board.
