4. Load a tool into the spindle:
a. Push and hold the open button on the side of the ATC.

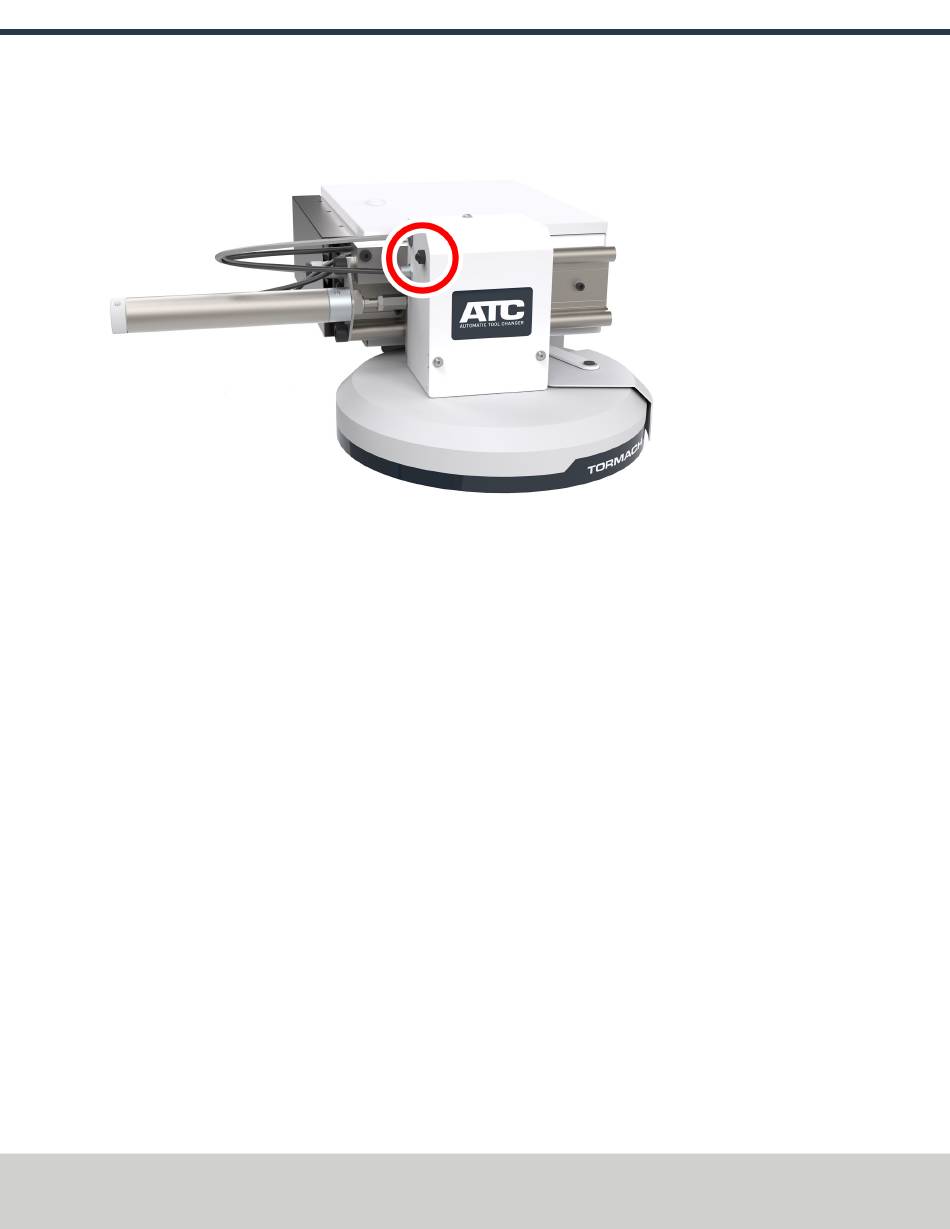

Figure 28: open button on the side of the ATC.
The opens.
b. Load a tool into the spindle.
c. Release the button.
The closes.
5. From the PathPilot interface, on the Main tab, in the RPM DRO field, type 1000. Then select the Enter key.
6. Select FWD.
The spindle starts.
