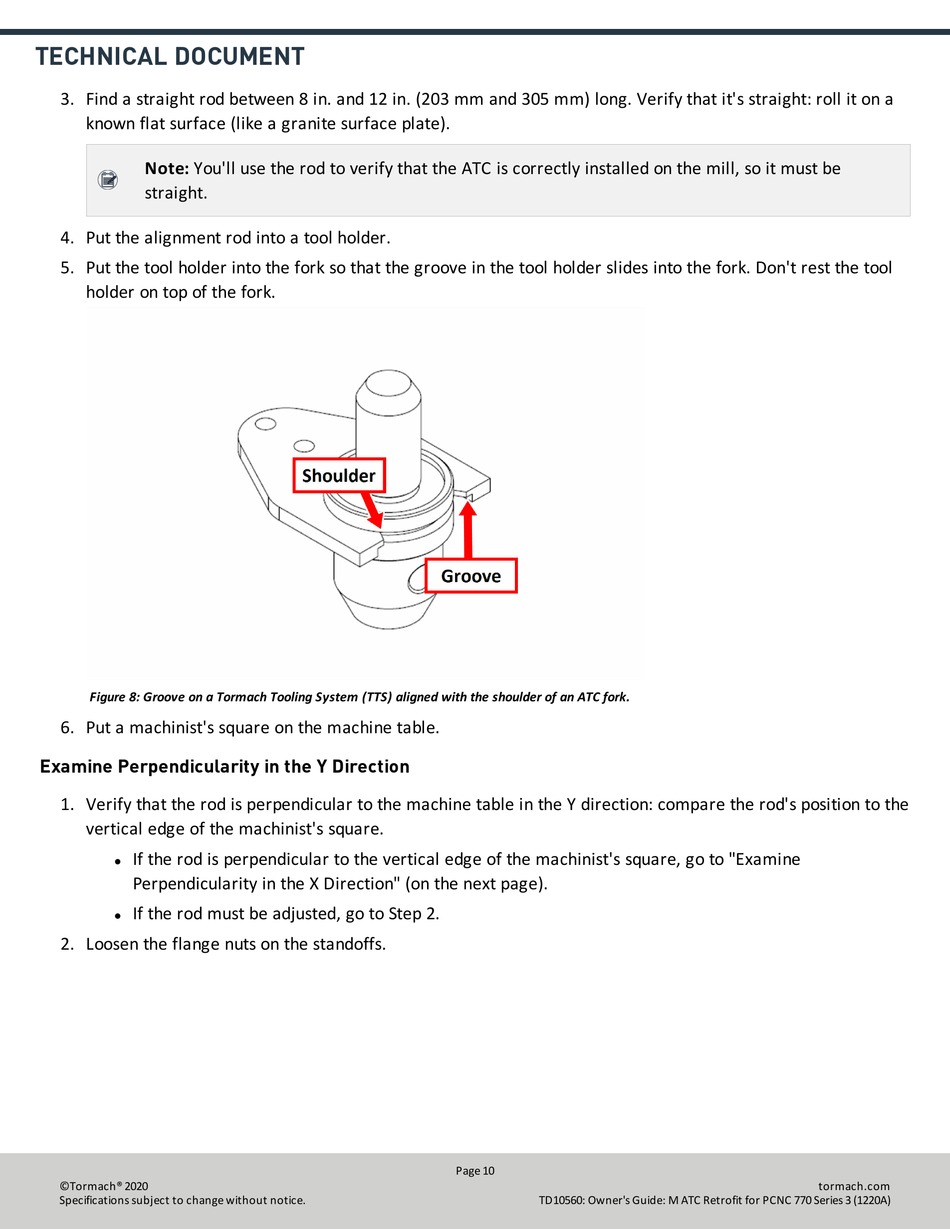

3. Find a straight rod between 8 in. and 12 in. (203 mm and 305 mm) long. Verify that it's straight: roll it on a
known flat surface (like a granite surface plate).
Note: You'll use the rod to verify that the ATC is correctly installed on the mill, so it must be
straight.
4. Put the alignment rod into a tool holder.
5. Put the tool holder into the fork so that the groove in the tool holder slides into the fork. Don't rest the tool
holder on top of the fork.
Figure 8: Groove on a Tormach Tooling System (TTS) aligned with the shoulder of an ATC fork.
6. Put a machinist's square on the machine table.

Examine Perpendicularity in the Y Direction

1. Verify that the rod is perpendicular to the machine table in the Y direction: compare the rod's position to the
vertical edge of the machinist's square.
If the rod is perpendicular to the vertical edge of the machinist's square, go to "Examine
l
Perpendicularity in the X Direction" (on the next page).
If the rod must be adjusted, go to Step 2.
l
2. Loosen the flange nuts on the standoffs.
