Note: If installed, the Power Drawbar button's functionality is replaced by the button on the ATC.

Manually Load a Tool Into the Tool Tray

1. From the PathPilot interface, on the ATC tab, select Go To Tray Load Position.

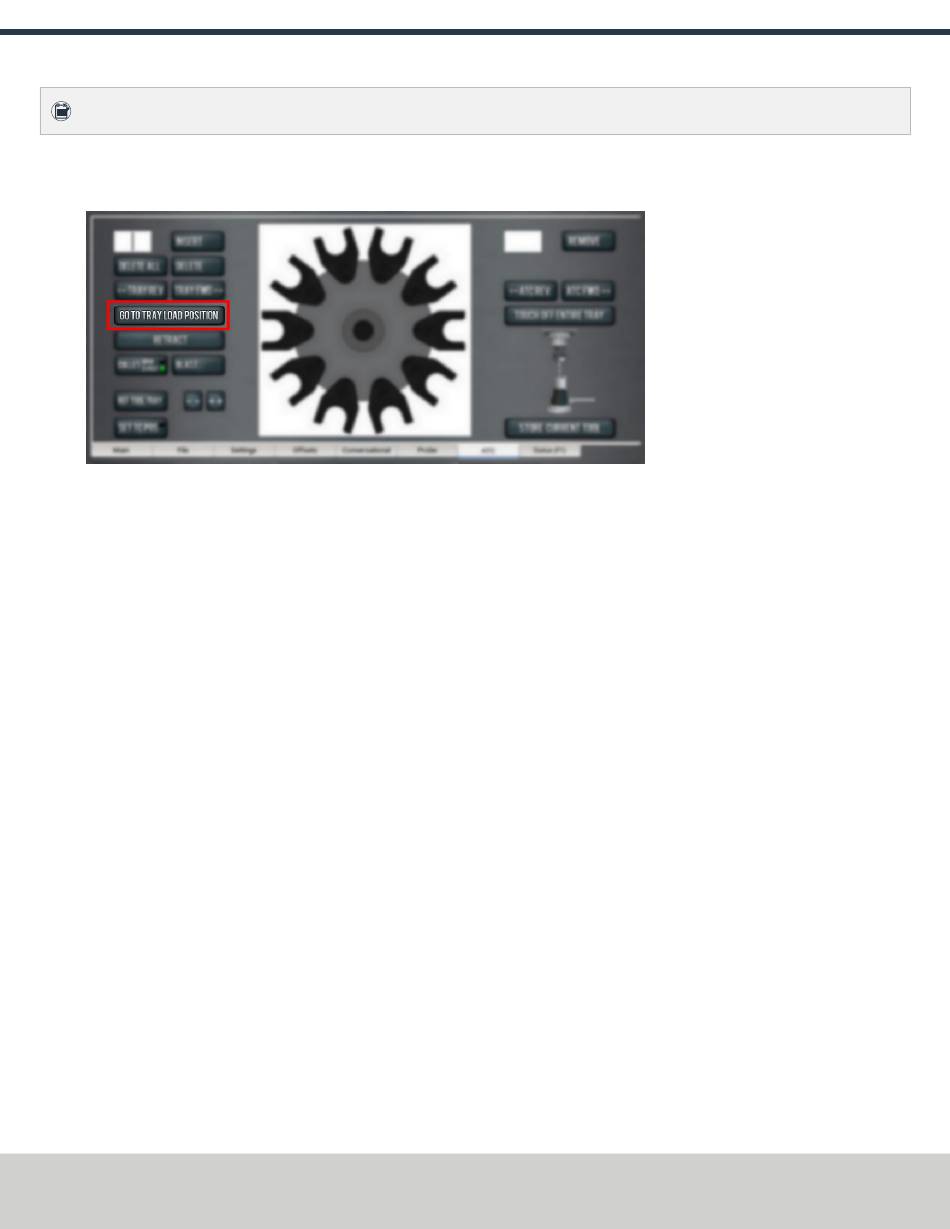

Figure 6: Go to Tray Load Position button on the ATC tab.
The spindle head moves up and the ATC moves into the door open position.
2. Load a tool into an open fork on the tray.
3. From the ATC tab, type the tool number into the Insert DRO field. Then select the Enter key.
4. Select Insert.
The tool is assigned to the exposed tray slot.
5. Select Tray FWD or Tray REV.
The tray moves to the next slot location.
6. Select Retract.
The tray returns to the machining position.

Manually Unload a Tool From the Tool Tray

1. From the PathPilot interface, on the ATC tab, in the Insert DRO field, type the tool number. Then select the
Enter key.
2. Select Go To Tray Load Position.
The spindle head moves up and the ATC moves into the door open position.
