Load A Tool Into The Spindle - Tormach Automatic Tool Changer Owner's Manual

TECHNICAL DOCUMENT
4. From the ATC tab, select ATC FWD or ATC REV.

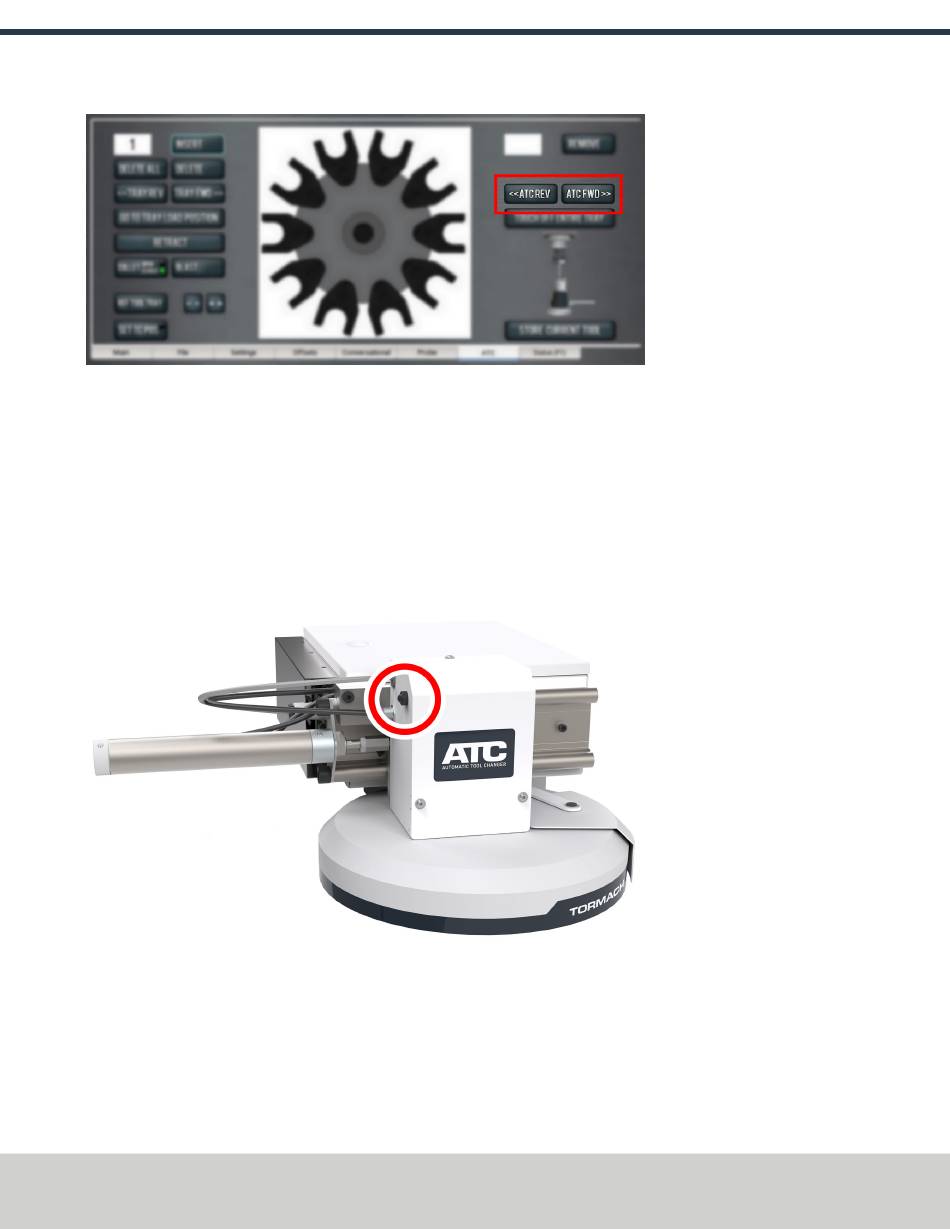

Figure 4: ATC REV and ATC FWD buttons on the ATC tab.
The tray moves to the next location and fetches another tool.
5. Select Retract.
The tray returns to the machining position.

Load a Tool into the Spindle

Load a tool into the spindle:
1. Push and hold the open button on the side of the ATC.
Figure 5: open button on the side of the ATC.
The opens.
2. Load a tool into the spindle.
3. Release the button.
The closes.
