2. Loosen the two socket head cap screws on the linear rails.

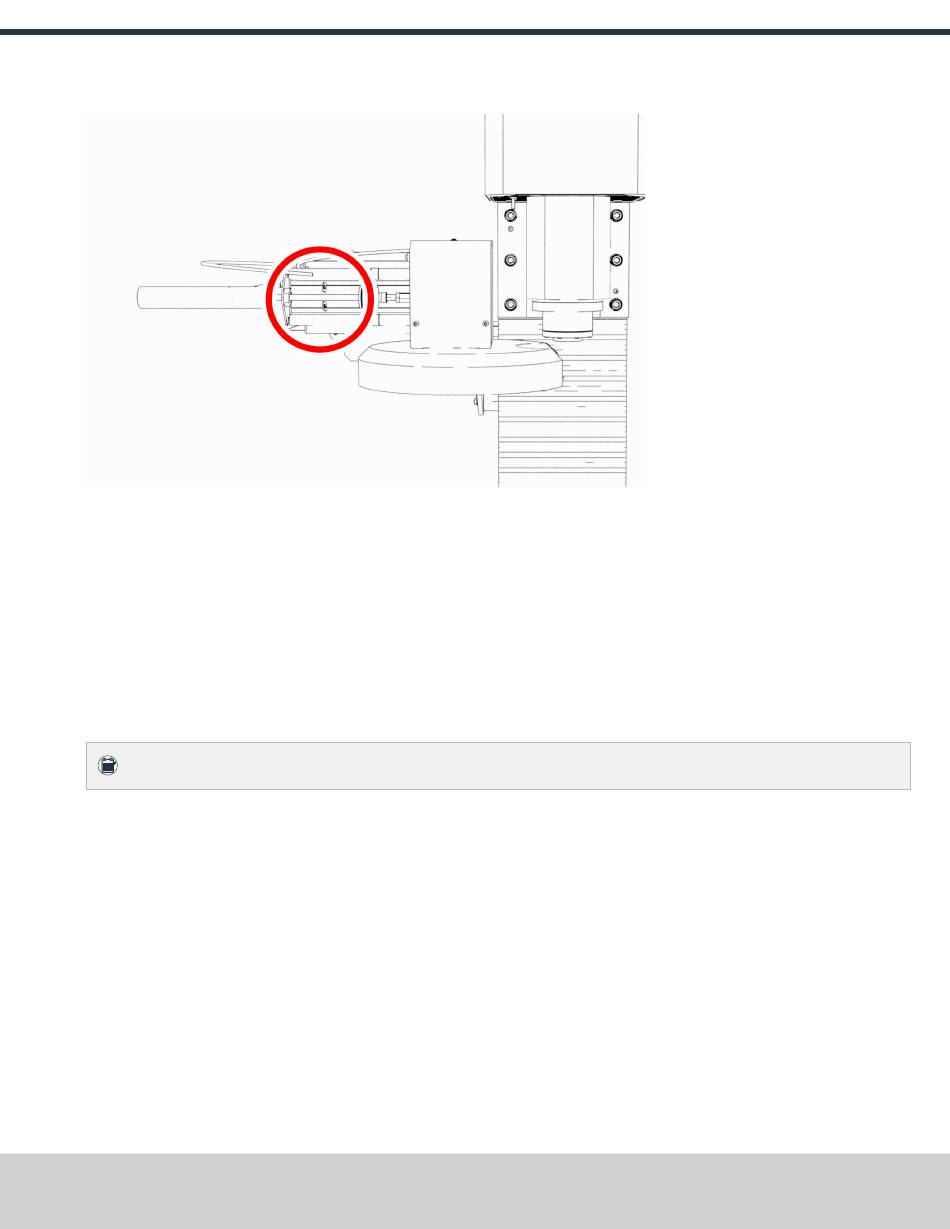

Figure 10: Socket head cap screws on the linear rails.
3. Slowly pivot the linear rails up or down until the rod is perpendicular to the vertical edge of the machinist's
square.
4. Tighten the socket head cap screws.
5. Reexamine the alignment of the ATC in the X direction. If the rod isn't perpendicular to the vertical edge of
the machinist's square, repeat Steps 2 through 5.

Examine the Alignment of the Carousel Door Opening

1. Remove the tool holder from the fork, and set it aside.
Note: You'll need this tool later in the installation procedure to make further alignments.
2. Power on the machine and the PathPilot controller.
a. Turn the Main Disconnect switch to ON on the side of the electrical cabinet.
b. Twist out the Emergency Stop button on the operator panel, which enables movement to the machine
axes and the spindle.
c. Press the Reset button on the operator panel.
d. Bring the machine out of reset and reference it.
3. Verify that the ATC is all the way forward (toward the spindle), and then slowly move the Z-axis down (-Z) to
examine the clearance of the carousel door opening.
