6. Use a Phillips screwdriver to remove the cross-head screw on the VFD, and then remove the VFD faceplate.

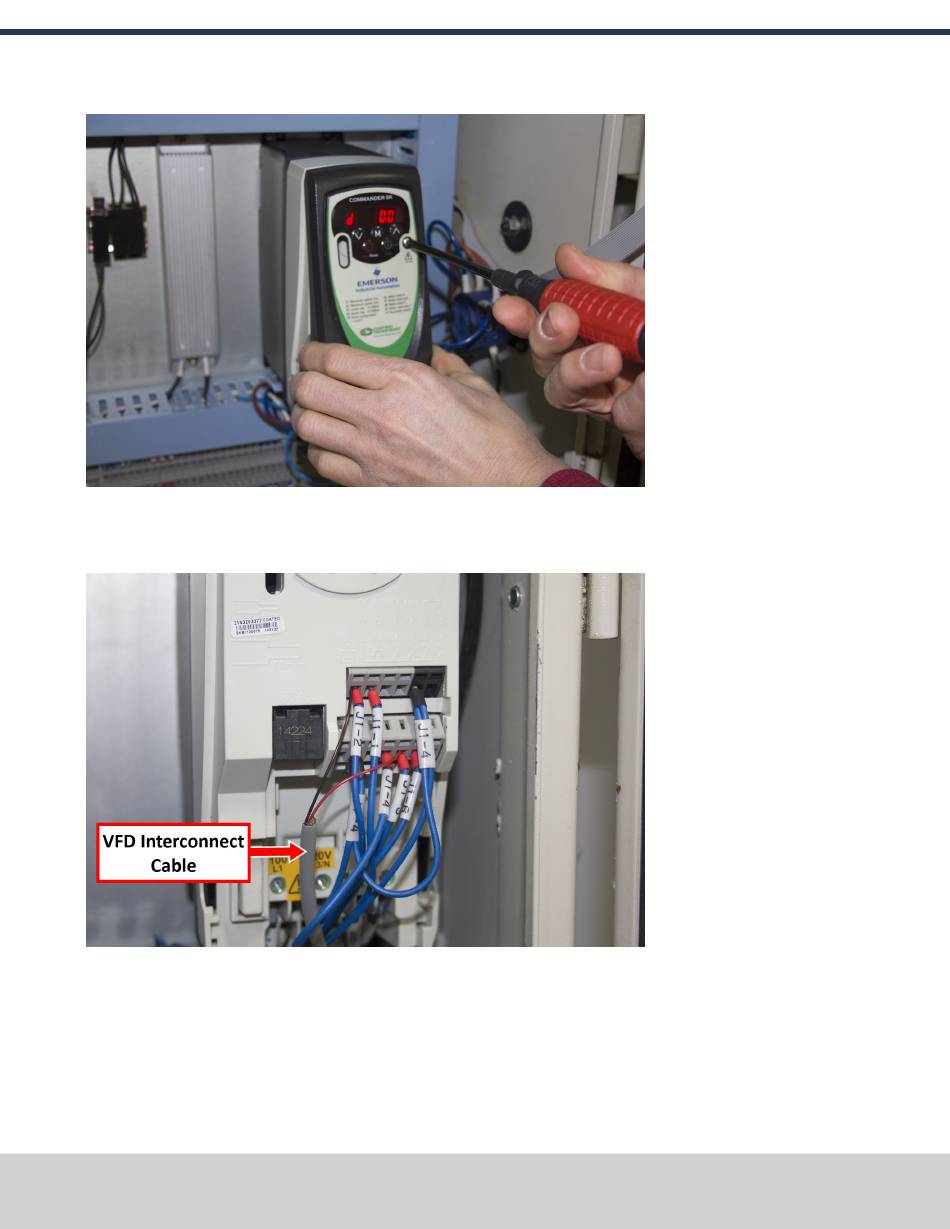

Figure 19: Removing the faceplate from the VFD.
7. If you previously installed the Power Drawbar board, you must remove the VFD interconnect cable. Identify
it on the VFD and remove it. Then, pull the loose cable out of the machine, and discard it.
Figure 20: VFD interconnect cable connected to the VFD.
