14. Identify the green and yellow ground wire on the ATC Legacy Adapter Cable. Then, route it through the wire
troughs toward the ground terminal block.

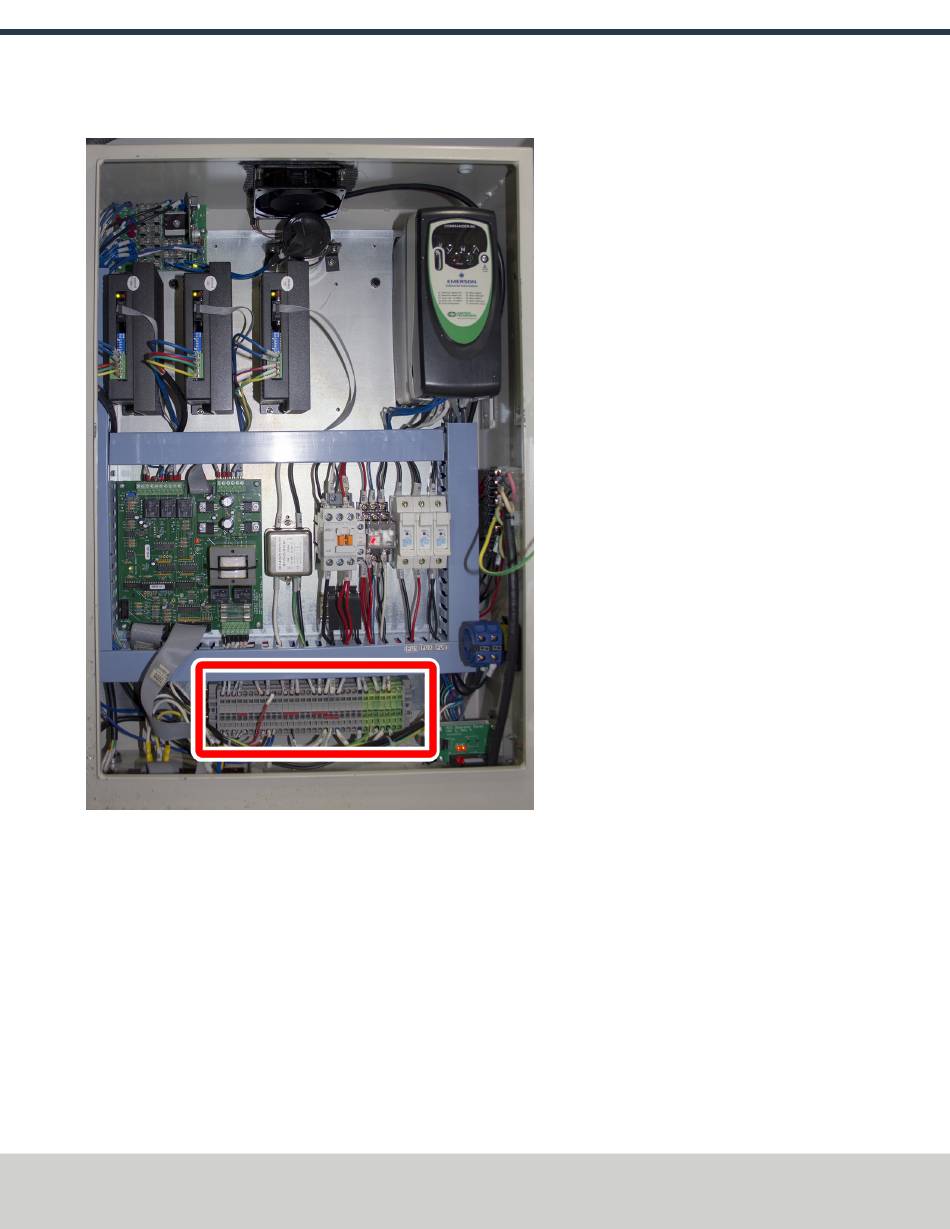

Figure 23: Terminal block in the electrical cabinet.
15. Connect the ground wire in to any open slot on the ground terminal block.
©Tormach® 2020
Specifications subject to change without notice.
Page 23
TD10560: Owner's Guide: M ATC Retrofit for PCNC 770 Series 3 (1220A)
