5. Identify wires T1 and B5 on the ATC Legacy Adapter Cable. Then, route them through the wire troughs
toward the variable frequency drive (VFD).

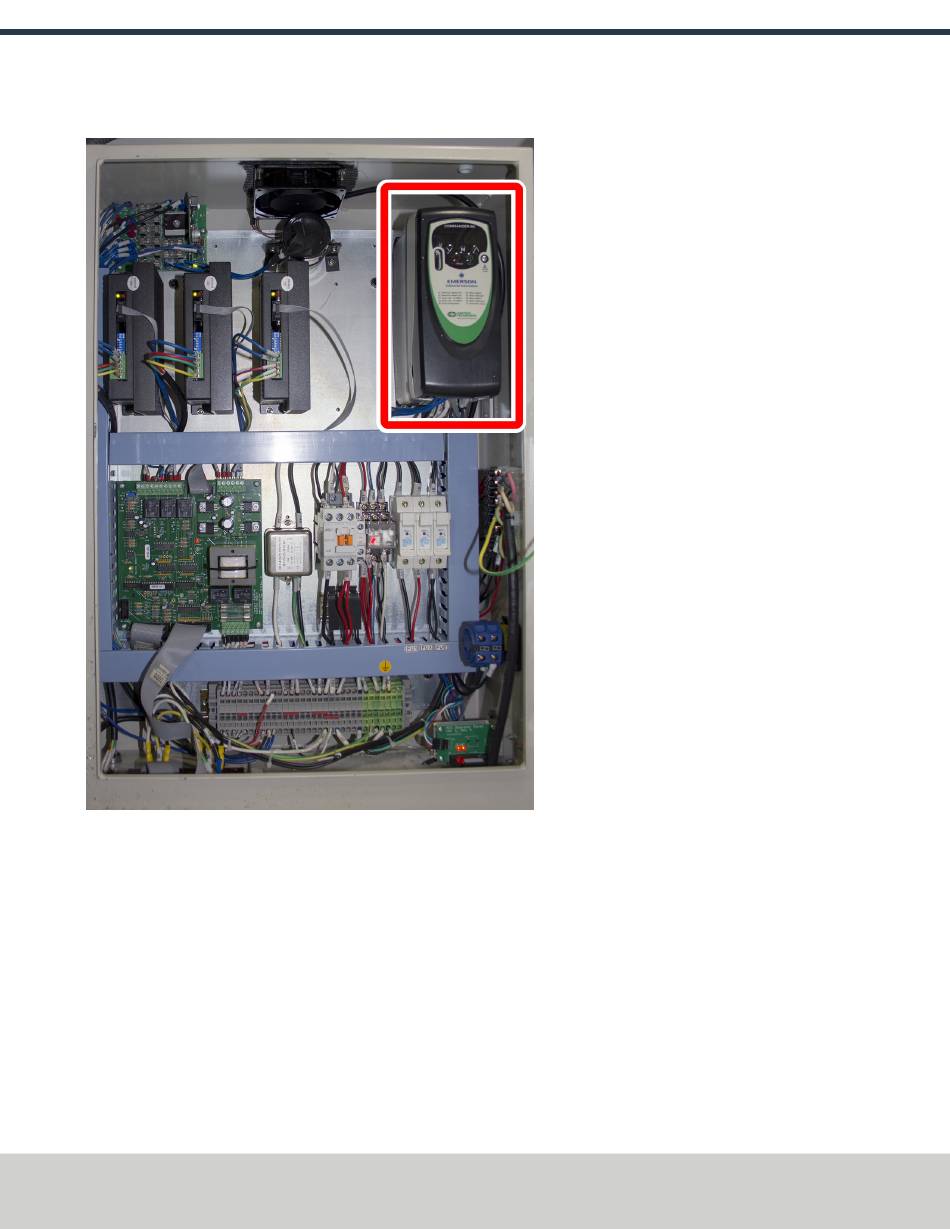

Figure 18: VFD in the electrical cabinet.
Page 19
©Tormach® 2020
tormach.com
Specifications subject to change without notice.
TD10560: Owner's Guide: M ATC Retrofit for PCNC 770 Series 3 (1220A)
