Adjust the Tool Tray Load Position
1. Verify that there's no tool in the spindle.
2. From the PathPilot interface, on the ATC tab, select Ref Tool Tray.

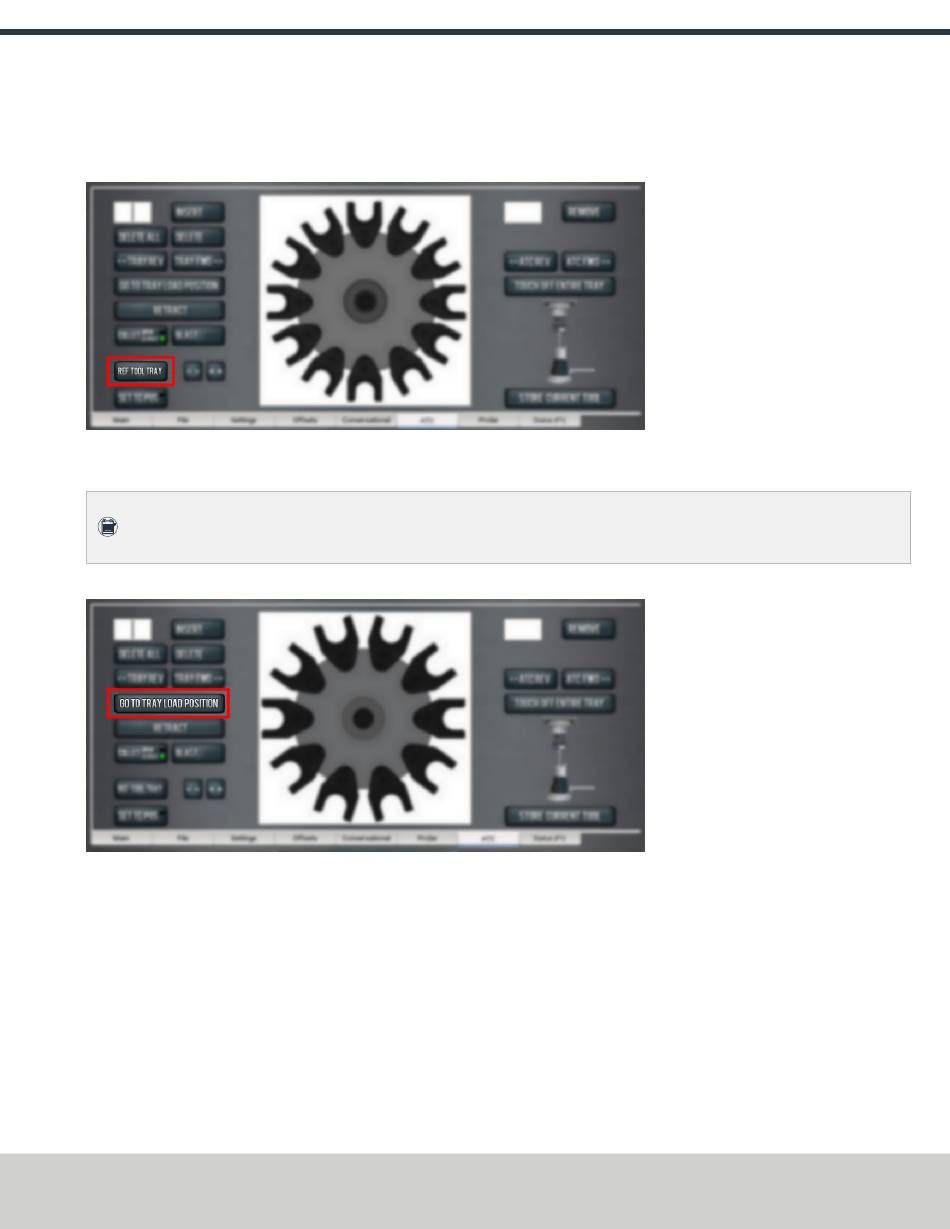

Figure 34: Ref Tool Tray button on the ATC tab.
The tool tray spins.
Note: You're only required to reference the tool tray once, unlike the mill axes' referencing
procedure.
3. Select Go to Tray Load Position.
Figure 35: Go to Tray Load Position button on the ATC tab.
4. When prompted, select OK.
The tool tray moves forward.
5. Put the tool holder with the rod into the fork.
6. From the PathPilot interface, slowly jog the Z-axis down (-Z) to bring the spindle nose toward the tool in the
tool tray.
7. Make sure that the tool's shank is aligned concentrically with the collet in the spindle.
