a. Push in the Emergency Stop button on the operator panel, which removes power to motion control.
b. From the PathPilot interface, select Exit.
c. Turn the Main Disconnect switch to OFF on the side of the electrical cabinet.
2. Open the electrical cabinet door.
3. Locate blue wires 105 and 105A on the terminal block in the electrical cabinet.

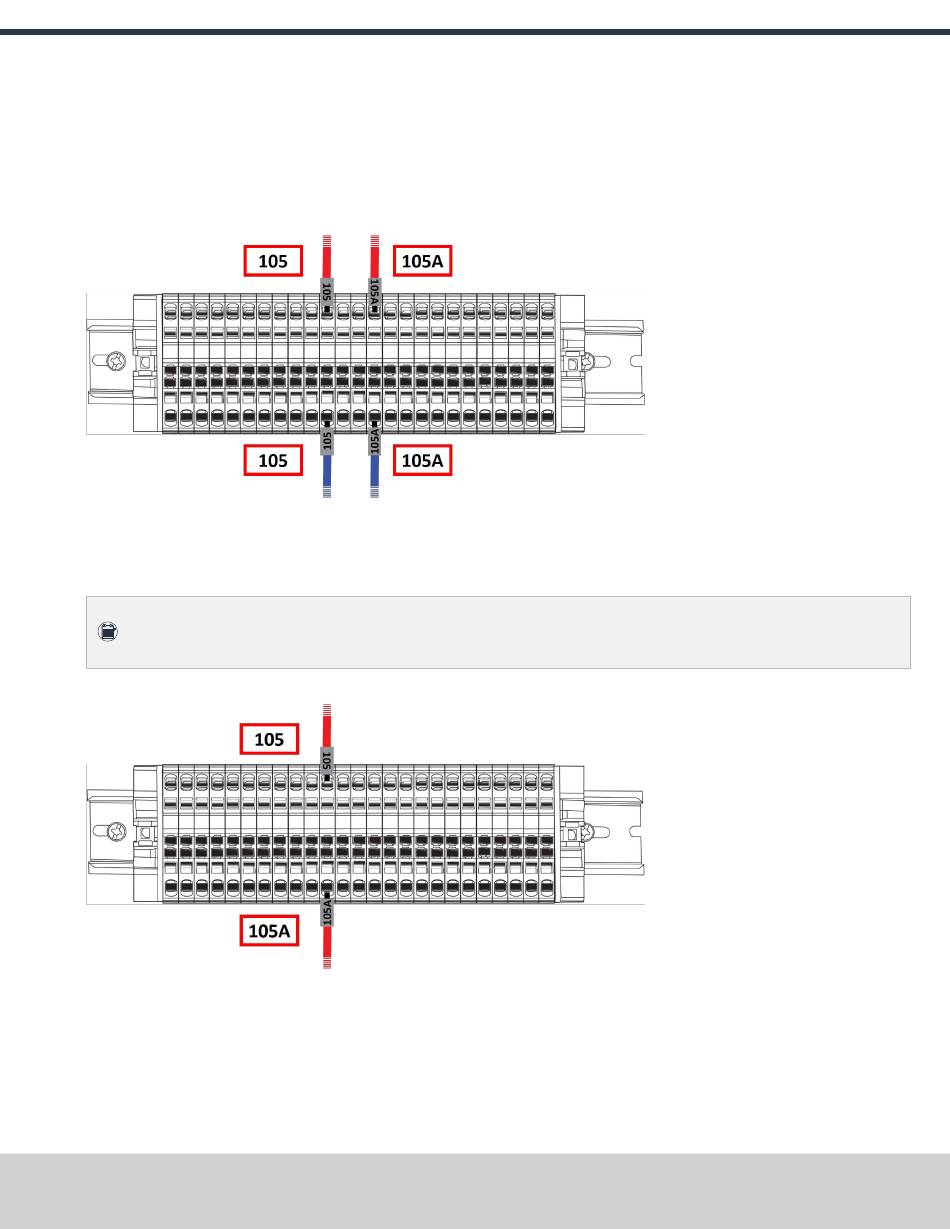

Figure 14: Current wire configuration on the terminal block.
4. Remove blue wires 105 and 105A.
5. Locate red wire 105A on the terminal block. Then, remove it.
Note: During the original procedure to install the Power Drawbar, wire 105 was given a new label,
making it wire 105A.
6. Connect red wire 105A to the slot opposite red wire 105 on the terminal block.
Figure 15: New wire configuration on the terminal block.
