3. Turn the tilt standoff with an adjustable wrench, and slowly pivot the ATC until the rod is perpendicular to
the vertical edge of the machinist's square.

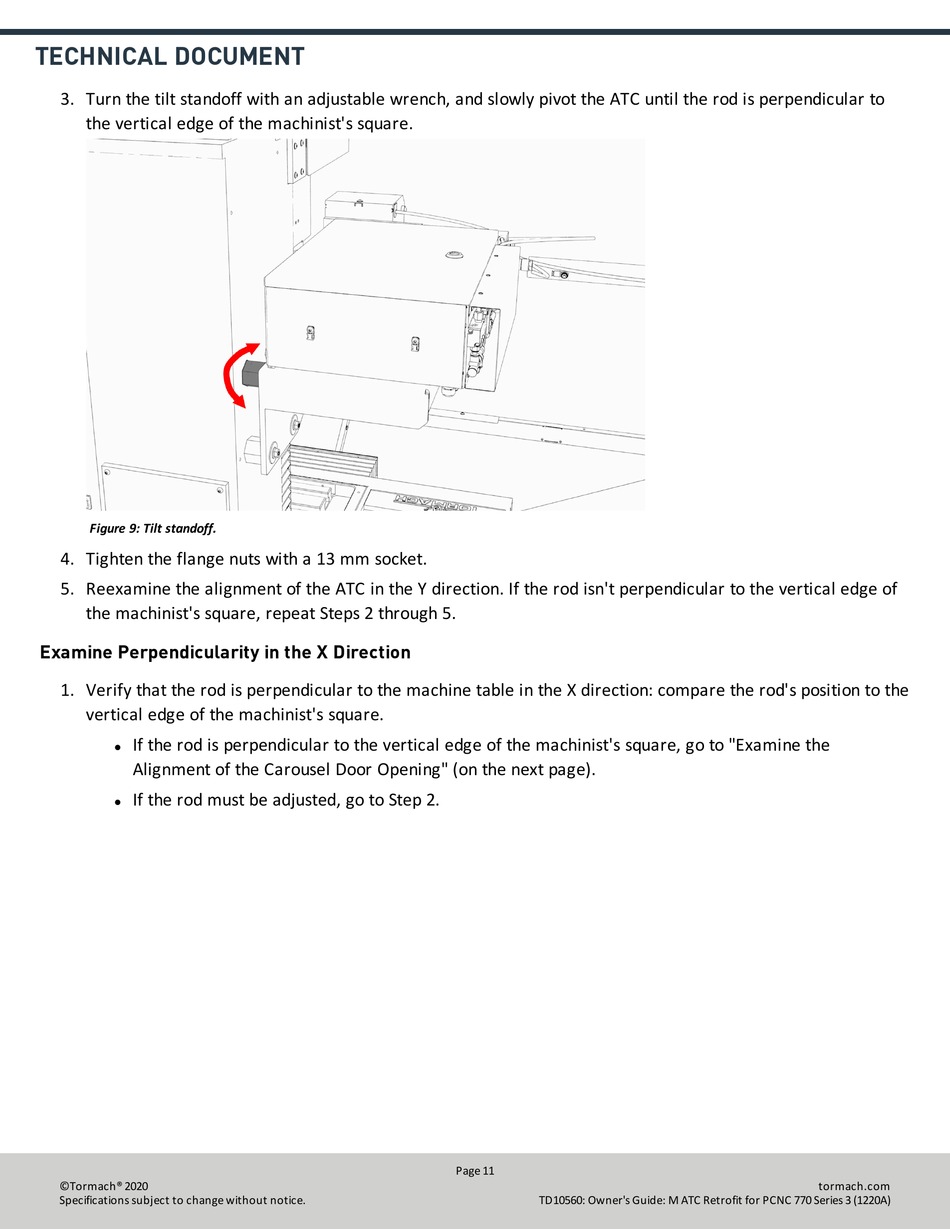

Figure 9: Tilt standoff.
4. Tighten the flange nuts with a 13 mm socket.
5. Reexamine the alignment of the ATC in the Y direction. If the rod isn't perpendicular to the vertical edge of
the machinist's square, repeat Steps 2 through 5.

Examine Perpendicularity in the X Direction

1. Verify that the rod is perpendicular to the machine table in the X direction: compare the rod's position to the
vertical edge of the machinist's square.
If the rod is perpendicular to the vertical edge of the machinist's square, go to "Examine the
l
Alignment of the Carousel Door Opening" (on the next page).
If the rod must be adjusted, go to Step 2.
l
