2. Determine which set of bolts is correct for your specific machine:
a. Find both sets of bolts provided with this kit.
b. Compare the provided bolts to the original bolts that you removed in Step 1.
The correct replacement bolts should match the original bolts.
3. Discard the extra set of bolts and the original bolts that you removed in Step 1.
4. Align the ATC Carousel Plate Spacer on the ATC carousel, and then align the tool carousel plate with the ATC
Carousel Plate Spacer.

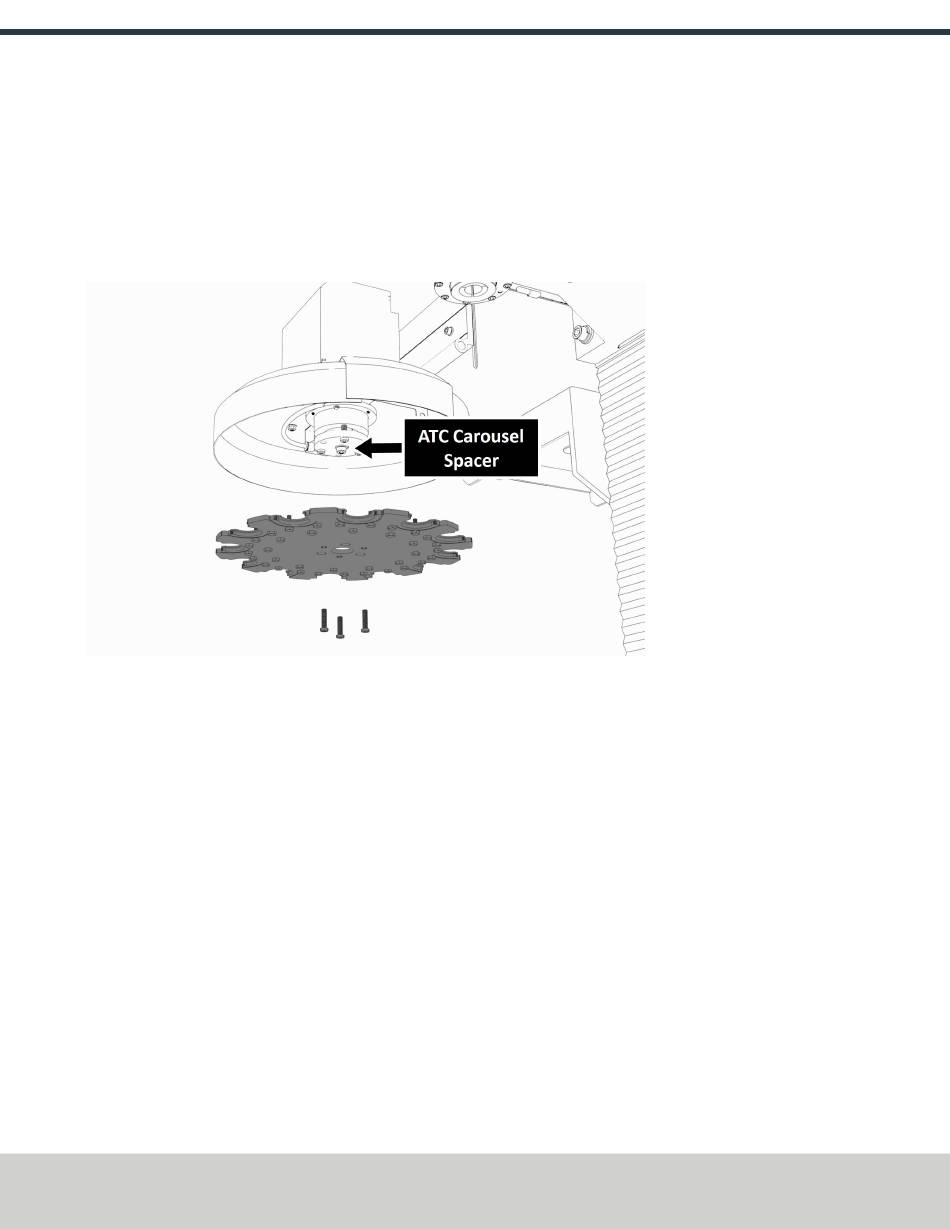

Figure 1: Location to install the ATC Carousel Plate Spacer.
5. Secure the tool carousel plate to the ATC carousel with three provided bolts that you determined in Step 2.
Turn Over the Tool Forks
If the tool height is still too high after you completed the steps in "Install the ATC Carousel Plate Spacer" (on the
previous page), you can turn over the tool forks on the ATC carousel.
To turn over the tool forks:
