Tormach Automatic Tool Changer Owner's Manual page 30

TECHNICAL DOCUMENT

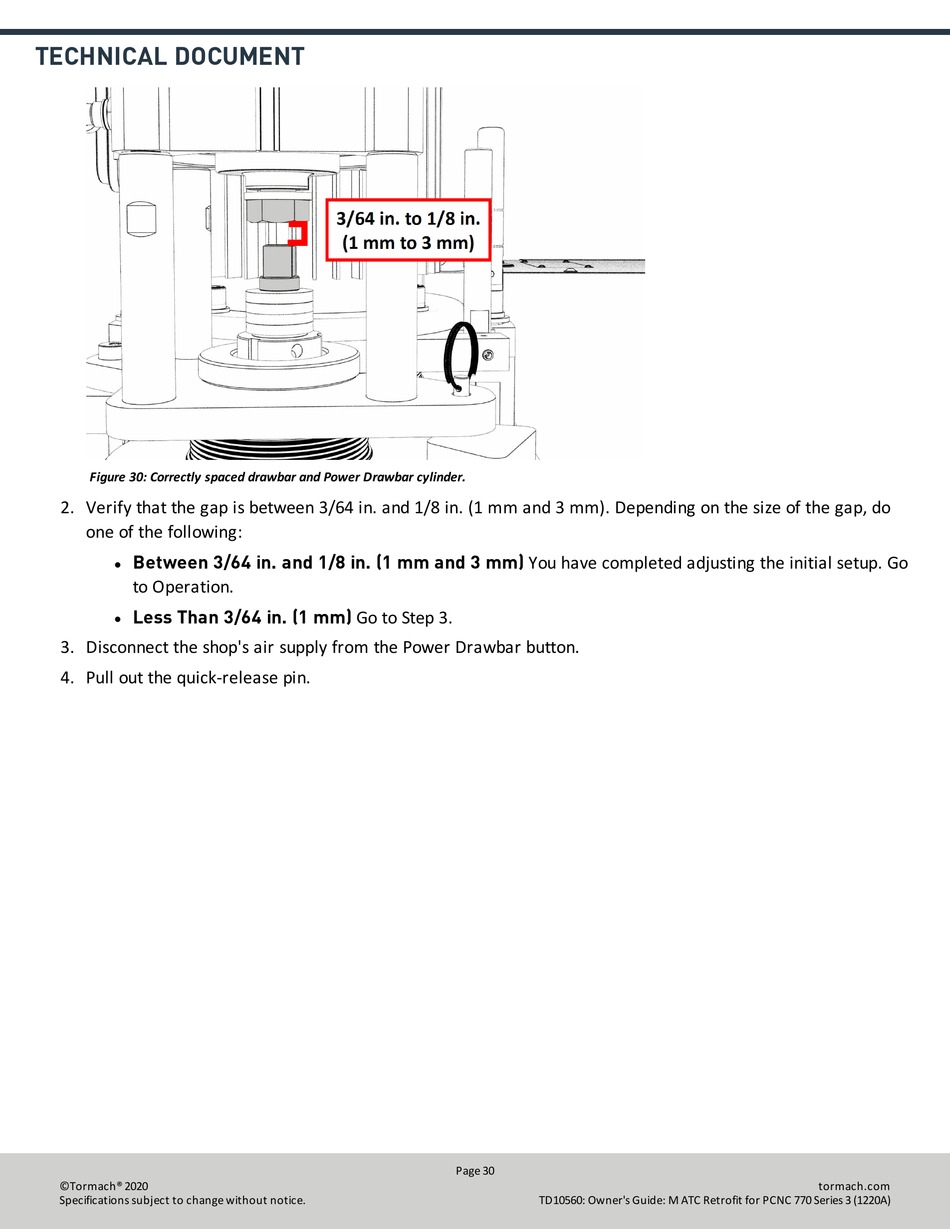

Figure 30: Correctly spaced drawbar and Power Drawbar cylinder.
2. Verify that the gap is between 3/64 in. and 1/8 in. (1 mm and 3 mm). Depending on the size of the gap, do
one of the following:
Between 3/64 in. and 1/8 in. (1 mm and 3 mm) You have completed adjusting the initial setup. Go
l
to Operation.
Less Than 3/64 in. (1 mm) Go to Step 3.
l
3. Disconnect the shop's air supply from the Power Drawbar button.
4. Pull out the quick-release pin.
