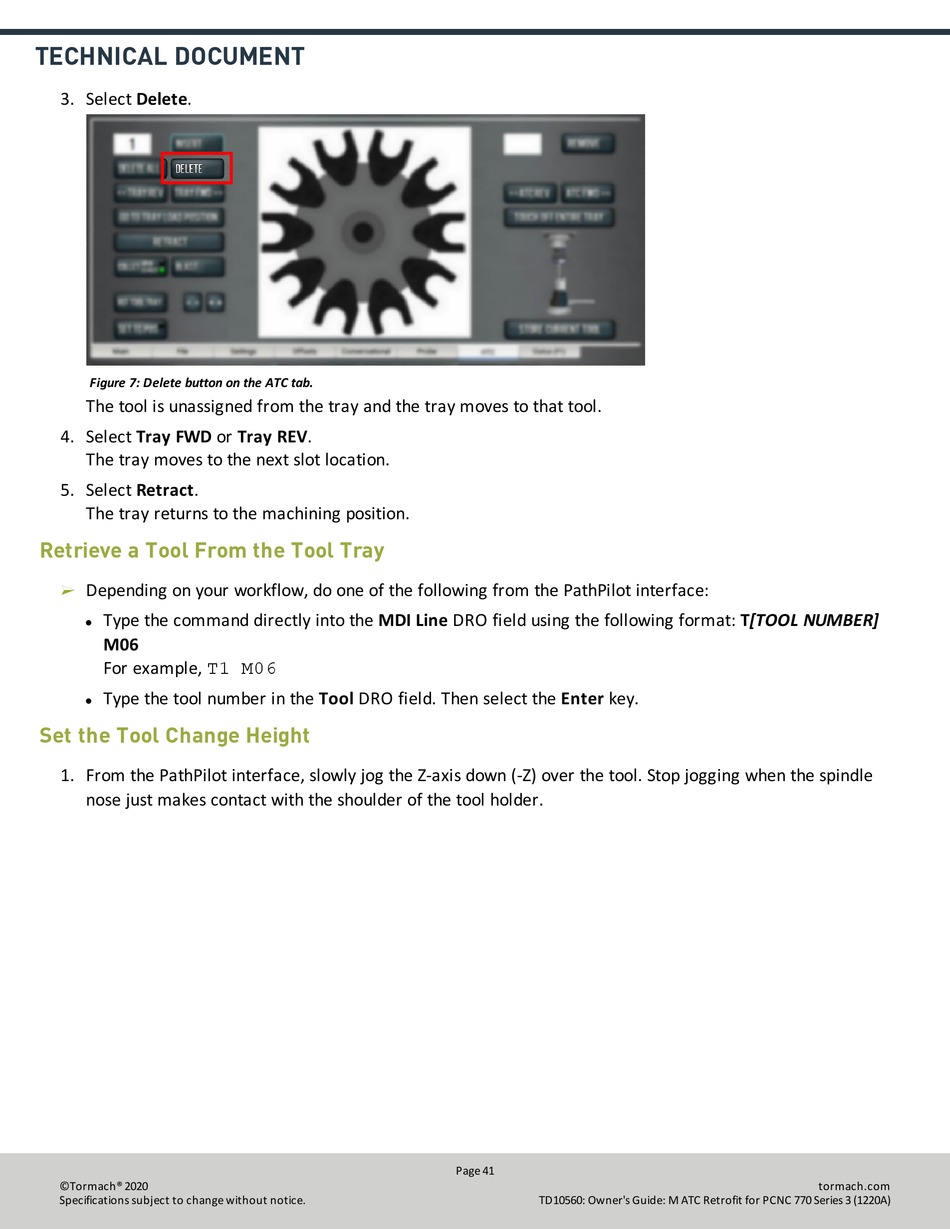

TECHNICAL DOCUMENT
3. Select Delete.
Figure 7: Delete button on the ATC tab.
The tool is unassigned from the tray and the tray moves to that tool.
4. Select Tray FWD or Tray REV.
The tray moves to the next slot location.
5. Select Retract.
The tray returns to the machining position.

Retrieve a Tool From the Tool Tray

Depending on your workflow, do one of the following from the PathPilot interface:
Type the command directly into the MDI Line DRO field using the following format: T[TOOL NUMBER]
l
M06
For example, T1 M06
Type the tool number in the Tool DRO field. Then select the Enter key.
l

Set the Tool Change Height

1. From the PathPilot interface, slowly jog the Z-axis down (-Z) over the tool. Stop jogging when the spindle
nose just makes contact with the shoulder of the tool holder.
©Tormach® 2020
Specifications subject to change without notice.
Page 41
TD10560: Owner's Guide: M ATC Retrofit for PCNC 770 Series 3 (1220A)
