5. Pivot the Power Drawbar cylinder assembly to the left so that you can access the Power Drawbar cylinder's
rod.

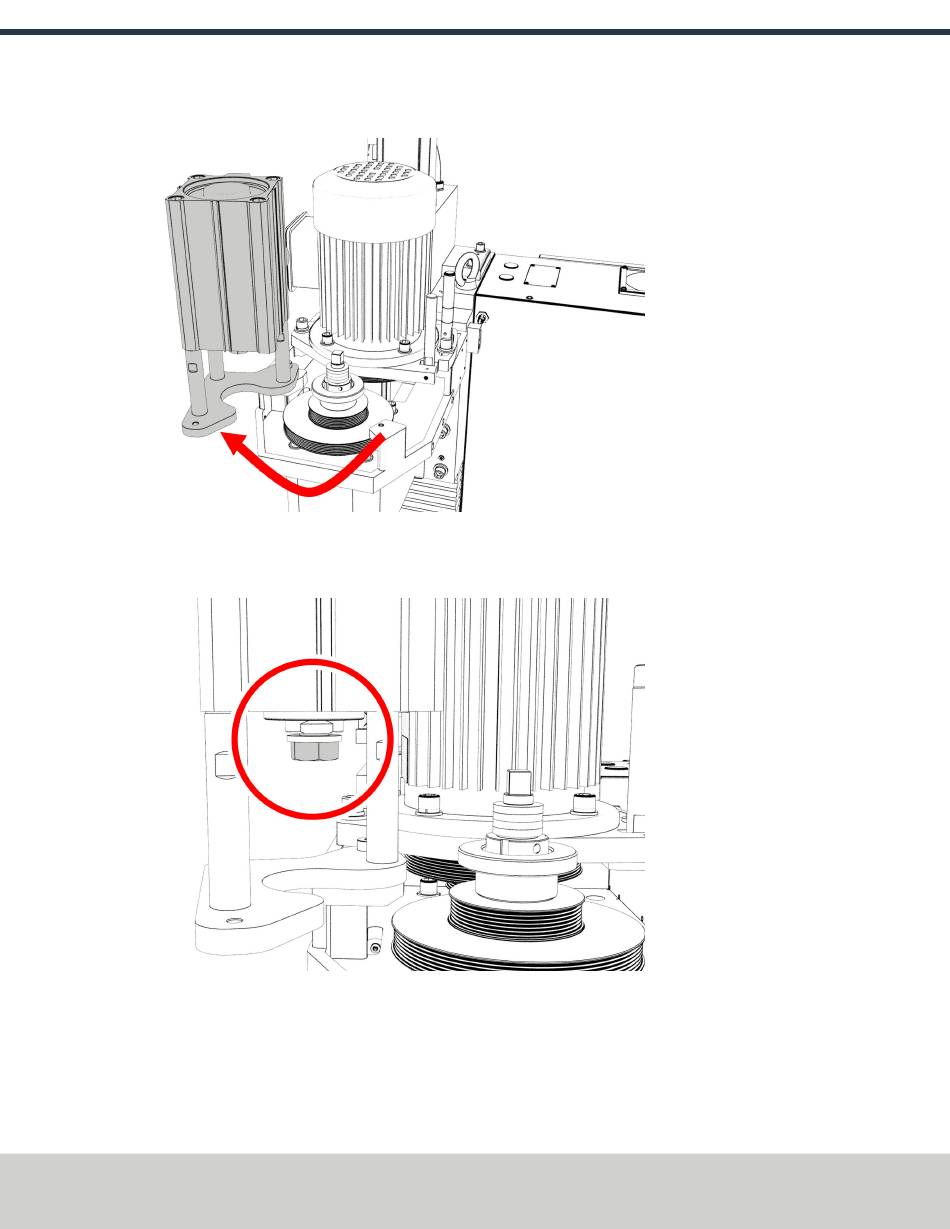

Figure 31: Power Drawbar cylinder pivoted to the left.
6. Remove the hex head screw on the Power Drawbar cylinder's rod with an adjustable wrench, and set it
aside.
Figure 32: Hex head screw on the Power Drawbar cylinder's rod.
