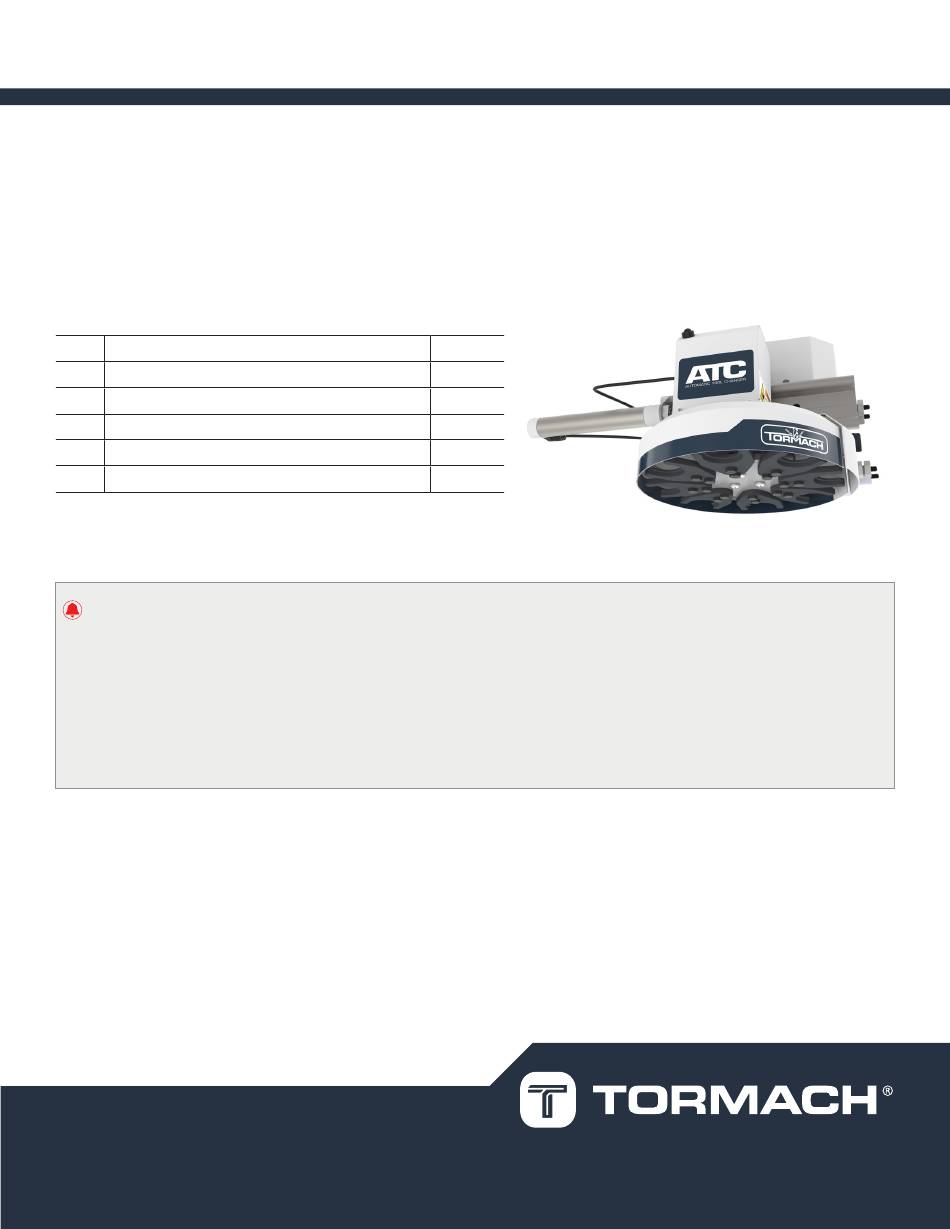

TECHNICAL DOCUMENT

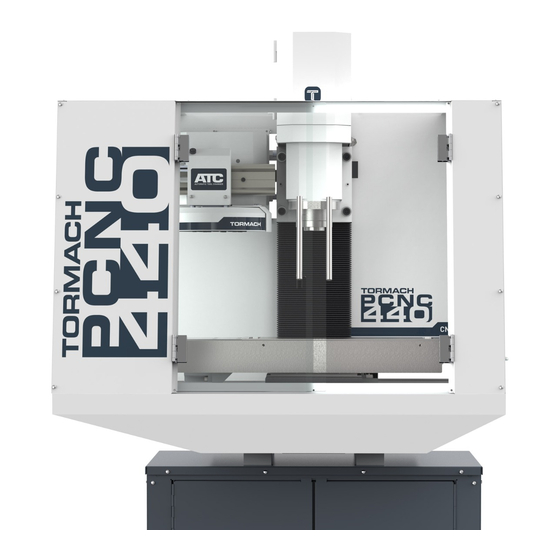

PCNC 440 AUTOMATIC TOOL CHANGER
Product Identification: Automatic Tool Changer for PCNC 440 (PN 35900)
Purpose: This document details the installation and use of the Automatic Tool Changer on a PCNC 440 mill.
.
Qty
PCNC 440 Automatic Tool Changer
2
Adjustable Standoff Assembly
1
ATC Assembly
1
Fixed Standoff Assembly
1
PCNC 440 Coolant Relocation Bracket Kit
10
Plastic Screw
1
Tilt Standoff Assembly
NOTE: If any of these items are missing, contact Tormach
Customer Service at (608) 849-8381 for a replacement.
IMPORTANT!
Please read this section before you begin installing your Automatic Tool Changer (ATC).
• Power Drawbar You must install the PCNC 440 Power Drawbar on your machine before installing the
PCNC 440 Automatic Tool Changer (ATC). Do not install the power drawbar button; tool changes are
completed with the ATC.
• PathPilot You must update your controller to the latest version of PathPilot before installing and
operating the ATC. If you don't, there's a risk that the ATC could become inoperable. Follow the
instructions detailed in "Before You Begin" on page 3.
©Tormach® 2020. All rights reserved.
Specifications subject to change without notice.
TD10487_PCNC440_ATC_Install_1220A
PN
35833
—
35832
37260
32173
35911
Page 1
TORMACH.COM

Advertisement

loading
Need help?

Need help?

Do you have a question about the PCNC 440 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Tormach PCNC 440

Summary of Contents for Tormach PCNC 440

  • Page 1 PCNC 440 AUTOMATIC TOOL CHANGER Product Identification: Automatic Tool Changer for PCNC 440 (PN 35900) Purpose: This document details the installation and use of the Automatic Tool Changer on a PCNC 440 mill. PCNC 440 Automatic Tool Changer Adjustable Standoff Assembly...

  • Page 2: Required Items And Tools

    • Phillips screwdriver • PCNC 440 Power Drawbar (PN 35927) NOTE: You must install the PCNC 440 Power Drawbar on your machine before installing the PCNC 440 Automatic Tool Changer (ATC). Do not install the power drawbar button; tool changes are completed with the ATC.
  • Page 3 • Enclosure. If your mill has a full enclosure, you must partially disassemble it: go to the Enclosure section. If you do not have the previous (optional) accessories, go to the Mill section. ©Tormach® 2020. All rights reserved. Tormach, Inc. Specifications subject to change without notice.
  • Page 4 M6 x 12 mm socket head cap screw securing the button to the spindle motor cover (see Figure 2). Set the screw aside. Figure 2 ©Tormach® 2020. All rights reserved. Tormach, Inc. Specifications subject to change without notice. P: 608.849.8381 / F: 209.885.4534 TD10487_PCNC440_ATC_Install_1220A tormach.com...
  • Page 5 3. Use a 4 mm hex wrench to remove four set screws from the side of the Z-column (see Figure 4). Figure 4 ©Tormach® 2020. All rights reserved. Tormach, Inc. Specifications subject to change without notice. P: 608.849.8381 / F: 209.885.4534 TD10487_PCNC440_ATC_Install_1220A tormach.com...
  • Page 6 5. From each standoff, remove the flange nut and the washer (see Figure 7). Set aside all flange nuts and washers. Tilt Adjustable Adjustable Fixed Figure 6 Figure 7 ©Tormach® 2020. All rights reserved. Tormach, Inc. Specifications subject to change without notice. P: 608.849.8381 / F: 209.885.4534 TD10487_PCNC440_ATC_Install_1220A tormach.com Page 6...
  • Page 7 NOTE: Tighten the washers and flange nuts finger-tight. Adjustments are made later in this document. 11. On the remaining three standoffs, re-install the washers and flange nuts set aside in Step 5. Figure 9 Figure 10 ©Tormach® 2020. All rights reserved. Tormach, Inc. Specifications subject to change without notice. P: 608.849.8381 / F: 209.885.4534 TD10487_PCNC440_ATC_Install_1220A tormach.com...
  • Page 8 Advance airline to the right push-to-connect elbow on the ATC’s top solenoid (see Figure 12). Advance Retract Figure 12 ©Tormach® 2020. All rights reserved. Tormach, Inc. Specifications subject to change without notice. P: 608.849.8381 / F: 209.885.4534 TD10487_PCNC440_ATC_Install_1220A tormach.com...
  • Page 9 If it is not: a. On the adjustable standoffs, use an adjustable wrench to loosen or tighten the nut. b. Move the ATC assembly in the Y direction. ©Tormach® 2020. All rights reserved. Tormach, Inc. Specifications subject to change without notice.
  • Page 10 Bottom Solenoid (see Figure 11), use a small flat-head screwdriver to turn the screw on counterclockwise. The tool tray retracts. Figure 16 ©Tormach® 2020. All rights reserved. Tormach, Inc. Specifications subject to change without notice. P: 608.849.8381 / F: 209.885.4534 TD10487_PCNC440_ATC_Install_1220A tormach.com...

  • Page 11: Make Electrical Connections

    Terminal Block VFD-1 and VFD-8 V+ (power) VFD-8 VFD-1 V- (power) (colors do not represent wire colors) Figure 17 ©Tormach® 2020. All rights reserved. Tormach, Inc. Specifications subject to change without notice. P: 608.849.8381 / F: 209.885.4534 TD10487_PCNC440_ATC_Install_1220A tormach.com Page 11...
  • Page 12 2. From the PathPilot interface, on the Settings tab, select the ATC radio button (see Figure 18). The ATC tab appears in the PathPilot interface. Figure 18 ©Tormach® 2020. All rights reserved. Tormach, Inc. Specifications subject to change without notice. P: 608.849.8381 / F: 209.885.4534 TD10487_PCNC440_ATC_Install_1220A tormach.com...
  • Page 13 Repeat the Validate the Installation procedure. 7. Click Stop. The spindle stops. 8. Use the button on the ATC to remove the tool from the spindle. ©Tormach® 2020. All rights reserved. Tormach, Inc. Specifications subject to change without notice. P: 608.849.8381 / F: 209.885.4534 TD10487_PCNC440_ATC_Install_1220A tormach.com...
  • Page 14 The tool tray moves forward. 5. Make sure the spindle is centered over the ATC’s fork (see Figure 23). Figure 23 ©Tormach® 2020. All rights reserved. Tormach, Inc. Specifications subject to change without notice. P: 608.849.8381 / F: 209.885.4534 TD10487_PCNC440_ATC_Install_1220A tormach.com...
  • Page 15 4. Click the Insert button (see Figure 26). The tool number entered appears on the diagram of the ATC’S carousel. Figure 25 Figure 26 ©Tormach® 2020. All rights reserved. Tormach, Inc. Specifications subject to change without notice. P: 608.849.8381 / F: 209.885.4534 TD10487_PCNC440_ATC_Install_1220A tormach.com...
  • Page 16 Repeat Step 5 until the dowel is parallel with the 1-2-3 block. 6. Remove the 1-2-3 block from the machine table. Figure 28 Figure 29 ©Tormach® 2020. All rights reserved. Tormach, Inc. Specifications subject to change without notice. P: 608.849.8381 / F: 209.885.4534 TD10487_PCNC440_ATC_Install_1220A tormach.com...
  • Page 17 1. From the PathPilot interface, slowly jog the Z-axis down over the tool; stop jogging when the spindle nose just makes contact with the shoulder of the tool holder. ©Tormach® 2020. All rights reserved. Tormach, Inc. Specifications subject to change without notice.
  • Page 18 3. Slide the top window back in place on the enclosure’s top panel and tighten nine 10-32 x 3/8” Phillips screws. Figure 33 ©Tormach® 2020. All rights reserved. Tormach, Inc. Specifications subject to change without notice. P: 608.849.8381 / F: 209.885.4534 TD10487_PCNC440_ATC_Install_1220A tormach.com...
  • Page 19 Operate the Automatic Tool Changer The PCNC 440 Automatic Tool Changer holds up to eight tools in a single tray. If your program requires nine or more tools, the ATC changes tools automatically for all tools assigned to the tray, and pauses for a manual tool change for all tools not assigned to the tray.
  • Page 20 The tray advances to the next location and fetches another tool. Figure 36 5. Click the Retract button. The tray returns to machining position. ©Tormach® 2020. All rights reserved. Tormach, Inc. Specifications subject to change without notice. P: 608.849.8381 / F: 209.885.4534 TD10487_PCNC440_ATC_Install_1220A tormach.com...
  • Page 21 Switching to Manual Tool Changes From the PathPilot interface, on the Settings tab, click the Manual Tool Change radio button. The ATC is prevented from making tool changes. ©Tormach® 2020. All rights reserved. Tormach, Inc. Specifications subject to change without notice.

  • Page 22: Maintenance

    ATC’s fork. Failure to do so could cause machine damage. 3. Repeat the Adjusting the Tool Tray Rotation section. ©Tormach® 2020. All rights reserved. Tormach, Inc. Specifications subject to change without notice. P: 608.849.8381 / F: 209.885.4534 TD10487_PCNC440_ATC_Install_1220A tormach.com...
  • Page 23 TECHNICAL DOCUMENT Exploded Views and Parts Lists Carousel Assembly Exploded View ©Tormach® 2020. All rights reserved. Tormach, Inc. Specifications subject to change without notice. P: 608.849.8381 / F: 209.885.4534 TD10487_PCNC440_ATC_Install_1220A tormach.com Page 23...
  • Page 24 38497 Universal Tool Fork 32173 M6 × 16 mm Nylon Hex Bolt 35856 M5 × 12 mm Pan Head ©Tormach® 2020. All rights reserved. Tormach, Inc. Specifications subject to change without notice. P: 608.849.8381 / F: 209.885.4534 TD10487_PCNC440_ATC_Install_1220A tormach.com Page 24...
  • Page 25 TECHNICAL DOCUMENT Motor and Actuator Exploded View ©Tormach® 2020. All rights reserved. Tormach, Inc. Specifications subject to change without notice. P: 608.849.8381 / F: 209.885.4534 TD10487_PCNC440_ATC_Install_1220A tormach.com Page 25...
  • Page 26 M6 × 18 mm Socket Head Cap Screw 35877 M4 × 18 mm Flat-Head 35849 Air Cylinder 35854 1-4 magnet 35850 Taper Lock Hub ©Tormach® 2020. All rights reserved. Tormach, Inc. Specifications subject to change without notice. P: 608.849.8381 / F: 209.885.4534 TD10487_PCNC440_ATC_Install_1220A tormach.com Page 26...
  • Page 27 TECHNICAL DOCUMENT Mount and Control Exploded View ©Tormach® 2020. All rights reserved. Tormach, Inc. Specifications subject to change without notice. P: 608.849.8381 / F: 209.885.4534 TD10487_PCNC440_ATC_Install_1220A tormach.com Page 27...
  • Page 28 Stepper Driver 35889 M4 Hex Nut 32139 Flex Cable Retainer – 1/4 NPT M4 × 12 mm Flat-Head Screw ©Tormach® 2020. All rights reserved. Tormach, Inc. Specifications subject to change without notice. P: 608.849.8381 / F: 209.885.4534 TD10487_PCNC440_ATC_Install_1220A tormach.com Page 28...

  • Page 29: Wiring Diagram

    + - + - + - + - + - + - + - + - TRAY BLASTER BLDC DRIVE DRAWBAR PRESSURE DRAWBAR INDEX CYLINDER ©Tormach® 2020. All rights reserved. Tormach, Inc. Specifications subject to change without notice. P: 608.849.8381 / F: 209.885.4534 TD10487_PCNC440_ATC_Install_1220A tormach.com Page 29...
