TECHNICAL DOCUMENT
3. Use any open access hole in the bottom of the electrical cabinet to route the loose wires into the electrical
cabinet.

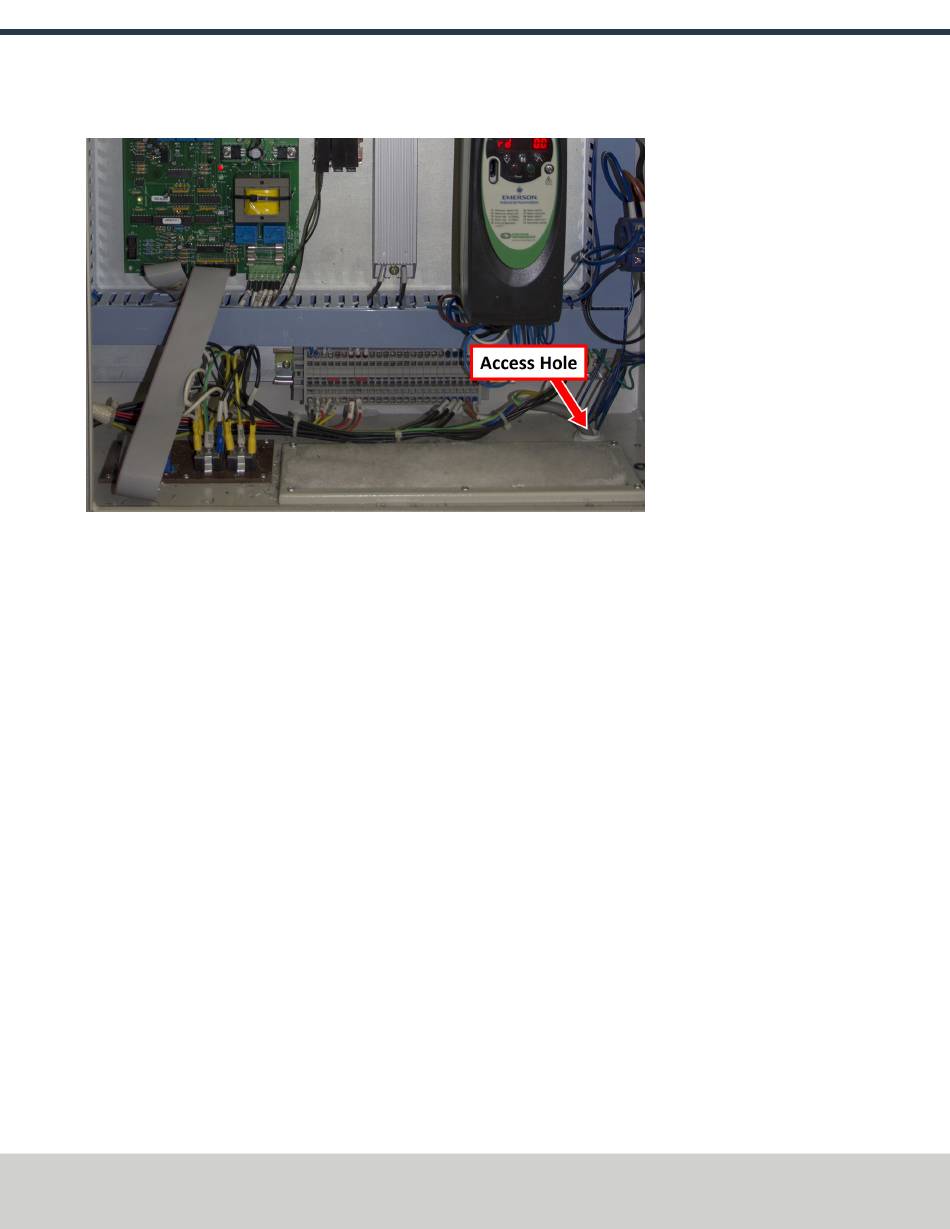

Figure 17: Access hole in the bottom of the electrical cabinet.
4. Remove the wire trough covers in the electrical cabinet.
©Tormach® 2020
Specifications subject to change without notice.
Page 18
TD10560: Owner's Guide: M ATC Retrofit for PCNC 770 Series 3 (1220A)
tormach.com
