8. If the tool's shank isn't aligned, do the following:
Adjust the Alignment of the Tool in the Y Direction (toward or away from the Z column)
l
Determine if the tray must move clockwise or counterclockwise. From the PathPilot interface, in the
ATC tab, either select -- to step the tool tray counterclockwise or ++ to step the tool tray clockwise.

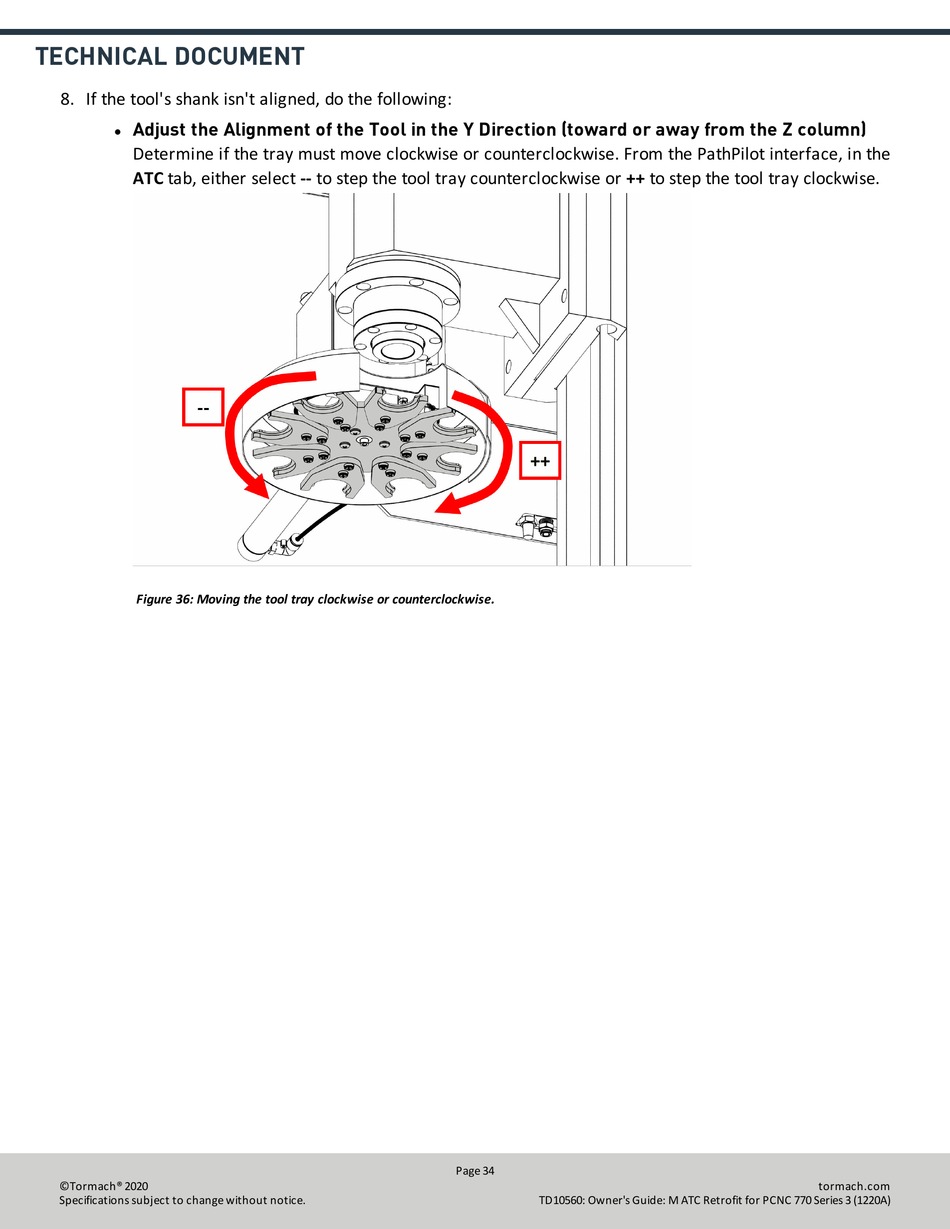

Figure 36: Moving the tool tray clockwise or counterclockwise.
