8. Identify slots T1 and B5 on the VFD. You'll make connections in both slots to connect the ATC Legacy Adapter
Cable.

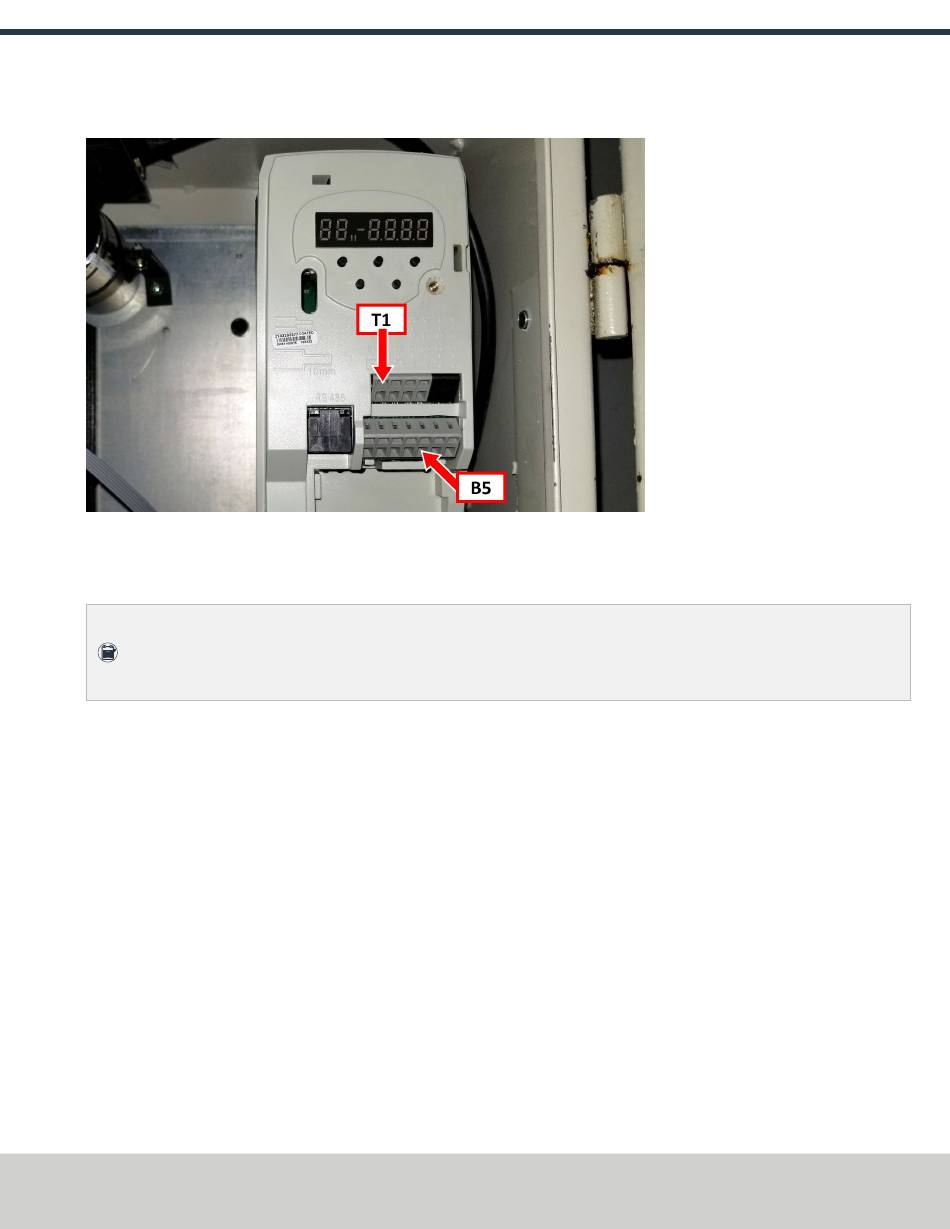

Figure 21: Slot identification on the VFD.
9. Remove wire T1 from the VFD, and then insert it in to the open slot in the T1 lever nut on the ATC Legacy
Adapter Cable.
Note: If you have an (optional) load meter, your VFD has an extra wire in slot T1. Remove it from
the VFD, and then insert it into the remaining open slot in the T1 lever nut on the ATC Legacy
Adapter Cable.
10. Completely push the lever down on the T1 lever nut to latch the wire. Verify that the lever is latched.
