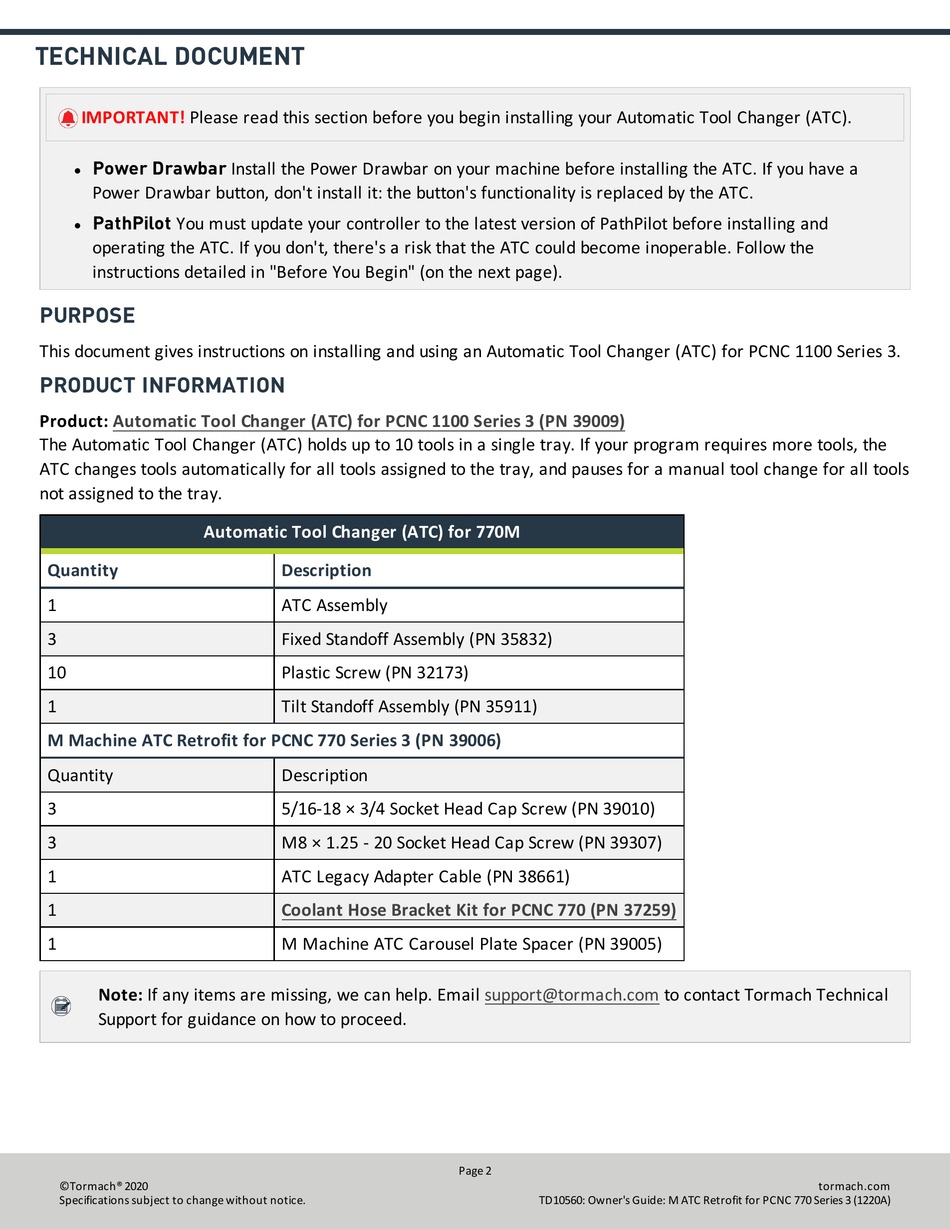

Tormach Automatic Tool Changer Owner's Manual page 2

TECHNICAL DOCUMENT
IMPORTANT! Please read this section before you begin installing your Automatic Tool Changer (ATC).
Power Drawbar Install the Power Drawbar on your machine before installing the ATC. If you have a
l
Power Drawbar button, don't install it: the button's functionality is replaced by the ATC.
PathPilot You must update your controller to the latest version of PathPilot before installing and
l
operating the ATC. If you don't, there's a risk that the ATC could become inoperable. Follow the
instructions detailed in "Before You Begin" (on the next page).
PURPOSE
This document gives instructions on installing and using an Automatic Tool Changer (ATC) for PCNC 1100 Series 3.
PRODUCT INFORMATION
Product: Automatic Tool Changer (ATC) for PCNC 1100 Series 3 (PN 39009)
The Automatic Tool Changer (ATC) holds up to 10 tools in a single tray. If your program requires more tools, the
ATC changes tools automatically for all tools assigned to the tray, and pauses for a manual tool change for all tools
not assigned to the tray.
Automatic Tool Changer (ATC) for 770M
Quantity
1
3
10
1
M Machine ATC Retrofit for PCNC 770 Series 3 (PN 39006)
Quantity
3
3
1
1
1
Note: If any items are missing, we can help. Email
Support for guidance on how to proceed.
©Tormach® 2020
Specifications subject to change without notice.
Description
ATC Assembly
Fixed Standoff Assembly (PN 35832)
Plastic Screw (PN 32173)
Tilt Standoff Assembly (PN 35911)
Description
5/16-18 × 3/4 Socket Head Cap Screw (PN 39010)
M8 × 1.25 - 20 Socket Head Cap Screw (PN 39307)
ATC Legacy Adapter Cable (PN 38661)
Coolant Hose Bracket Kit for PCNC 770 (PN 37259)
M Machine ATC Carousel Plate Spacer (PN 39005)
