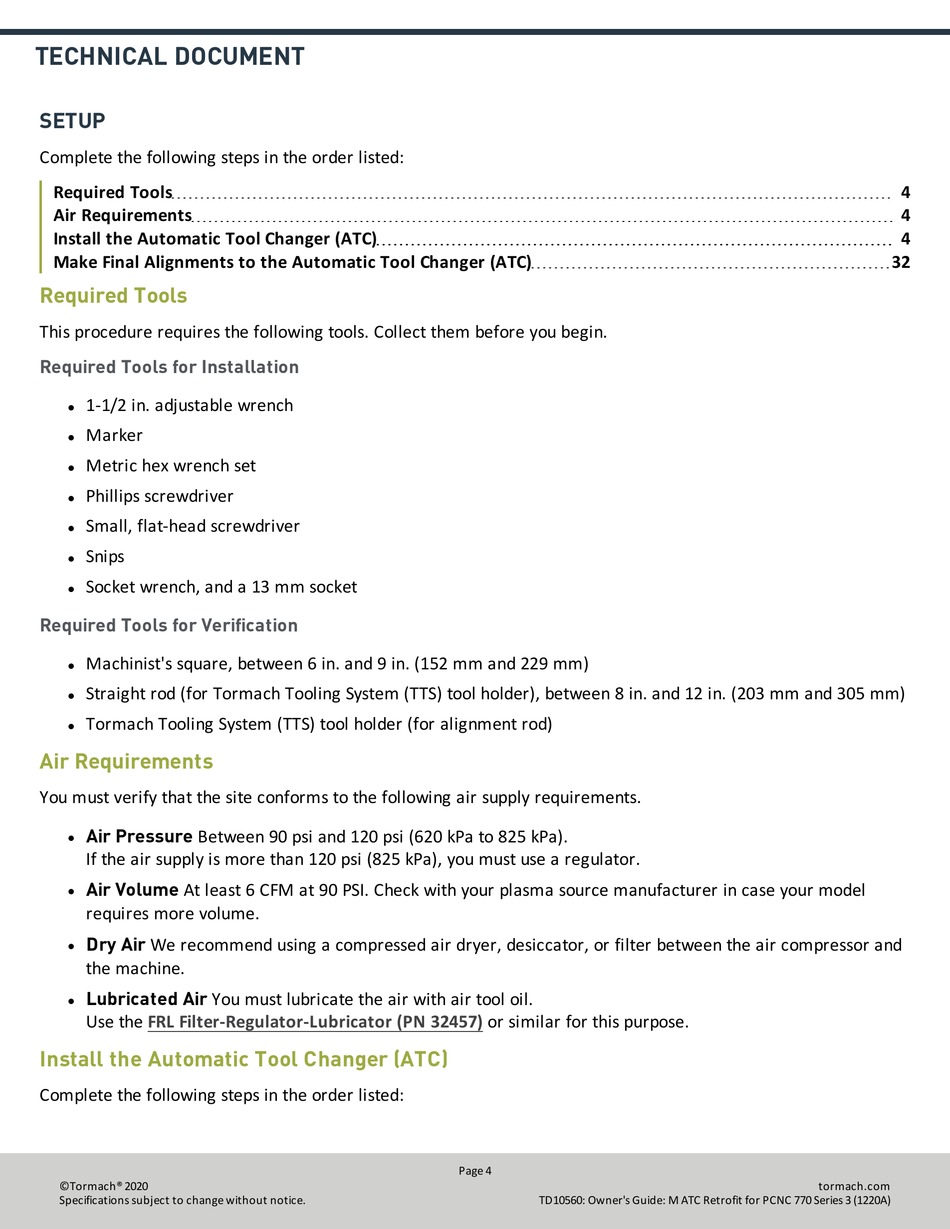

Tormach Automatic Tool Changer Owner's Manual page 4

TECHNICAL DOCUMENT
SETUP
Complete the following steps in the order listed:
Required Tools
Air Requirements
Install the Automatic Tool Changer (ATC)
Make Final Alignments to the Automatic Tool Changer (ATC)
Required Tools
This procedure requires the following tools. Collect them before you begin.
Required Tools for Installation
1-1/2 in. adjustable wrench
l
Marker
l
Metric hex wrench set
l
Phillips screwdriver
l
Small, flat-head screwdriver
l
Snips
l
Socket wrench, and a 13 mm socket
l
Required Tools for Verification
Machinist's square, between 6 in. and 9 in. (152 mm and 229 mm)
l
Straight rod (for Tormach Tooling System (TTS) tool holder), between 8 in. and 12 in. (203 mm and 305 mm)
l
Tormach Tooling System (TTS) tool holder (for alignment rod)
l
Air Requirements
You must verify that the site conforms to the following air supply requirements.
Air Pressure Between 90 psi and 120 psi (620 kPa to 825 kPa).
l
If the air supply is more than 120 psi (825 kPa), you must use a regulator.
Air Volume At least 6 CFM at 90 PSI. Check with your plasma source manufacturer in case your model
l
requires more volume.
Dry Air We recommend using a compressed air dryer, desiccator, or filter between the air compressor and
l
the machine.
Lubricated Air You must lubricate the air with air tool oil.
l
Use the FRL Filter-Regulator-Lubricator (PN 32457)
Install the Automatic Tool Changer (ATC)
Complete the following steps in the order listed:
©Tormach® 2020
Specifications subject to change without notice.
or similar for this purpose.
Page 4
TD10560: Owner's Guide: M ATC Retrofit for PCNC 770 Series 3 (1220A)
