11. Connect the loose wire from the T1 lever nut in to slot T1 on the VFD.

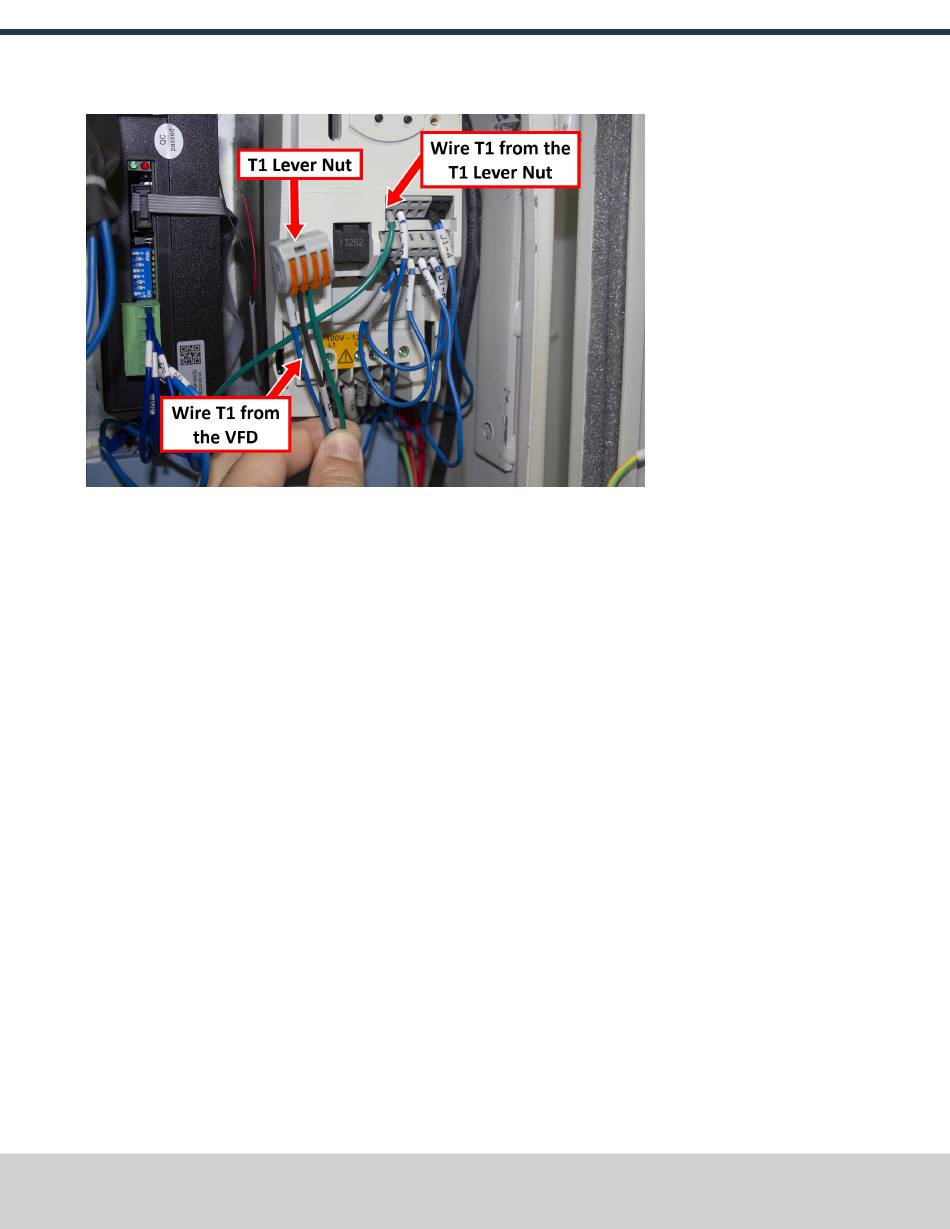

Figure 22: T1 lever nut connected to slot T1 on the VFD.
12. Remove wire B5 from the VFD, and then insert it in to the B3/B5 lever nut on the ATC Legacy Adapter Cable.
Push the lever down on the B3/B5 lever nut to latch the wire. Then, connect the loose wire from the B3/B5
lever nut in to slot B5 on the VFD.
13. Replace the VFD faceplate.
