Chapter 5
TERMINAL MENU WINDOW
Menu Path
Left Pane
Sys
Menu Path
61200266L1-1
Navigating the Terminal Menu
PLUS
The ATLAS 810
uses a multilevel menu structure that contains both
menu items and data fields. All menu items and data fields display in the
terminal menu window, through which you have complete control of the
PLUS
ATLAS 810
(see Figure 5-1).
Tool Tip
The first line of the terminal menu window (the menu path) shows the
session's current position (path) in the menu structure. For example, Figure
5-1 shows the menu with the cursor on the module Sys Ctrl; therefore, the
ý$7/$6ýåìí3/86î0RGXOHV>í@î0RGXOHý7\SHïý
menu path reads
PLUS
ATLAS 810
Port Status
Extended Help

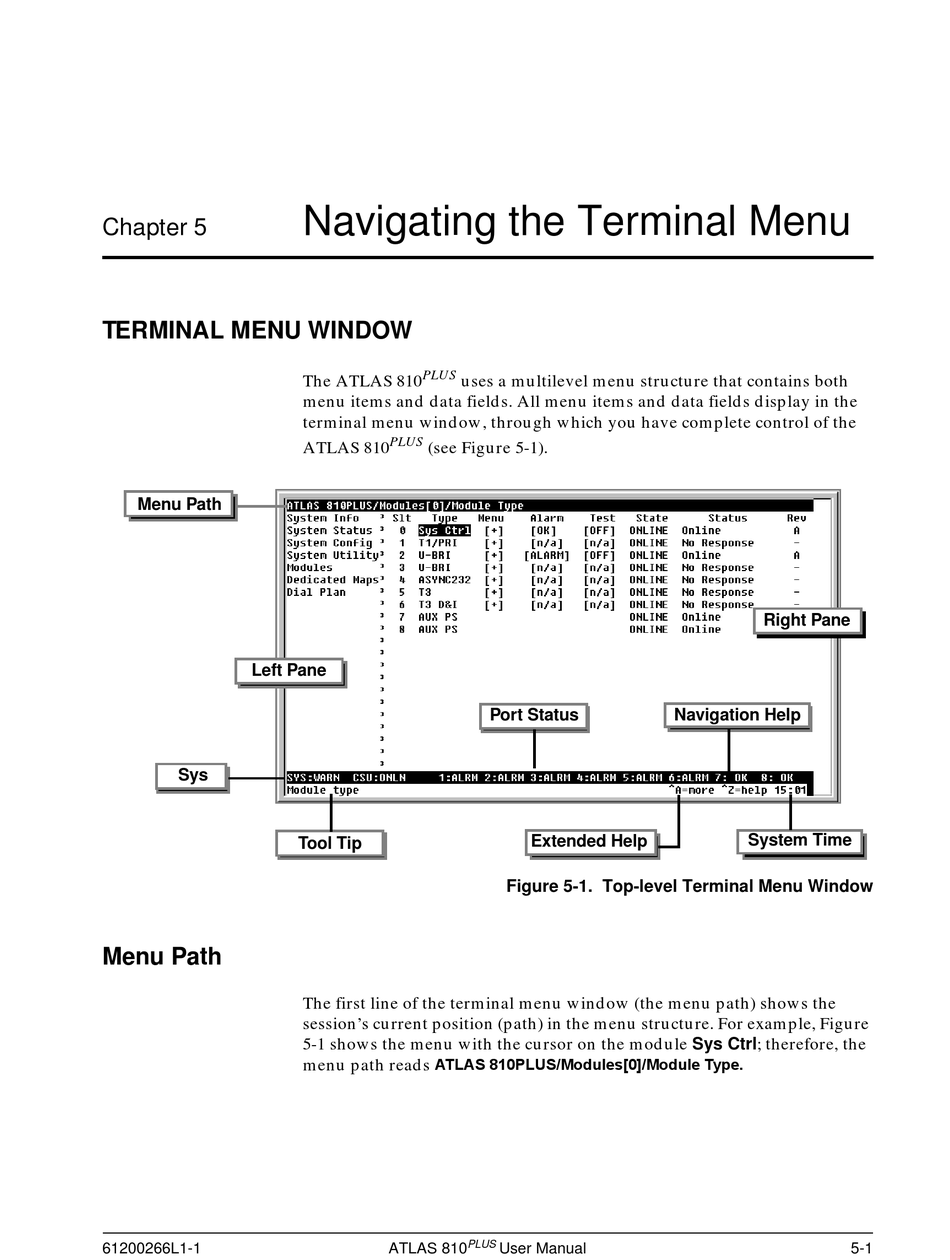

Figure 5-1. Top-level Terminal Menu Window
User Manual
Right Pane
Navigation Help
System Time
5-1
