Quick Start
D
ESCRIPTION
The CenturyLink 2P/4GE WIFI is an Optical Network Unit (C424G ONU) that converts signals being transmitted on optical fiber into

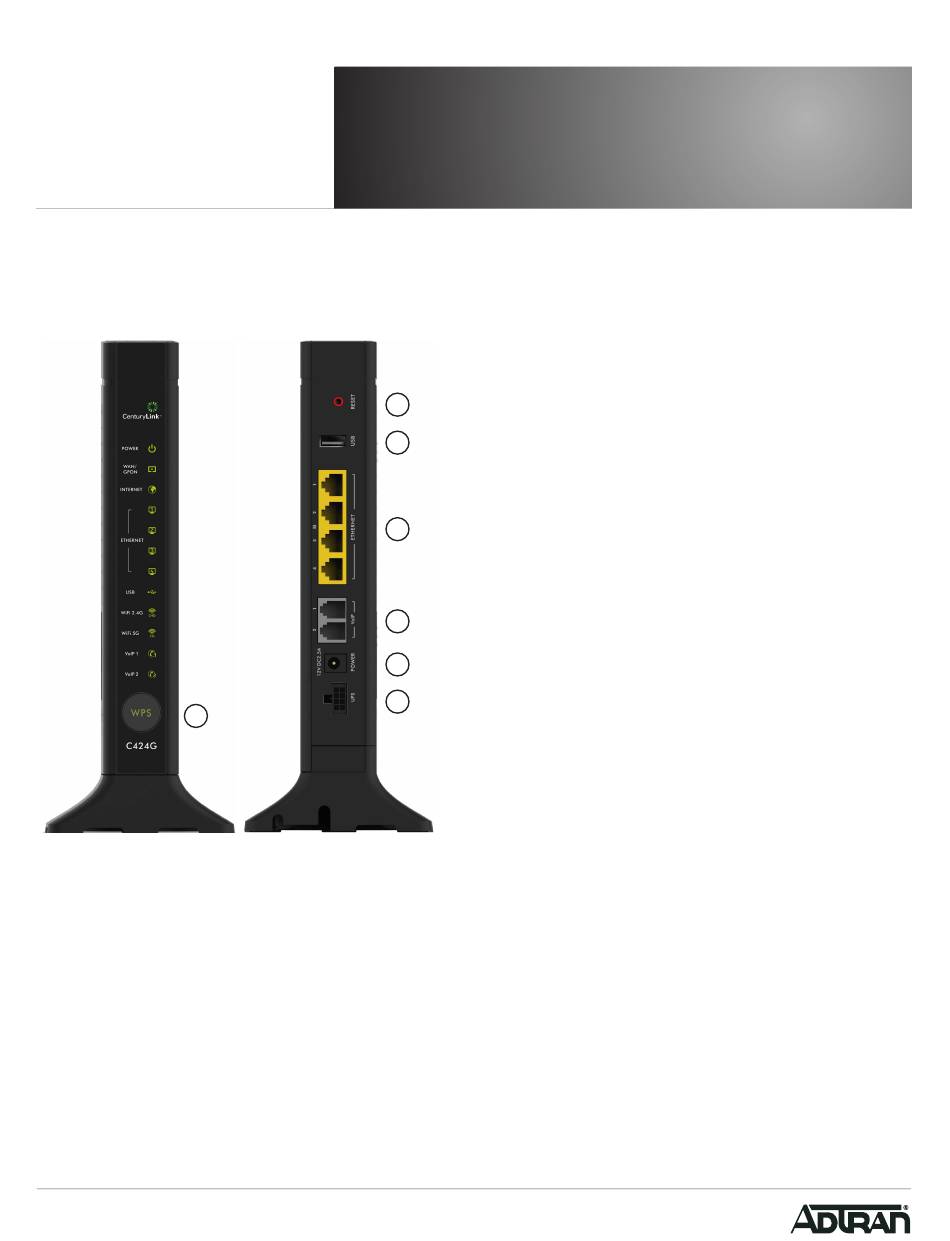

electrical signals at a customer location. The illustration below displays the front and rear of the C424G ONU.
7

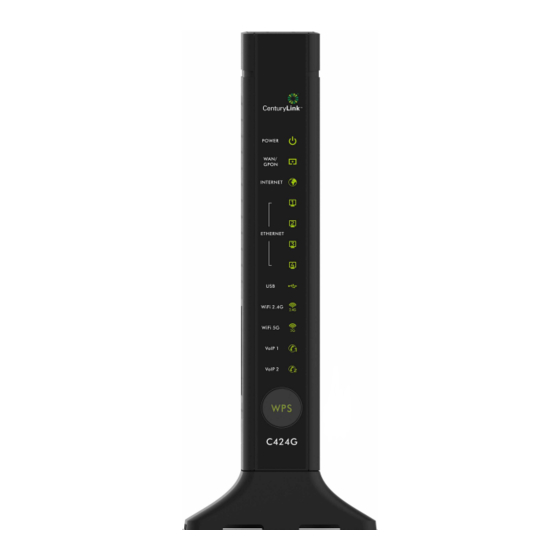

Front
Figure 1. C424G ONU Front and Rear
F
EATURES
The C424G ONU supports the following features:
■
Reset Button
■
USB
■
Four Ethernet Ports
■
Two VoIP (POTS) Ports
■
2.4 GHz and 5.0 GHz WiFi
■
12 VDC Power Adapter
■
USB Port
FTTP
C424G ONU
2P/4GE WIFI
Item 1 - Reset
Item 2 - USB
Item 3 - Ethernet Connections
Item 4 - VoIP (POTS) Connections
1
Item 5 - Power
Item 6 - UPS
2
Item 7 - WPS
3
4
5
6
Rear
June 2017
61287781F1C-13A
P/N: 1287781F1C
Advertisement
Table of Contents
Related Manuals for ADTRAN CenturyLink C424G
Summary of Contents for ADTRAN CenturyLink C424G
- Page 1 FTTP June 2017 61287781F1C-13A C424G ONU Quick Start 2P/4GE WIFI P/N: 1287781F1C ESCRIPTION The CenturyLink 2P/4GE WIFI is an Optical Network Unit (C424G ONU) that converts signals being transmitted on optical fiber into electrical signals at a customer location. The illustration below displays the front and rear of the C424G ONU. Item 1 - Reset Item 2 - USB Item 3 - Ethernet Connections...
-
Page 2: Voice Processing
The USB port is USB 2.0 compliant with 500mA service for peripheral devices. NSTALLATION After unpacking the C424G ONU, inspect it for damage. If damage is noted, file a claim with the carrier and then contact ADTRAN. For more information, refer to the warranty. -
Page 3: Installation Overview
Installation Overview To install the C424G ONU, you will need to complete the following steps: ■ “Step 1: Mounting Option” ■ “Step 2: Connect VoIP (POTS)” ■ “Step 3: Connect Ethernet” ■ “Step 4: Connect Power” ■ “Step 5: Connect Uninterrupted Power Source (UPS)” Required tools Standard technician tools and those listed below are required for installing the C424G ONU: ■... -
Page 4: Step 4: Connect Power
UPS cable from the source to the UPS port on the rear of the unit. NOTE ADTRAN offers a UPS Cable assembly (P/N 1287402G1) for this connector. The UPS Power/Alarm Connections Table below defines each pin on the connector. -
Page 5: Led Status
LED S TATUS The LEDs are located beneath the plastic housing on the front of the C424G ONU, and are only visible after power has been applied. The following table provides the LED status during normal operations. Label Function Status Indication POWER BOOT-UP... - Page 6 Label Function Status Indication INTERNET AUTHENTICATED Green Authentication complete. WITH UNIQUE Green Flashing Authentication from LAN to WAN CREDENTIALS and WAN to LAN in process. INTERNET PPP FAILING Authentication failing due to bad AUTHENTICATION credentials, or a valid WAN IP address is not obtained.
-
Page 7: Specifications
The C424G ONU does not require routine hardware maintenance for normal operation. ADTRAN does not recommend that repairs be attempted in the field. Repair services may be obtained by returning the defective unit to ADTRAN. Refer to the warranty for further infor- mation. - Page 8 For inquiries, go to: Warranty: ADTRAN will replace or repair this product within the warranty period if it does not ADTRAN CUSTOMER CARE: meet its published specifications or fails while in service. Warranty information can be From within the U.S.
