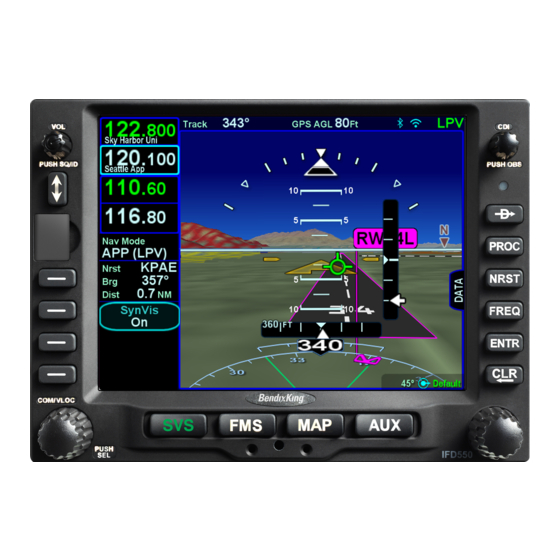

BENDIXKing AeroNav 910 Pilot's Manual

page of 426

/ 426
Contents
Table of Contents
Bookmarks

Table of Contents

Quick Links

AeroNav 910 SVS/FMS/GPS/NAV/COM

AeroNav 900 FMS/GPS/NAV/COM

AeroNav 905 SVS/FMS/GPS

AeroNav 880 FMS/GPS

Pilot's Guide

Table of Contents

Need help?

Do you have a question about the AeroNav 910 and is the answer not in the manual?

Questions and answers

Summary of Contents for BENDIXKing AeroNav 910

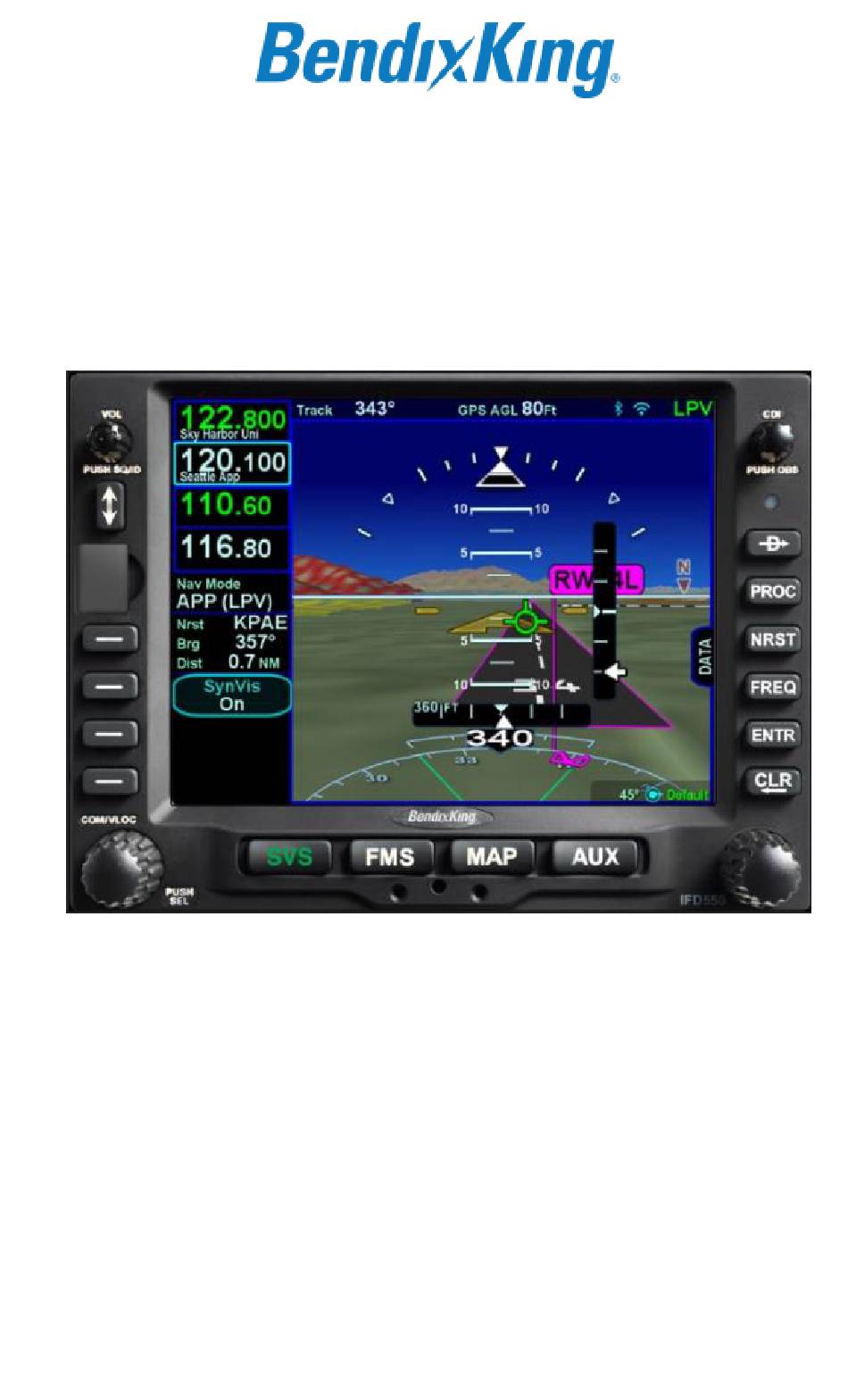

Page 1 AeroNav 910 SVS/FMS/GPS/NAV/COM AeroNav 900 FMS/GPS/NAV/COM AeroNav 905 SVS/FMS/GPS AeroNav 880 FMS/GPS Pilot’s Guide...
Page 2 Download or view publications online at www.bendixking.com Questions about this publication can be emailed to: pubs@bendixking.com BendixKing Customer Support U.S.A. and Canada: 1-855-250-7027 (Toll Free) International: 1-505-903-6148 www.bendixking.com Email: techsupport@bendixking.com www.avidyne.com/support/license.asp BendixKing Part Number 89000039-010 Printed in the U.S.A. May 2019...
Page 3 AeroNav 900/880 Series Pilot’s Guide Record of Revision REVISION REVISION DESCRIPTION DATE 03MAY2019 Initial Release  Updated revision number 14MAY2019  Deleted Materials License Agreement and copyright information  Added a link to Avidyne Software License Information 89000039-010 Rev 1 May 2019...
Page 4 AeroNav 900/880 Series Pilot’s Guide Blank Page 89000039-010 Rev 1 May 2019...
Page 5: Table Of Contents
Line Select Keys ............1-10 Right Knob Labeling ............1-11 Color Philosophy ............1-12 GENERAL AERONAV OPERATIONS ......1-13 AeroNav 900/AeroNav 910 Bezel Layout ...... 1-13 AeroNav 880/AeroNav 905 Bezel Layout ...... 1-14 Power Control ..............1-16 Brightness Controls ............1-17 Start-Up Sequence ............
Page 6 AeroNav 900/880 Series Pilot’s Guide SVS Page Variations ............. 2-22 Operational Limits of the ARS ........2-24 FMS Subsystem ..............3-1 FPL (FLIGHT PLAN) TAB ............ 3-2 FMS Basic Concepts ............3-2 Creating a New Flight Plan ..........3-4 Previewing Flight Plans ............ 3-6 Selecting a Departure ............
Page 7 AeroNav 900/880 Series Pilot’s Guide Map Subsystem ..............4-1 MAP TAB ................4-2 Map Controls ..............4-2 Other Map Features ............4-6 Fuel Range RingS ............4-10 Decluttering The Map ............. 4-12 Map Panning ..............4-13 Graphical Flight Planning (“Rubber Banding”) ....4-14 Altitude Constraints On Map ..........
Page 8 AeroNav 900/880 Series Pilot’s Guide Aux Subsystem ..............5-1 AUDIO TAB ................5-2 Volume Control ..............5-2 Satellite Radio Tuning ............5-4 Com Presets † ..............5-6 UTIL (UTILITIES) TAB ............5-8 Timers ................5-8 Calculators ..............5-11 Electronic Checklist ............5-15 SETUP TAB ...............
Page 9 AeroNav 900/880 Series Pilot’s Guide SELF TEST OUTPUT ............7-26 SYSTEM FAILURES............7-27 Power Distribution ............7-27 Loss Of AeroNav ............7-27 Loss Of Display .............. 7-28 Loss Of Bezel Controls ..........7-29 Loss Of Touchscreen Control ........7-29 Loss Of GPS (Dead Reckoning) ........7-30 Other Anomalies ............
Page 10 AeroNav 900/880 Series Pilot’s Guide Configuring as a client with a static IP ......7-77 ® PAIRING A BLUETOOTH KEYBOARD ......7-79 Verification of successful pairing ........7-84 CLEANING THE DISPLAY ..........7-87 SLIDE-IN REPLACEMENT DETAILS ........ 7-88 89000039-010 6 Table of Contents Rev 1 May 2019...
Page 11: System Overview
Federal Aviation Regulations (FARs). All images contained in this manual are for reference use only, and are subject to change. BendixKing strongly recommends that pilots use the AeroNav system only under VFR conditions until completely familiar with its operation and use.
Page 12: Intended Function
Differences from the AeroNav 900 are specifically identified throughout the manual. AERONAV 900 The BendixKing AeroNav 900 is a GPS-Nav-Com radio whose primary function is to conduct nav-com-transponder tuning and communication, and serve as the principal navigation sensor/system for all IFR VHF (“VLOC”) and GPS-based...
Page 13: Aeronav 880
The system includes terrain alerting as well as an option for TAWS. AERONAV 880 The BendixKing AeroNav 880 differs from the AeroNav 900 in that there is no internal VHF nav/com radio. Its primary function is to conduct GPS-based navigation in an IFR environment,...
Page 14: Aeronav 910
AeroNav 880 are identified using a † symbol. AERONAV 910 The BendixKing AeroNav 910 is a GPS-Nav-Com radio whose primary function is to conduct nav-com-transponder tuning and communication, and serve as the principal navigation sensor/system for all IFR VHF (“VLOC”) and GPS-based...
Page 15 TAWS. The AeroNav 910 also provides a synthetic terrain/vision image to enhance the pilot’s awareness of their spatial position relative to the terrain, obstacles and known traffic. Pitch, roll, and skid/slip indicators also aid in attitude awareness.
Page 16 AERONAV 905 The BendixKing AeroNav 905 differs from the AeroNav 910 in that there is no internal VHF nav/com radio. Its primary function is to conduct GPS-based navigation in an IFR environment,...
Page 17 Throughout this document, capabilities that are not applicable to the AeroNav 905 are identified using a † symbol. Also, capabilities that are applicable only to the AeroNav 910 or AeroNav 905 are identified using a ‡ symbol. 89000039-010 Rev 1 May 2019...
Page 18: Functional Overview
AeroNav 900/880 Series Pilot’s Guide FUNCTIONAL OVERVIEW The BendixKing AeroNav system supports the following functions:  Flight Management System (FMS)  WAAS and non-WAAS GPS Navigation  VHF Radio Nav/Com (16W and 10W variants) †  Synthetic Vision (SVS) ‡...
Page 19 AeroNav 900/880 Series Pilot’s Guide COOL FEATURE Multi-Touch Touch Screen Control The AeroNav supports multi-touch touch screen technology meaning that features such as two- fingered pinch zoom for range changing on maps and charts is fully enabled. The system has been designed for single-pilot IFR operation and features a Page and Tab user interface.
Page 20: Basic Concepts
Page Function Keys and Tabs (AeroNav 900 and AeroNav 880) Page Function Keys and Tabs (AeroNav 910 and AeroNav 905) LINE SELECT KEYS Line Select Keys (LSK), are the buttons found along the left vertical side of the bezel.
Page 21: Right Knob Labeling
AeroNav 900/880 Series Pilot’s Guide The title reflects the system function or setting to be affected, and the state shows the current state of that setting. Pressing the LSK or touching the label will change to the next state. An Action LSK is identified by a phrase shown in blue-green. The phrase is usually in verb-subject form, but there are exceptions when the verb is omitted (e.g.
Page 22: Color Philosophy
AeroNav 900/880 Series Pilot’s Guide COLOR PHILOSOPHY There are a few generalities with the use of color that are consistent across the AeroNav as described in the table below: AeroNav Feature/Function Color Page Function Keys Green - Active White - Available but not currently active Note: AUX can also be Red, Yellow, or Cyan if there is an...
Page 23: General Aeronav Operations
Garmin 500/W unit. AERONAV 900/AERONAV 910 BEZEL LAYOUT The AeroNav 900 and AeroNav 910 have the same bezel layout except that the AeroNav 910 has one extra Page Function Key labeled "SVS" to the left of the FMS key.
Page 24: Aeronav 880/Aeronav 905 Bezel Layout
AeroNav 900/880 Series Pilot’s Guide AERONAV 880/AERONAV 905 BEZEL LAYOUT The AeroNav 880 and AeroNav 905 have the same bezel layout except that the AeroNav 905 has one extra Page Function Key labeled "SVS" to the left of the FMS key. Starting in the top left corner and working counter-clockwise around the bezel, the AeroNav has: ...
Page 25 * Applicable only to the AeroNav 880 and AeroNav 905 COOL FEATURE ® Integrated WiFi/Bluetooth The AeroNav has an integrated WiFi/Bluetooth transceiver located underneath the BendixKing logo on the bottom of the bezel. No additional hardware is required to take advantage of this capability. 89000039-010 Rev 1 May 2019...
Page 26: Power Control
AeroNav will automatically start when the aircraft bus power is applied. Upon power application, the AeroNav display will show an BendixKing logo. It will take several seconds for the AeroNav to complete the power-up process. The power button can be used to turn the unit off and to turn the unit back on again.
Page 27: Brightness Controls
AeroNav 900/880 Series Pilot’s Guide BRIGHTNESS CONTROLS Each AeroNav has brightness controls to control both the bezel and the display brightness. The user can access individual controls to allow for either manual control of brightness, automatic control of brightness in response to the cockpit dimming controls/rheostats or automatic control of brightness in response to the ambient light sensor that is embedded in the bezel.
Page 28: Start-Up Sequence
START-UP SEQUENCE The startup sequence of the AeroNav is as follows:  An BendixKing logo will be displayed during system initialization and will be automatically removed when the AeroNav is initialized. The bezel keys will not be illuminated while the splash screen is present.
Page 29 AeroNav 900/880 Series Pilot’s Guide If there is no fuel flow system connected, then the unit progresses directly to the FMS page and FPL tab, ready for a flight plan to be entered. The agreement page, database expiration and fuel management entries are all skipped if the unit is powered on in-flight.
Page 30 AeroNav 900/880 Series Pilot’s Guide TIPS AND TECHNIQUES Bluetooth/Networking Initialization Period The Bluetooth and networking interfaces may experience a 1-2 minute delay during post-start initialization before becoming functional. The icons in the upper right corner of the display will turn green when the interfaces are ready for use.
Page 31: Database Currency States
AeroNav 900/880 Series Pilot’s Guide DATABASE CURRENCY STATES The following table describes the various database currency states that may be observed at startup: Database Status Message Color In Effect Valid Thru Light Green <Month, Day, Year> Has Expired Expired Yellow <Month, Day, Year>...
Page 32 AeroNav 900/880 Series Pilot’s Guide TIPS AND TECHNIQUES Manual Check of Database Dates Even if the databases are all current, you can still view the date/status of each database from the AUX page, Database Status display as described in Section 5 (page 5-57). 89000039-010 1-22 System Overview Rev 1 May 2019...
Page 33: Page Layout And Formats
AeroNav 900/880 Series Pilot’s Guide PAGE LAYOUT AND FORMATS The context-sensitive line select keys, top datablocks and nav source knob indication, and bottom edge set of page tabs are always displayed on every page. The AeroNav 900 and AeroNav 910 will also show radio frequencies in the upper left corner. The frequencies to be shown are configurable.
Page 34 AeroNav 900/880 Series Pilot’s Guide the page function key, press the left or right side of the key until the desired tab is selected. To select a tab using the touchscreen, just touch the desired tab. The last tab selected on any given page is retained in memory and will be displayed when you return to that page.
Page 35: Com-Nav
AeroNav 900/880 Series Pilot’s Guide COM-NAV † The VHF radio consists of a Com radio that covers the frequency band from 118.0 MHz to 136.990 MHz and a Nav radio that covers the frequency band from 108.0 MHz to 117.95 MHz. Both 25 kHz and 8.33 kHz spacing is supported.
Page 36 AeroNav 900/880 Series Pilot’s Guide COOL FEATURE Multiple Standby Frequencies The com (or nav) frequencies can be formatted to act as a type of quick directory when set up ahead of time. This can be handy in local area operations when just a few standard frequencies are expected to be used for a flight –...
Page 37 AeroNav 900/880 Series Pilot’s Guide COOL FEATURE Decoded Agency Identifier The agency (e.g. Ground, Tower, Approach) for the Active and each displayed Standby com frequency are displayed in each com frequency slot. This is a handy reminder of the agency to which you have tuned in each slot.
Page 38 AeroNav 900/880 Series Pilot’s Guide COOL FEATURE Monitor Standby Com The AeroNav will send the first standby com frequency audio to the audio panel for audio monitoring. This permits the pilot to monitor a second com channel (e.g. ATIS) while still connected to the active com channel.
Page 39 AeroNav 900/880 Series Pilot’s Guide the decimal point. The slot being tuned is highlighted in reverse video as shown below. Manual Com/Nav Tuning Reverse Video The #1 Standby frequency can also be tuned by touching the block on the display. When using this method, a virtual keyboard is displayed.
Page 40 AeroNav 900/880 Series Pilot’s Guide A more automated way to tune a com frequency is to use the frequency list, which is presented when the left knob is turned to start a manual tuning. See the section on page 1-33 regarding operation of the frequency list.
Page 41 AeroNav 900/880 Series Pilot’s Guide COOL FEATURE Shortcuts to Com Tuning Shortcuts are provided to aid speed and ease of manually entering a com frequency in the AeroNav. For example, there is no need to type the leading “1” for frequencies, the decimal point, trailing zeros or the thousandth digit.
Page 42 AeroNav 900/880 Series Pilot’s Guide Another capability that can be added during installation is a remote com frequency swapping function that performs the same action as pressing the bezel Frequency Swap button, including holding it down to tune the emergency frequency. Typically, the remote com frequency function is installed as a dedicated button on the yoke, allowing frequency swapping without removing hands from the controls.
Page 43: Frequency List
AeroNav 900/880 Series Pilot’s Guide FREQUENCY LIST † The frequency list is displayed by pressing the “FREQ” function key along the right edge of the bezel. It has three tabs along the top edge of the page:  Airport – the most logical com frequencies (e.g. ATIS, ASOS, AWOS, CTAF, Tower, Ground, Clearance Delivery) associated with either the origin airport or destination airport (when airborne and more than 5nm...
Page 44 AeroNav 900/880 Series Pilot’s Guide The list under each tab can be scrolled by swiping up or down on the touchscreen or by rotating the right inner knob. To move the cursor to the desired frequency, rotate the right inner knob or touch the frequency.
Page 45: Transponder Control And Display
AeroNav 900/880 Series Pilot’s Guide TRANSPONDER CONTROL AND DISPLAY If the AeroNav has been configured to communicate with a remote transponder, then the AeroNav will provide display and control of both transponder mode and code. Transponder Display The transponder mode and code is displayed in a datablock that can be configured to be displayed along the right and top sides of the display.
Page 46 AeroNav 900/880 Series Pilot’s Guide Transponder Keyboard Transponder Code Entry To enter a transponder code using a keyboard, touch a transponder mode/code datablocks to display a transponder keyboard, then enter the code. The new code is set after the fourth digit is entered. If an incorrect digit is entered, press the CLR button as required to backspace through the code.
Page 47 AeroNav 900/880 Series Pilot’s Guide  GND - The transponder will respond to Mode S ground interrogations from surface movement radar. This mode is only available in installations that send a ground/air discrete signal to transponder  SBY - The transponder is on, but will not reply to any interrogations Some aircraft installations include a ground/air state input, such as a gear squat switch or discrete input from an AeroNav.
Page 48: Direct-To Operations
AeroNav 900/880 Series Pilot’s Guide DIRECT-TO OPERATIONS A dedicated Direct-To function key is located along the right edge of the AeroNav bezel. Pressing that button from any page will display a green Direct-To dialog box that will be pre-populated with a logical waypoint. Direct-To Dialog and Confirmation Dialog Boxes If that pre-populated waypoint is the desired waypoint, press the “ENTR”...
Page 49 AeroNav 900/880 Series Pilot’s Guide approach). When the desired waypoint is displayed, press the knob in to accept;  Touch the waypoint field in the pop-up green Direct-To dialog box to generate a virtual keyboard and type in the desired waypoint name. When the desired waypoint is displayed, press Enter on the keypad or bezel to accept;...
Page 50: Function Keys
AeroNav 900/880 Series Pilot’s Guide FUNCTION KEYS In addition to the Direct-To and Frequency List function keys that have already been described, the AeroNav has a Nearest (“NRST”) function key and an Enter (“ENTR”) function key and a Clear (“CLR”) function key that perform the following functions: ...
Page 51 AeroNav 900/880 Series Pilot’s Guide Pressing it a second time will step the reverse video over the Arrival field and present a drop down box of available published arrivals. Each subsequent press of the “PROC” key will step through all following destination airfield approaches and arrivals in the flight plan and wrap back around to the top of the flight plan.
Page 52: Touch Screen
AeroNav 900/880 Series Pilot’s Guide TOUCH SCREEN The AeroNav uses a capacitive touch screen technology that allows multi-touch operation (e.g. two-fingered pinch zoom). Many types of gloves can be used during touch screen operations. The AeroNav employs a “hybrid touch” design in that virtually every interaction can be accomplished either through bezel controls or touch.
Page 53 AeroNav 900/880 Series Pilot’s Guide Bezel-only Control Input Touch screen-only Control Functions Input Functions Selecting page function keys Map panning (e.g. changing the “major” pages of FMS, MAP, AUX) Power on/off Graphical Flight Planning (“Rubber banding”) Changing the Primary Nav Calling up a map page info Source Starting the Frequency List...
Page 54 AeroNav 900/880 Series Pilot’s Guide Virtual Alpha Keyboard Virtual Numeric Keyboard Each keyboard has a scratchpad in the lower right corner. The scratchpad is a free text field for data entry with some data entry validity logic applied to the data that is trying to be entered. For example, when trying to enter an invalid frequency, the com 89000039-010 1-44 System Overview...
Page 55 AeroNav 900/880 Series Pilot’s Guide tuning application will immediately sense that entry to be invalid and present an alert box stating the entry is invalid.† Validity logic is not applied on cross-side keyboards in dual AeroNav installations. Invalid Keyboard Entry Alert TIPS AND TECHNIQUES Optimal Touch Performance To maximize touch performance, the more surface...
Page 56: Use Of External Keyboard
AeroNav 900/880 Series Pilot’s Guide USE OF EXTERNAL KEYBOARD The AeroNav is capable of taking input from an external, properly paired, Bluetooth keyboard. It is intended to be used in lieu of, or in conjunction with, the AeroNav touchscreen keyboard. Anywhere and anytime the AeroNav touchscreen keyboard is used to enter data (e.g.
Page 57 All labeled keys are fully functional. The light bulb key turns on backlighting for the keyboard. The vertical two-headed arrow key is primary/#1 standby swap †. The BendixKing logo key is a space bar. The up/down arrow keys can be used for page navigation in the same way the inner and outer rings of the bottom right AeroNav knob can navigate through page fields.
Page 58: Dual Aeronav Operations
AeroNav 900/880 Series Pilot’s Guide DUAL AERONAV OPERATIONS Some installations may involve two AeroNavs (e.g. AeroNav 900- AeroNav 900, AeroNav 900-AeroNav 800, AeroNav 800-AeroNav 800) that can work in a more integrated fashion. Method of Data Share (Dual AeroNav Operations) Dual AeroNavs will be connected via the Byteflight digital Databus.
Page 59 AeroNav 900/880 Series Pilot’s Guide  Enables fuel planning (e.g. initial fuel entry) to be synchronized across both AeroNavs  Enables user waypoints to be synchronized across both AeroNavs  Enables sensor settings and data (traffic, datalink, lightning, air data, etc) to be shared across both AeroNavs.
Page 60 AeroNav 900/880 Series Pilot’s Guide NOTE Sensor and Control Data Sharing Requires Consistent Software Versions For complete data sharing between dual AeroNavs, both units will need to have the same main software version. If the AeroNavs have different software versions, then the sensor and control data (e.g. weather, traffic, fuel, volumes, keyboard convenience mode, etc) will not be shared between the AeroNavs.
Page 61  Calculators and Utilities data NOTE Data Sharing Tolerates Inconsistent Databases While BendixKing strongly recommends the databases on each AeroNav be kept up-to-date and on the same cycle, data sharing between AeroNavs as defined above in “Data Sharing (Dual AeroNav Operations)”...
Page 62: Wifi (Network) Operations
The supported capability and third party applications supported are expected to grow over time. A list of applications and devices supported can be viewed https://www.bendixking.com/en/products/aeronav- gps-navigators The AeroNav is capable of supporting WiFi operations. Current supported functionality includes connectivity with third party applications running on WiFi capable devices including: ...
Page 63 AeroNav 900/880 Series Pilot’s Guide  Icons will appear gray when WiFi/Bluetooth is on, the startup dialog box is accepted and active but not connected.  Icons will appear green when WiFi/Bluetooth is on, the startup dialog box is accepted and connected. WiFi and Bluetooth Active, Not Connected Icons WiFi and Bluetooth Connected Icons If the user selects “Ignore”...
Page 64 AeroNav 900/880 Series Pilot’s Guide TIPS AND TECHNIQUES Quick Method to Sever WiFi/Bluetooth Link The power knob/button in the top left corner of the AeroNav can be used to sever the WiFi and Bluetooth link to the panel AeroNav. Press and hold the power knob/button down until the countdown box on the display appears and then let go.
Page 65: Waas Vs Non-Waas Operations
AeroNav 900/880 Series Pilot’s Guide WAAS VS NON-WAAS OPERATIONS The AeroNav supports both WAAS and non-WAAS operations. In each case, the AeroNav is still considered a “/G” system for flight plan filing purposes. When configured to be connected to an approved WAAS antenna at installation, the AeroNav serves as a fully-certified WAAS GPS navigator.
Page 66: Interaction With External Devices
GNS system. TIPS AND TECHNIEQUES Dual AeroNav Installations Should Only Use One WiFi For reliable WiFi operations, BendixKing recommends turning off WiFi (Network) from the User Options page on one of the AeroNavs. NOTE...
Page 67: Before Takeoff Techniques
If multiple pilots share the airplane, be sure to check User Options and datablock selections to ensure set up for your personal preferences. BendixKing recommends creating and using the Checklist utility and including a Before Takeoff checklist that meets your personal needs.
Page 68 AeroNav 900/880 Series Pilot’s Guide Blank Page 89000039-010 1-58 System Overview Rev 1 May 2019...
Page 69: Svs Subsystem
AeroNav 900/880 Series Pilot’s Guide 2 SVS Subsystem The Synthetic Vision System (SVS or SynVis) subsystem consists of a single page to aid in the pilot’s awareness of their spatial position relative to the terrain. SVS uses a GPS-based MSL altitude and a 9 arc-sec terrain database to display a 3D scene representing an “egocentric”...
Page 70: Synthetic Vision Page
AeroNav 900/880 Series Pilot’s Guide SYNTHETIC VISION PAGE If the AeroNav is receiving valid heading data, the circular green Total Velocity Vector (TVV)/Flight Path Marker (FPM) will be present in the display. The TVV/FPM indicates where the aircraft is actually going as compared to the yellow triangular Aircraft Reference Symbol (ARS) which indicates where the aircraft is pointing.
Page 71 AeroNav 900/880 Series Pilot’s Guide appear above that line, and conversely, terrain below the aircraft’s altitude will appear below that line. Placing the TVV/FPM above the terrain means that the airplane will clear the terrain and vice versa. The terrain data and 9 arc- second resolution used in creating the synthetic terrain depiction is the same data and resolution used in the FLTA and TAWS calculations for consistency.
Page 72 AeroNav 900/880 Series Pilot’s Guide The 3D traffic uses the same symbology as that in the traffic thumbnails and map overlays but the traffic depictions in the SynVis scene attempt to indicate relative threat level by size and symbol and are depicted at the relative altitude and bearing as received from the traffic sensor, consistent with the SynVis field of view.
Page 73 AeroNav 900/880 Series Pilot’s Guide Any airfield that is in the FMS database and in the SynVis field of view will be depicted in the SynVis scene with a METAR looking gray flag until the airfield is within 1.5nm at which time, the flag is removed and the runway outlines should be clearly visible.
Page 74 AeroNav 900/880 Series Pilot’s Guide SynVis Runway Depiction The User Options page provides a means to turn on/off cardinal heading tick marks and labels (e.g. N, NE, E, SE, etc) along the horizon line in the SynVis scene. Heading Horizon Tick Marks and Labels The User Options page also provides a means to turn on/off the Horizontal Deviation Indicator (HDI) in the SynVis scene and traditional blue/brown attitude indication view.
Page 75: Synthetic Vision With Datablocks
AeroNav 900/880 Series Pilot’s Guide HDI Turned On SYNTHETIC VISION WITH DATABLOCKS The default SynVis view shows radio controls, datablocks, and LSKs on the left and the entire right side of the display shows the SynVis scene. However, SynVis can be configured to show datablocks in a narrow area on the right side of the display.
Page 76: Synthetic Vision Obstacles
AeroNav 900/880 Series Pilot’s Guide SynVis with Datablocks SYNTHETIC VISION OBSTACLES Obstacles will be depicted in the SynVis scene out to 12nm. Standard high, low and grouping symbology is used to depict obstacles. Any obstacle in the database within a 5nm radius of the aircraft position and whose top is within 2000’...
Page 77 AeroNav 900/880 Series Pilot’s Guide Blue Obstacle Threat Bubbles Obstacles inside a 3nm radius of the aircraft position and whose top is between 100’ below aircraft altitude and 1000’ below aircraft altitude will generate a yellow threat bubble over the obstacle on the SynVis scene and the map pages.
Page 78 AeroNav 900/880 Series Pilot’s Guide Yellow Obstacle Threat Bubble Red Obstacle Threat Bubble 89000039-010 2-10 SVS Subsystem Rev 1 May 2019...
Page 79 AeroNav 900/880 Series Pilot’s Guide Yellow or red highlighted obstacles on the SynVis scene will also display the MSL altitude of the obstacle top. Depiction of non-threat obstacles in the SynVis scene is governed in part by the Map Setup page selections. If obstacle filtering is disabled on the Map Setup page, then all obstacles within 12nm will be displayed in the SynVis scene.
Page 80: Synthetic Vision Terrain Awareness
AeroNav 900/880 Series Pilot’s Guide SYNTHETIC VISION TERRAIN AWARENESS Any terrain that is within a 10nm radius of aircraft position and between 100’ below aircraft altitude and 1000’ below aircraft altitude will generate yellow hatched indications on the SynVis scene and the map pages. Any terrain that is within a 10nm radius of the aircraft position and is 100’...
Page 81: Svs Forward Looking Terrain Alerting (Flta)
AeroNav 900/880 Series Pilot’s Guide SVS FORWARD LOOKING TERRAIN ALERTING (FLTA) FLTA alerting is triggered by either a projected imminent impact with terrain or obstacle or reduced terrain and obstacle clearance. Projected imminent impact with terrain occurs when the TVV/FPM is projected to intersect with terrain up to 3.0nm (yellow caution) or up to 1.5nm (red warning) in front of the aircraft flight path.
Page 82 AeroNav 900/880 Series Pilot’s Guide Either terrain or obstacles can trigger FLTA alerts and they are distinguished via the CAS messaging and aural alerting. The difference between FLTA warnings and cautions is exclusively based on distance-to-go to projected impact points or reduced clearance areas.
Page 83: Flying Approaches With Synthetic Vision
AeroNav 900/880 Series Pilot’s Guide FLYING APPROACHES WITH SYNTHETIC VISION As noted above, if a flight plan is active in the FMS, it will be depicted in the SynVis scene, presuming it falls within the current SynVis field of view. The lateral deviation Horizontal Deviation Indicator (HDI) and vertical deviation Vertical Deviation Indicator (VDI) will be automatically displayed and the arrowhead pointers indicate the...
Page 84 AeroNav 900/880 Series Pilot’s Guide TIPS AND TECHNIQUES Adjustable Field of View on Final Approach Use the bottom right bezel knob to zoom the SynVis scene in during instrument approaches to get a temporary close-in look of the landing runway. The current field of view setting is displayed in the knob label when something other than 45°...
Page 85 AeroNav 900/880 Series Pilot’s Guide The active runway in the FMS flight plan is highlighted with a magenta outline drawing the airfield identifier flag is “planted” at the runway threshold, if known, or airport reference point if not. SynVis Runway Depiction 89000039-010 Rev 1 May 2019 SVS Subsystem 2-17...
Page 86 AeroNav 900/880 Series Pilot’s Guide As on the FMS pages, the L4 LSK will toggle to “Retry Approach” when on the published missed. Retry Approach Option While On Missed Approach Deviations are indicated by both the SynVis scene depiction and the horizontal and vertical deviation indicators.
Page 87 AeroNav 900/880 Series Pilot’s Guide above glideslope. A pegged deviation indicator is displayed in yellow. Deviation Indicators 89000039-010 Rev 1 May 2019 SVS Subsystem 2-19...
Page 88 AeroNav 900/880 Series Pilot’s Guide Many published missed approaches contain a hold pattern. The AeroNav FMS will enter the hold as published and remain in the hold indefinitely until commanded to exit the hold via the L4 LSK. Established in Hold with Option to Exit 89000039-010 2-20 SVS Subsystem Rev 1 May 2019...
Page 89 AeroNav 900/880 Series Pilot’s Guide Once the “Exit Hold” LSK has been selected, the AeroNav FMS will exit the hold at the published fix. Exit Hold Has Been Commanded 89000039-010 Rev 1 May 2019 SVS Subsystem 2-21...
Page 90: Svs Page Variations
AeroNav 900/880 Series Pilot’s Guide SVS PAGE VARIATIONS If there is no valid heading input to the AeroNav, the TVV/FPM is removed from the SynVis scene and the directional indication is labeled “TRK” indicating GPS track as the source. SynVis with no Heading Input If the SynVis scene is turned off, the page reverts to a more traditional blue over brown AI-like look.
Page 91 AeroNav 900/880 Series Pilot’s Guide Extreme Attitude Depiction At extreme pitch/flight path angles, both positive and negative, the horizon line will detach from the terrain (or traditional blue/brown AI) such that there will always be a strip of blue/sky or brown/ground visible to aid in initiating unusual attitude recoveries.
Page 92: Operational Limits Of The Ars
 Static and dynamic attitude performance to +/-60° for Pitch and Roll The AeroNav 910/905 ARS is aided by the GPS data that it receives. In the event that the unit losses GPS integrity, the ARS performance will be degraded.
Page 93 AeroNav 900/880 Series Pilot’s Guide If the ARS data (mark pitch, roll and heading) becomes invalid, the ARS page will display a red "X". Once the aircraft has returned to straight and level flight, press the “Restart ARS” button or soft key and maintain straight and level flight for at least 30 seconds.
Page 94 AeroNav 900/880 Series Pilot’s Guide Blank Page 89000039-010 2-26 SVS Subsystem Rev 1 May 2019...
Page 95: Fms Subsystem
AeroNav 900/880 Series Pilot’s Guide 3 FMS Subsystem The Flight Management System (FMS) pages are where flight plans are created, modified, stored and deleted. Ground operations are the ideal time to enter the intended flight plan into the FMS. The FMS Page has five tabs, as shown below, The FPL tab is used to manage the flight plan, The flight plan contains the sequence of legs to which the FMS will provide guidance.
Page 96: Fpl (Flight Plan) Tab
AeroNav 900/880 Series Pilot’s Guide FPL (FLIGHT PLAN) TAB FMS BASIC CONCEPTS For properly configured dual AeroNav installations, enter your plan into only one of the AeroNavs and the data is automatically shared between them. NOTE FMS Centric Calculations The FMS presumes the pilot intends to fly the flight plan as created.
Page 97 AeroNav 900/880 Series Pilot’s Guide There are three types of cursors – an insert cursor, an edit cursor, and a field cursor. An insert cursor appears as a thin cyan horizontal line that appears between flight plan row. This cursor allows you to insert new legs and procedures at that position.
Page 98: Creating A New Flight Plan
AeroNav 900/880 Series Pilot’s Guide Flight plan editing When the cursor is an insert or a field cursor, an operation can be initiated by pressing the right knob button. Operations can also be initiated using the touchscreen by touching the cursor. For an insert cursor, initiating an operation will usually cause a dropdown to appear, but in some cases an edit will be immediately started.
Page 99 AeroNav 900/880 Series Pilot’s Guide origin is not the point you want to start from, delete the pre- populated origin value via the CLR button and a new Origin/Waypoint dropdown is presented from which a new starting point can be entered. An “origin” must be an airport whereas a “waypoint”...
Page 100: Previewing Flight Plans
AeroNav 900/880 Series Pilot’s Guide If a flight plan has more legs than can be displayed on a single page, a scroll bar is presented along the right edge of the flight plan. It indicates where the viewable window is with respect to the entire flight plan as well as where the active leg in the flight plan is.
Page 101 AeroNav 900/880 Series Pilot’s Guide legs as the system determines the optimum map range for display. This feature provides a graphical preview of the edited route before it is officially part of the flight plan to aid in situational awareness. The preview feature is available whether modifications are being made on the ground or airborne.
Page 102 AeroNav 900/880 Series Pilot’s Guide TIPS AND TECHNIQUES Flight Plan View The flight plan tab of the FMS page provides a means to show every leg of the flight plan (“Expanded”) or an abbreviated version of the flight plan (“Compact”) via the “View” LSK. The compact view hides all intermediate legs of an airway between the entry and exit point.
Page 103: Selecting A Departure
AeroNav 900/880 Series Pilot’s Guide SELECTING A DEPARTURE If a published departure exists for the origin airport, then a dropdown containing available departures can be displayed by rotating the right inner knob to highlight the departure field for the origin airport and then pressing the knob button. Departures Dropdown TIPS AND TECHNIQUES Vector Standard Instrument Departure (SID)
Page 104 AeroNav 900/880 Series Pilot’s Guide of an enroute transition and a runway transition. The structure of the departure and the presence of a selected runway will impact whether a specific dropdown is presented. The FMS processes enroute transitions first. If the departure has more than one published enroute transition, the FMS will present a dropdown showing those transitions and a transition must be selected.
Page 105 AeroNav 900/880 Series Pilot’s Guide COOL FEATURE If a departure has at least one enroute transition and the departure has a common segment after runway transitions from which all enroute transitions are started, the dropdown menu will contain an option for "None".
Page 106: Inserting A Waypoint
AeroNav 900/880 Series Pilot’s Guide Departure Runway Transition Dropdown If the inserted departure had a selected runway transition and either the airport had no selected runway or the selected runway was not applicable to the departure, then the FMS will set the runway for the airport based on the runway transition that was selected.
Page 107: Inserting An Airway
AeroNav 900/880 Series Pilot’s Guide COOL FEATURE When an insert cursor is displayed at a position where it is legal to insert a waypoint, pressing a letter on a Bluetooth keyboard will immediately start a waypoint identifier entry with that letter. COOL FEATURE If you are on another FMS page and the cursor is around an identifier that can be used as a waypoint,...
Page 108 AeroNav 900/880 Series Pilot’s Guide To insert an airway into the flight plan, move the cursor to a position after the leg where the airway will be joined. It will be an insert cursor. Press the right knob button to bring up the dropdown menu containing the options available after that leg.
Page 109: Deleting A Waypoint
AeroNav 900/880 Series Pilot’s Guide Airway Exit Points DELETING A WAYPOINT From the FPL tab, use the bottom right knob on the AeroNav to scroll up and down the flight plan until the edit cursor surrounds the waypoint to be deleted. Press the “CLR” button on the right side of the bezel to delete the waypoint.
Page 110: Editing A Waypoint
AeroNav 900/880 Series Pilot’s Guide EDITING A WAYPOINT From the FPL tab, the bottom right knob on the AeroNav can be used to edit an existing waypoint. Using the knob, scroll up or down the flight plan until an edit cursor surrounds the waypoint to be modified.
Page 111: Entering And Intercepting A Radial
AeroNav 900/880 Series Pilot’s Guide The default value for the crossing distance is 5.0nm for airports and 0.0nm for all other waypoints. The only waypoints that do not permit altitude constraints are:  Origin  Destination, if it has an approach selected ...
Page 112: Deleting A Flight Plan
AeroNav 900/880 Series Pilot’s Guide The FMS Course function will always be armed (i.e. it will always intercept the flight plan) in a To intercept. If the airplane is in a From course, it will intercept only if the dialed course trajectory intercepts the flight plan.
Page 113 AeroNav 900/880 Series Pilot’s Guide Alternatively, use an insert cursor by positioning it where you want to insert a hold in your flight plan. Push in the bottom right AeroNav knob or touch the position on the glass. Note that a hold is available via the drop down list.
Page 114: Circular Orbits
AeroNav 900/880 Series Pilot’s Guide CIRCULAR ORBITS If the optional Search and Rescue (SAR) / Special Use Mission package is active, then circular orbits can be added to the plan. Circular Orbit Depiction on Map 89000039-010 3-20 FMS Subsystem Rev 1 May 2019...
Page 115 AeroNav 900/880 Series Pilot’s Guide The function is activated on the FMS Setup page by setting the "Patterns" field to “On”. Circular Orbit Pattern Selection in FMS Setup Once on, the leg type is selected just like all other leg types but is only available after a leg that is not part of a terminal procedure.
Page 116 AeroNav 900/880 Series Pilot’s Guide Select the “Orbit <waypoint>” option in the standard FMS insert cursor drop down list. Circular Orbit Dropdown Selection 89000039-010 3-22 FMS Subsystem Rev 1 May 2019...
Page 117: Deleting A Holding Pattern
AeroNav 900/880 Series Pilot’s Guide The orbit radius can range from 0.5nm to 100nm. The FMS will not actually fly to the orbit fix and instead, will fly to the point where the leg to the fix intercepts the orbit. Orbit Row in Flight Plan If the orbit radius is larger than the distance from the aircraft to the orbit fix, then the aircraft will intercept the orbit on the...
Page 118: Editing A Holding Pattern
AeroNav 900/880 Series Pilot’s Guide EDITING A HOLDING PATTERN To edit a holding pattern, rotate the right outer knob to scroll until an edit cursor surrounds the hold, or touch the hold to be edited. Then rotate the right inner knob or touch the field to be edited to highlight the desired field (e.g.
Page 119: Lateral Offsets
AeroNav 900/880 Series Pilot’s Guide the “Activate Leg” LSK followed by accepting the confirm dialog box when it is displayed. Doing so will turn that leg magenta, confirming that it is now the active leg. TIPS AND TECHNIQUES Impending Turn Notification If flying the defined flight plan, the AeroNav will provide a message about an impending turn that includes the upcoming desired track (DTK) and a 10...
Page 120: Flight Plan Discontinuities (Gaps)
AeroNav 900/880 Series Pilot’s Guide lateral offset, press the “Delete Offset” LSK. The maximum offset that can be dialed in is 20 NM. Lateral offsets are not available when in OBS mode. Lateral offsets are unaffected by graphical route planning (“rubber banding”) operations. Lateral Offset Map Depiction FLIGHT PLAN DISCONTINUITIES (GAPS) A “Gap In Route”...
Page 121: Enroute Descents
Gap with the waypoint that follows by a direct (straight) leg. Connecting Gap in Route BendixKing recommends that you input the arrival and approach for the destination airfield and alternates into the FMS flight plan. Selecting a published arrival and/or approach will automatically load the procedure including all altitude constraints into the FMS.
Page 122 AeroNav 900/880 Series Pilot’s Guide To generate the TOD feature:  There must be an altitude constraint defined on at least one down-path waypoint at least 50’ below present altitude  There must be a valid GPS MSL Altitude or Baro Altitude ...
Page 123 AeroNav 900/880 Series Pilot’s Guide COOL FEATURE Range to Altitude Indication A small green arc will be drawn on the map that depicts the geographic point where, at the current vertical speed, the aircraft will reach the altitude target. The altitude target is any crossing restriction on a waypoint that is either manually entered or a part of a procedure.
Page 124: Entering An Arrival And Approach
AeroNav 900/880 Series Pilot’s Guide COOL FEATURE Enter Approaches for Multiple “Destinations” The FMS will allow multiple airfields or destinations to be built into the flight plan. Each can have the published approach and missed approach as part of the plan. This is useful in pre-building your primary destination with a missed approach, expected alternate and its published approach.
Page 125 AeroNav 900/880 Series Pilot’s Guide right knob button to start inserting the procedure using a dropdown. If the cursor is positioned above the airport (i.e. an Insert Cursor), the dropdown may contain more items than just arrivals and/or approaches. The examples below use destination field method for clarity.
Page 126 AeroNav 900/880 Series Pilot’s Guide Approach Transitions Dropdown After having selected the procedure, including related transitions, the legs will be inserted into the flight plan and the corresponding destination airport field will contain the name of the procedure that was just inserted. In expanded view, a white bracket will be presented along the left side of the legs in the procedure, labeled with the name of the procedure.
Page 127 AeroNav 900/880 Series Pilot’s Guide COOL FEATURE PROC button The PROC function key on the bezel acts as a shortcut for attaching a published arrival or approach procedure to a waypoint in your flight plan. It can be used at any time. The first press of the function key results in the AeroNav displaying the FPL tab (Map- FPL view) of the FMS page with the cursor on the Approach field of the next destination after the active...
Page 128: Activating A Leg
AeroNav 900/880 Series Pilot’s Guide ACTIVATING A LEG To activate a different leg of the flight plan from the FPL tab, either use the bottom right AeroNav knob or touch the desired leg to highlight it and then select the “Activate Leg” L2 LSK. Activating a Leg TIPS AND TECHNIQUES Deleting an Approach From Active Flight Plan...
Page 129: Use Of The Map Fpl Split Page
AeroNav 900/880 Series Pilot’s Guide USE OF THE MAP FPL SPLIT PAGE The Map-FPL split tab on the FMS page presents the moving map on the left and the FMS flight plan in a thin strip on the right. While it can be useful in many phases of flight and scenarios, the split page is especially helpful during arrivals.
Page 130 AeroNav 900/880 Series Pilot’s Guide symbol crosses the boundary of the chart extent box, this is a good time to switch over to the Chart tab on the MAP page. Chart Extent Box COOL FEATURE Hot Links to Charts in Flight Plan Whenever a flight plan leg (blue airfield legs) has at least one published approach associated with it, a chart icon is presented on the right edge of the flight...
Page 131 AeroNav 900/880 Series Pilot’s Guide Hot Links to Charts COOL FEATURE METAR Flags in Flight Plan When a weather datalink device is installed in the airplane and providing METAR data to the AeroNav, color METAR flags will be included in the flight plan leg depiction along the right edge.
Page 132: Info Tab
AeroNav 900/880 Series Pilot’s Guide INFO TAB The INFO tab of the FMS page provides additional information about airports, navaids, and waypoints. Info Tab The facility (airport, navaid, waypoint) to which the information applies will stay locked to the top of the page; the identifier field is an editable field.
Page 133 AeroNav 900/880 Series Pilot’s Guide AeroNav knob to highlight the frequency field and push the knob to nominate it into the standby slot. † Depending on the type of facility being displayed, there are up to 7 category fields of information associated with the facility that can be expanded (via the + symbol) or compacted (via the –...
Page 134 AeroNav 900/880 Series Pilot’s Guide  Departures – identifies the published departures associated with the airport and when an individual row has been selected via touch or the bottom right AeroNav knob, it can further expand to provide a thumbnail map depiction of the departure ...
Page 135 AeroNav 900/880 Series Pilot’s Guide Weather Data on Info Tab Info Tab Nearby Navaids 89000039-010 Rev 1 May 2019 FMS Subsystem 3-41...
Page 136: Route Tab
AeroNav 900/880 Series Pilot’s Guide ROUTE TAB The ROUTE tab provides mechanisms for managing stored routes in the system. Up to 100 routes can be stored for later use, which is useful for frequently traveled routes. A stored route must first be “activated”...
Page 137: Creating A New Route
AeroNav 900/880 Series Pilot’s Guide A cyan cursor surrounds the row in the stored routes list on which operations are to be performed. The cursor can be moved by rotating the right outer or inner knob or by touching a row. When the cursor surrounds a given row, selecting that row by pressing an LSK, pressing the right knob, or touching the same row will perform the corresponding action on that row.
Page 138: Copying A Route
AeroNav 900/880 Series Pilot’s Guide To manually set the route name, move the cursor to the route name field and then press the right knob button or touch the field. Either use the keyboard or rotate the right outer and inner knobs to enter the name.
Page 139: Inverting A Route
AeroNav 900/880 Series Pilot’s Guide the flight plan into a stored route. At that point, the saved version is like any other stored route. Copy Route LSK TIPS AND TECHNIQUES Route Previewing Experimentation with routes without altering the active route (e.g. setting up multiple arrival scenarios when still far from destination) can be accomplished by copying the active route on the Route tab, renaming it for clarity, and editing as desired.
Page 140 AeroNav 900/880 Series Pilot’s Guide An inverted copy of the route will have been created and the route will be presented for editing. It is possible to invert the active flight plan by highlighting the "Current Route" row and pressing the "Invert" LSK. Pressing the "Back To Route List"...
Page 141: Activating A Route
AeroNav 900/880 Series Pilot’s Guide ACTIVATING A ROUTE When a stored route is activated, a copy of that stored route will replace the flight plan and the aircraft will start providing guidance to it. To activate a stored route, from the stored routes list, highlight the desired route from the ROUTE tab by either touching the row or using the bottom right AeroNav knob.
Page 142 AeroNav 900/880 Series Pilot’s Guide either touching the dialog box or pressing the “ENTR” function key along the right edge of the display. Deleting a Route COOL FEATURE The flight plan can be deleted by moving the cursor to surround the "Current Route" row, then pressing the CLR key.
Page 143: Wpt (User Waypoints) Tab
AeroNav 900/880 Series Pilot’s Guide WPT (USER WAYPOINTS) TAB The WPT tab will list all user waypoints in the AeroNav. Up to 500 user waypoints can be stored and accessed on this page. User Waypoints Tab CREATING A USER WAYPOINT There are 4 methods of creating a user waypoint from the “WPT”...
Page 144: Naming A User Waypoint
AeroNav 900/880 Series Pilot’s Guide desired navaids and radials either by touching the target field and then using the virtual keyboard or by using a combination of twists and pushes of the bottom right AeroNav knob to enter the data. Press the “Enter” LSK to save that new waypoint.
Page 145: Designating A User Waypoint As An Airfield
AeroNav 900/880 Series Pilot’s Guide DESIGNATING A USER WAYPOINT AS AN AIRFIELD To designate a user waypoint as an airfield, the waypoint must be manually named using the format “AIRPORT XXXXXFT” where XXXX is the field’s elevation and note that the space is critical in naming the point.
Page 146 AeroNav 900/880 Series Pilot’s Guide When used in a flight plan, the user-defined airport will display as an airfield with no known runway orientation. User Waypoint Airfield Depiction on Map 89000039-010 3-52 FMS Subsystem Rev 1 May 2019...
Page 147: Nrst (Nearest) Tab
AeroNav 900/880 Series Pilot’s Guide NRST (NEAREST) TAB The Nearest page has two display formats – full page Nearest and a split Map-Nearest combination. Switching between the two formats is accomplished by “opening” or “closing” the side tab when on the Nearest page. Full Nearest Tab The “Nearest”...
Page 148 AeroNav 900/880 Series Pilot’s Guide Split Nearest Tab When using the split Map-Nearest view, the row that is highlighted in the Nearest list will also be highlighted in cyan on the map. For those rows that contain a frequency, touching the frequency, or using the bottom right AeroNav knob to highlight it and then pushing the knob will nominate the frequency into the #1 standby slot.
Page 149 AeroNav 900/880 Series Pilot’s Guide Each Nearest type list can be scrolled either via touch (use a vertical swipe of the finger) or via the bottom right AeroNav knob. If the highlighted item is an airport, pressing the Direct-To function key on the bezel will display the Direct-To green dialog box with the highlighted airport pre-populated as the Direct-To location.
Page 150 AeroNav 900/880 Series Pilot’s Guide NOTE Nearest Lists Capped at 100nm Most Nearest lists will only display entries that are within 100nm of the current aircraft position. ARTCCs use 200nm. 89000039-010 3-56 FMS Subsystem Rev 1 May 2019...
Page 151: Map Subsystem
AeroNav 900/880 Series Pilot’s Guide 4 Map Subsystem The map subsystem contains several page as shown below. The SVS tab shows an exocentric synthetic vision view around the aircraft. The MAP tab shows a plan view representation of the environment around the aircraft, much like a sectional chart.
Page 152: Map Tab
AeroNav 900/880 Series Pilot’s Guide MAP TAB The map has several formats and views. There is both a full map depiction as well as a datablock map depiction. In both cases, you have the ability to control the map feature density as well as the various overlays, all via the LSKs along the left edge of the display.
Page 153 AeroNav 900/880 Series Pilot’s Guide  Heading Up or Track Up (360°)  Heading Up or Track Up (240° arc view)  North Up (360°) Heading vs. Track selection is made from the “Map Orientation” selection on the User Options – SETUP tab of the AUX page. North-Up, 360 View Example 89000039-010 Rev 1 May 2019...
Page 154 AeroNav 900/880 Series Pilot’s Guide North Up can be either Magnetic North or True North depending on the “Bearing Reference” selection on the User Options – SETUP tab of the AUX page. Track-Up, Arc View Example TIPS AND TECHNIQUES Map Content Control Map features displayed are highly dependent on a combination of the map view, map range, map declutter settings, and user setup choices.
Page 155 AeroNav 900/880 Series Pilot’s Guide NOTE Heading vs. Track Depictions In configurations in which aircraft heading information is unavailable, the map display will orient the aircraft ownship symbol and other map data to the aircraft ground track and continue to display intruder aircraft oriented to heading.
Page 156: Other Map Features
AeroNav 900/880 Series Pilot’s Guide OTHER MAP FEATURES The table below defines other map features. Map Symbol Item Description Desired Track Solid magenta triangle on inside edge of map compass rose Heading Select For those installations (“Heading Bug”) where the AeroNav is receiving heading select (aka heading “bug”) data, a hollow magenta...
Page 157 AeroNav 900/880 Series Pilot’s Guide Map Symbol Item Description 1000’ AGL or higher Single high obstacle (blue) Grouping of high 2 or more high obstacles (1000’ AGL or higher) obstacles within 1 nm of each other (blue) Towered airport, If runway orientation is hard known, they are also depicted on the airfield...
Page 158 AeroNav 900/880 Series Pilot’s Guide Map Symbol Item Description Flight plan, course Each waypoint in flight waypoints plan (white) Interstate highway All interstate highways in the database (solid brown) Class A Each boundary of Class A airspace (solid red line) Class B Each boundary of Class B airspace (solid blue)
Page 159 AeroNav 900/880 Series Pilot’s Guide Map Symbol Item Description Terrain scale Indicates highest and lowest limits of the terrain in displayed area in hundreds of feet. Legend colors in between these values represent terrain elevations. Blue obstacle clearance number shows the top of the highest obstacle, when greater than the highest displayed terrain.
Page 160: Fuel Range Rings
AeroNav 900/880 Series Pilot’s Guide TIPS AND TECHNIQUES Scenarios for Airspace Aural Alerting A technique for the use of aural airspace alerting is to turn it on via the Users Options page when flying in non- familiar areas, especially when operating under VFR. Experience has shown that local area flights in familiar airspace or when operating under IFR can result in what may be considered nuisance calls.
Page 161 AeroNav 900/880 Series Pilot’s Guide Fuel range rings with remaining reserves Fuel range rings with less than reserve remaining 89000039-010 Rev 1 May 2019 Map Subsystem 4-11...
Page 162: Decluttering The Map
AeroNav 900/880 Series Pilot’s Guide DECLUTTERING THE MAP Two LSKs along the left edge of the display allow for separate control of the information density of the land-based (“Land”) map features (e.g. terrain, political boundaries, rivers, lakes, oceans, roads, etc.) and the navigational-based (“Nav”) map features (e.g.
Page 163: Map Panning
AeroNav 900/880 Series Pilot’s Guide MAP PANNING Panning the map is accomplished by dragging a finger along the display in the direction of desired panning. When panning away from the ownship depiction, a cross-hair cursor is displayed and a readout of the bearing and distance from present position to the cross-hair cursor position is displayed next to the cross-hair cursor.
Page 164: Graphical Flight Planning ("Rubber Banding")
AeroNav 900/880 Series Pilot’s Guide GRAPHICAL FLIGHT PLANNING (“RUBBER BANDING”) A flight plan can be altered graphically by touching the desired leg or the desired waypoint on the map depiction, placing your finger on the leg for approximately 2 seconds until the leg turns cyan, and then, without lifting your finger off the display, dragging your finger to the desired location.
Page 165 AeroNav 900/880 Series Pilot’s Guide can easily be seen if the AeroNav were on the FPL tab of the FMS page and using the split Map-FPL view. TIPS AND TECHNIQUES Optimal Rubber Banding If you don’t see the desired leg turn cyan within 2 seconds of placement of your finger on the location, try slightly adjusting the placement of the finger that is being used to designate a leg for rubber banding.
Page 166: Altitude Constraints On Map
AeroNav 900/880 Series Pilot’s Guide ALTITUDE CONSTRAINTS ON MAP Any waypoint that has an altitude constraint defined for it in the flight plan, including all published procedures, will display a graphical indication of the altitude constraint on the map. The three types of altitude constraints are: ...
Page 167 AeroNav 900/880 Series Pilot’s Guide on the display. A few examples are depicted in the images below. Note that in every case, there is a page count in the bottom right corner of each pop-up box. For those boxes that indicate more than one page (e.g.
Page 168: Datalink Weather Overlays And Operations
RADAR as well as other information such as winds aloft, TFRs, lightning, etc. Product availability depends on the product and/or level of subscription chosen. See the AeroNav product details page https://www.bendixking.com/en/products/aeronav-gps-navigators for a complete list of supported weather products and expected product refresh rates.
Page 169: Datalink Radar
AeroNav 900/880 Series Pilot’s Guide NOTE Datalink Data Accuracy BendixKing does not control, review, or edit the information made available by the datalink products, and is therefore not responsible for the accuracy or timeliness of that information. NOTE Datalink Data Intended to Aid Decision Making...
Page 170 AeroNav 900/880 Series Pilot’s Guide precipitation types and is overlaid on top of any other map features, including terrain alerting. Datalink Precipitation Example Weather Data Legend At large map ranges beyond 250nm from the aircraft, small areas of high-intensity RADAR returns may not be displayed; instead, larger areas of surrounding lower-intensity RADAR returns will be shown.
Page 171 AeroNav 900/880 Series Pilot’s Guide Diagonal stripes show the Datalink radar data no coverage area. In normal operation the boundary follows the outline of the Continental United States (CONUS). If, however, Datalink radar is unavailable in a particular area for any reason, hatched lines appear in that area. In the mountains and off the coast, hatched lines may represent no coverage below 10,000 feet.
Page 172: Weather Overlays On Map
AeroNav 900/880 Series Pilot’s Guide WEATHER OVERLAYS ON MAP The “Wx Overlay” LSK on the map page brings up a control page on which the layer combinations can be turned on or off. Wx Overlay Selection The options vary with the installed datalink device and subscription level.
Page 173 For those installations with dual AeroNavs and more than one type of weather source (e.g. GDL-69 and a SkyTrax100) in the aircraft, BendixKing recommends wiring one weather source to one AeroNav and the other weather source to the second AeroNav.
Page 174 AeroNav knob. Note that when there is an on-board lightning sensor selected (BendixKing TWX670 Tactical Weather System or L3 WX500 Stormscope), the “Lightning” grouping will also include a “Clear Strikes” function key. A WX-500 Lightning sensor test is only available in maintenance mode.
Page 175 AeroNav 900/880 Series Pilot’s Guide flags allow an overview of general weather conditions in an area. Graphical METAR Legend  AIRMETs and SIGMETs (US only) – These are areas where the National Weather Service has issued advisories for various types of hazardous weather. They are depicted on the Map page along with an abbreviated description of the hazard, such as “ICE”...
Page 176: Tfrs
AeroNav 900/880 Series Pilot’s Guide COOL FEATURE METAR Flags in Flight Plan The right edge of each leg in a flight plan presents a METAR flag for the closest reporting station, if the station is different from the previous leg’s station. The station for which the METAR flag applies is decoded immediately beneath the flag and may not be exactly the same location as the leg itself.
Page 177: Indications Of Data Age
AeroNav 900/880 Series Pilot’s Guide INDICATIONS OF DATA AGE The multiple products transmitted as part of the Broadcast Datalink service can arrive at different intervals. Two indicators at the bottom corners of each map provide an easy-to-use indication of data age. If a Datalink Icing product was selected for display via the “Wx Overlay”...
Page 178: Weather Radar Selection For Map Overlay
AeroNav 900/880 Series Pilot’s Guide Data Age: RADAR and Icing WEATHER RADAR SELECTION FOR MAP OVERLAY Support for digital weather radar is an optional capability for the AeroNav. When this option has been activated on an AeroNav, and if the AeroNav has access to heading data, radar data can also be a selectable overlay on the moving map.
Page 179 AeroNav 900/880 Series Pilot’s Guide Onboard Weather Radar Overlay on Map TIPS AND TECHNIQUES Onboard Weather Radar Overlay Usage There are no controls of the onboard weather radar from the map page – it is simply an on/off layer. The map can be decluttered to remove non-essential map content but still provide map and flight plan graphical situational awareness and a more typical weather radar...
Page 180: Terrain
AeroNav 900/880 Series Pilot’s Guide Decluttered Map with Onboard Weather Radar Overlay TERRAIN Both Terrain Awareness (TA) and Forward Looking Terrain Alerting (FLTA) are meant to serve as an aid to situational awareness. They are intended to provide terrain and obstacle awareness in the proximity of your aircraft.
Page 181: Terrain Awareness (Ta)
AeroNav 900/880 Series Pilot’s Guide TERRAIN AWARENESS (TA) TA is for general situational awareness purposes and consists of hatched terrain on any map page. TA will not generate a CAS message or aural alert. Terrain Awareness (TA) TA can be triggered by either terrain or obstacles (e.g. towers > 200’ AGL tall buildings, etc).
Page 182 AeroNav 900/880 Series Pilot’s Guide over the obstacle. Obstacles inside a 1.5nm radius of the aircraft position and whose top is between 100’ below aircraft to anything above aircraft altitude will generate a red threat bubble over the obstacle. TA can be turned off via the “User Options” LSK of the SETUP tab on the AUX page.
Page 183: Forward Looking Terrain Alerting (Flta)
AeroNav 900/880 Series Pilot’s Guide FORWARD LOOKING TERRAIN ALERTING (FLTA) The FLTA function looks ahead of the airplane projecting the airplane’s lateral and vertical flight path and provides suitable alerts if a potential terrain or obstacle threat exists. FLTA alerting is triggered by either a projected imminent impact with terrain or obstacle or reduced terrain and obstacle clearance.
Page 184 AeroNav 900/880 Series Pilot’s Guide FLTA “flashlight” projected terrain impact point to appear on top of a larger hatched yellow TA depiction. FLTA Depiction (solid red and solid yellow) It is possible to have multiple terrain and obstacle FLTA caution and warning conditions at the same time.
Page 185 AeroNav 900/880 Series Pilot’s Guide runway suppression area, no FLTA alert will be generated. Obstacle threat bubbles can still appear inside the suppression area. FLTA alerts are inhibited if any of the following conditions are met:  FLTA is manually turned off via the pilot-accessible “User Options”...
Page 186: 500' Callout
AeroNav 900/880 Series Pilot’s Guide NOTE FLTA Disabled in External TAWS Equipped Aircraft In order to prevent possibly conflicting alerting information, when an external TAWS/EGPWS system in installed in the airplane as determined by the “External TAWS” field selection on the “Main System Config” page at time of installation, all FLTA functionality is turned off, including the “FLTA Off”...
Page 187: Terrain Alerting Warning System (Taws)
AeroNav 900/880 Series Pilot’s Guide TERRAIN ALERTING WARNING SYSTEM (TAWS) NOTE AeroNav TAWS Does Not Hold TSO C-151c TSO C-151c functionality is all present in the AeroNav, however, the AeroNav does not hold the TSO C-151c approval and therefore may not take credit in aircraft where TSO C-151c compliance is required.
Page 188 AeroNav 900/880 Series Pilot’s Guide Alert Function Aural Alert Excessive Rate of Descent Sink Rate, Pull Up Warning FLTA Terrain Warning Terrain, Pull-Up, Terrain, Pull- Terrain, Terrain, Pull-Up, Pull- FLTA Obstacle Warning Warning, Obstacle FLTA Terrain Caution Caution, Terrain, Caution, Terrain Terrain Ahead, Terrain Ahead FLTA Obstacle Caution...
Page 189: Premature Descent Alert (Pda)
AeroNav 900/880 Series Pilot’s Guide NOTE Terrain Alert Warning Maneuver When a terrain alert warning occurs, immediately initiate and continue a climb that will provide maximum terrain clearance, or any similar approved vertical terrain escape maneuver, until all alerts cease. Only vertical maneuvers are recommended, unless operating in visual meteorological conditions (VMC) and/or the pilot determines, based on all available information, that...
Page 190 AeroNav 900/880 Series Pilot’s Guide PDA is suppressed during normal VFR operations in the airport area and will only generate alerts in the following range and altitude categories: Range from nearest AGL Altitude Range in Which a runway or ARP PDA Caution Alert is Generated 1 –...
Page 191: Excessive Descent Rate (Edr)
AeroNav 900/880 Series Pilot’s Guide EXCESSIVE DESCENT RATE (EDR) The excessive rate of descent alerts are intended to be always active, even in the vicinity of an airport. There is a caution area for high rates of descent and a warning area for even higher rates of descent.
Page 192: Negative Climb Rate / Altitude Lost After Takeoff
AeroNav 900/880 Series Pilot’s Guide NEGATIVE CLIMB RATE / ALTITUDE LOST AFTER TAKEOFF The final function of the TAWS system is the alert for a negative climb rate (NCR) or excessive altitude lost after takeoff/go-around. Takeoff/Go-around state is defined as a 60 foot climb inside the FLTA Exclusion area (i.e.
Page 193: Taws Inhibit Control
AeroNav 900/880 Series Pilot’s Guide TAWS INHIBIT CONTROL The FLTA and PDA functions of TAWS (visual and aural) can be inhibited via pilot control. This comes in handy in some scenarios like VFR flight in an area of significant terrain, VFR low altitude flight and airfields that are not in the nav database or designated as a user waypoint airport.
Page 194: Traffic Display
AeroNav 900/880 Series Pilot’s Guide  GPS position accuracy is excessively low  Terrain database is invalid or not available  Obstacle database is invalid or not available  Nav database is invalid or not available  Aircraft is on the ground ...
Page 195 AeroNav 900/880 Series Pilot’s Guide Traffic Symbol Definition TAS Other Traffic Traffic that is detected by the traffic sensor, but determined not to be a current threat. (hollow blue diamond) TIS Traffic Alert (TA) Traffic radiated by a TIS ground station and includes 45...
Page 196 AeroNav 900/880 Series Pilot’s Guide Additional information is displayed adjacent to the traffic symbol to indicate relative altitude and vertical trend. Additional Traffic Information Traffic Thumbnail datablock data is a subset of the map overlay traffic. Trend vector, tail number and TIS track pointers are not displayed in the traffic thumbnail datablock for space reasons.
Page 197 AeroNav 900/880 Series Pilot’s Guide For Mode-S equipped aircraft, the aircraft ID (e.g. tail number, call sign, etc) may also be displayed adjacent to the traffic symbol. Aircraft ID Depiction Traffic Advisories (TA) will also generate a CAS message and depending on the type of traffic system installed, some type of aural alert.
Page 198 AeroNav 900/880 Series Pilot’s Guide NOTE Traffic Mode and Range Changes The traffic sensor mode changes are automatic based on phase of flight. If however, a manual mode change is desired, it can only be accomplished when the traffic thumbnail is displayed and is accomplished by either pressing the L1 LSK or touching the lower 1/3 of the traffic thumbnail.
Page 199 AeroNav 900/880 Series Pilot’s Guide Since TIS traffic data is re-radiated data from FAA ground stations, there are a few additional possible states of the data beyond normal operating state. The non-normal TIS status states will be displayed in the traffic thumbnail and as CAS messages and include: TIS Traffic Thumbnail Definition...
Page 200 AeroNav 900/880 Series Pilot’s Guide TIS Traffic Thumbnail Definition Status The angular placement of intruders in the traffic thumbnail is not "Track necessarily within 5 degrees of the Degraded" nose. This indication is normal on the ground in aircraft without a heading source.
Page 201 For those installations with dual AeroNavs and more than one type of traffic source (e.g. “TAS600” and an TIS-B “SkyTrax100”) in the aircraft, BendixKing recommends wiring one traffic source to one AeroNav and the other traffic source to the second AeroNav.
Page 202: Synthetic Vision (Svs) Tab
AeroNav 900/880 Series Pilot’s Guide SYNTHETIC VISION (SVS) TAB The SVS tab on the MAP page provides a hybrid view of your aircraft and flight plan from a virtual wingman who is flying above and behind your present position. This is an “exocentric” view. The aircraft ownship symbol is displayed just like the 2D map as well as the shadow it casts on the ground.
Page 203 AeroNav 900/880 Series Pilot’s Guide Any traffic in the scene will cast a shadow on the ground to help with judging distance and relative closure rate. Subtle grid lines are drawn on the terrain for additional speed, distance and depth cues. Each grid line is a 1NM x 1NM block. Aircraft bank and pitch is also graphically represented as can be seen in the figure below‡.
Page 204 AeroNav 900/880 Series Pilot’s Guide datablocks, either touch the "DATA" tab, or hold the right side of the MAP button. Terrain Awareness and FLTA in Map SVS View Also like on the 2D map view, the active leg is depicted in solid magenta, the next leg is a candy-striped magenta/white depiction and downstream legs are depicted in white.
Page 205 AeroNav 900/880 Series Pilot’s Guide Curved Flight Path with Next Leg Depiction Fly By Waypoint Depiction 89000039-010 Rev 1 May 2019 Map Subsystem 4-55...
Page 206 AeroNav 900/880 Series Pilot’s Guide Inactive missed approach procedures are depicted as dashed lines, just like on the 2D map and go solid when/if the missed approach procedure has been activated. Missed Approach (Not Activated) in Map SVS View Landing airfields are drawn on the map as are any known obstacle database obstructions.
Page 207 AeroNav 900/880 Series Pilot’s Guide Close in of Landing Runway in Map SVS View Missed Approach Enabled in Map SVS View 89000039-010 Rev 1 May 2019 Map Subsystem 4-57...
Page 208 AeroNav 900/880 Series Pilot’s Guide NOTE Flight Plan Depictions The depiction of the flight plan in any SynVis display is placed 1000’ feet below aircraft altitude. This means that it will not be visible when flying under 1000’ AGL during takeoff, enroute and approach phases, nor will it be visible during ground operations and it may appear to go underground when descending or over variable terrain.
Page 209: Chart Tab
AeroNav 900/880 Series Pilot’s Guide CHART TAB The CHART tab on the MAP page is capable of displaying geo- referenced Jeppesen departure/arrival/approach charts and airfield diagrams. Geo-referenced charts refers to the ability to overlay an ownship symbol representing aircraft present position in the correct orientation and position on the chart diagrams as well as overlaying the active FMS flight plan on the chart.
Page 210: European Visual Approach, Landing And Area Charts
AeroNav 900/880 Series Pilot’s Guide The Charts Selection page presents a list of available charts. Use the right-hand knob on the AeroNav to select the desired approach from the presented list and push the knob in, or touch the desired approach in the list, to select and display the chart.
Page 211: Chart Extent Box
AeroNav 900/880 Series Pilot’s Guide CHART EXTENT BOX A green chart extent box is drawn separately on the map and represents the geographic boundaries of an instrument approach plate associated with a FMS destination. When the ownship symbol crosses the boundary of the chart extent box, this is a good time to switch over to the CHART tab.
Page 212: Hot Links To Charts
AeroNav 900/880 Series Pilot’s Guide HOT LINKS TO CHARTS Hot links to the charts directory or individual charts exist in several locations throughout the AeroNav including the FPL tab, INFO tab and NRST tab of the FMS page. COOL FEATURE Hot Links to Charts in Flight Plan Whenever a flight plan leg (blue airfield legs) has at least one published approach associated with it, a chart...
Page 213: Chart Views
AeroNav 900/880 Series Pilot’s Guide CHART VIEWS If the currently displayed chart is not the desired one, use the “Select Chart” LSK to jump back to the Directory List where the desired airport/chart can be selected. Once a chart is displayed, the left-hand LSKs provide means to alter the view or presentation of the chart.
Page 214 AeroNav 900/880 Series Pilot’s Guide airfield diagram chart will be displayed as an aid in surface navigation. Airport Diagram The charts can be pinch-zoomed and panned or knob zoomed to see close ups of the airfield diagram. If you did not select or use a published approach via Charts, the local airfield diagram can still be accessed.
Page 215: Lighting
AeroNav 900/880 Series Pilot’s Guide LIGHTING Some pilots prefer to use the Charts pages in the daytime lighting scheme at all times and some prefer the nighttime lighting scheme. In order to provide that flexibility, a separate “Chart Day/Night Mode” option (Auto, Day, Night) has been provided on the User Options LSK of the Setup tab on the AUX page.
Page 216: Watermarking / Expired Data
AeroNav 900/880 Series Pilot’s Guide WATERMARKING / EXPIRED DATA Charts that have been expired for 60 or more days will still be displayed and readable indefinitely but a watermark “Not for Navigation” will be depicted on each chart. The flight plan will not be overlaid on expired charts.
Page 217: Radar Tab
AeroNav 900/880 Series Pilot’s Guide RADAR TAB Support for digital weather radars is an optional capability for the AeroNav. When this option has been activated on an AeroNav, a dedicated “RADAR” tab is present on the MAP page, and if the AeroNav has access to heading data, radar data can also be a selectable overlay on the moving map.
Page 218 AeroNav 900/880 Series Pilot’s Guide The radar mode is controlled by a line select key along the left side labeled “Radar”. Pressing the LSK or touching the label will generate a drop down list of the available modes. Twist the bottom right knob to scroll through the list or touch the desired mode in the list to select Radar Mode Control The possible modes are:...
Page 219 AeroNav 900/880 Series Pilot’s Guide  On – turns the radar on in normal operation. When On, the moving scan indicator and radar echoes are visible and the system is radiating microwave energy.  Gnd Map – when selected, the system will orient the radar to ground features.
Page 220 AeroNav 900/880 Series Pilot’s Guide The “Stabilization” LSK is an on/off toggle of the radar’s gyro stabilization. When Radar is “On”, the controllable parameters are:  Range – Use the outer ring of the bottom right knob to control the displayed range scale. ...
Page 221 AeroNav 900/880 Series Pilot’s Guide WARNING Radar Energy is Potentially Hazardous Aircraft weather radar is specifically designed to emit a concentrated beam of microwave energy at potentially hazardous power levels. These hazards include the possibility of injury to ground personnel, ignition of flammable materials, including fuel, and damage to sensitive electronic devices.
Page 222 AeroNav 900/880 Series Pilot’s Guide Vertical Profile mode allows you to view approaching weather as a slice of the vertical plane instead of the conventional horizontal forward view. Switching between horizontal forward view and vertical profile view is accomplished by toggling the “Vert Profile” LSK on/off. Vertical profile display contains the same functions and modes as shown on the horizontal forward view.
Page 223 AeroNav 900/880 Series Pilot’s Guide Some radar systems (e.g. RDR 2000) can be configured at installation to include the Target Alert feature. The purpose of the feature is to alert the pilot to the presence of a significant weather cell that exists beyond the currently selected range.
Page 224: Video Tab
AeroNav 900/880 Series Pilot’s Guide VIDEO TAB Support for 4x3 aspect ratio RS-170 formatted video display is an optional capability for the AeroNav. When this option has been activated on an AeroNav, a dedicated “VIDEO” tab is present on the MAP page.
Page 225: Aux Subsystem
AeroNav 900/880 Series Pilot’s Guide 5 Aux Subsystem The Aux subsystem contains several tabs, as shown below, to control various utilities, system setup, and the alert message center. The AUDIO tab provides control and display of all system audio- related features. The UTIL tab provides access to several timers, calculators, and checklists.
Page 226: Audio Tab
AeroNav 900/880 Series Pilot’s Guide AUDIO TAB The AUDIO tab provides control and display of all system audio- related features such as radio volume, squelch settings, satellite radio channel tuning and com presets. VOLUME CONTROL Each subsystem for which the AeroNav has an ability to control volume (and squelch and ID on/off) is displayed as a separate line item when the “Volume Control”...
Page 227 AeroNav 900/880 Series Pilot’s Guide TIPS AND TECHNIQUES Adjusting Volume Plays Audio Test Aural As the volume bar for the traffic alerts is adjusted, the AeroNav will play a double chime that represents the new volume level selected. As the volume bar for the other aural alerts is adjusted, the AeroNav will play an aural that represents the new volume level also.
Page 228: Satellite Radio Tuning
AeroNav 900/880 Series Pilot’s Guide SATELLITE RADIO TUNING When a compatible audio-capable satellite radio system is installed, a “Satellite Radio” LSK is displayed along the left edge of the display. The MLB700 and AV350 are not supported but the XM version of GDL69A is supported. Satellite Radio Selection and Favorites The page is divided into three parts.
Page 229 (e.g. G500 & AeroNav), a condition can occur where commands are ignored if they are made on both devices. BendixKing strongly recommends making satellite radio channel selections and volume adjustment on one device and do not mix it up between devices.
Page 230: Com Presets
AeroNav 900/880 Series Pilot’s Guide COM PRESETS † The “Com Preset List” LSK can be used to nominate one of up to 16 selected preset frequencies into the #1 Standby com radio slot, typically using a dedicated switch in the cockpit. Com Presets Page Preset frequencies can only be changed when the page is in edit mode.
Page 231 AeroNav 900/880 Series Pilot’s Guide To remove a preset frequency, put the page into edit mode and then either touch or rotate the right knob to move the cursor to the desired preset. Then press the CLR button to clear the frequency and take the page out of edit mode.
Page 232: Util (Utilities) Tab
AeroNav 900/880 Series Pilot’s Guide UTIL (UTILITIES) TAB TIMERS For those timers that can expire, a cyan advisory Caution Advisory System message will be displayed and will stay active even across power cycles until the timer is manually reset. Standard Timers Generic Timer The “Generic Timer”...
Page 233 AeroNav 900/880 Series Pilot’s Guide Trip Timer The “Trip Timer” provides an option to start from either AeroNav power on or from take-off (the active selection will be displayed in a blue background), along with a Reset capability. This timer will automatically reset with each power cycle or take- off, depending on which selection was made.
Page 234 AeroNav 900/880 Series Pilot’s Guide Custom Timer Examples Custom timers have a default name of “Event” with an accompanying “Event” CAS message at expiration. If the custom timer name were manually set to a blank, then the CAS message will be “Timer”. TIPS AND TECHNIQUES Separate “Switch Tank”...
Page 235: Calculators
AeroNav 900/880 Series Pilot’s Guide CALCULATORS Several calculators are included in the system and all can be accessed via the “Calculators” LSK on the UTIL tab of the AUX page. TIPS AND TECHNIQUES Pre-Populated Data Fields Many data fields in the various AeroNav calculators will be populated automatically with sensor data in green if it is available, or can be manually edited/entered by the pilot.
Page 236 AeroNav 900/880 Series Pilot’s Guide Fuel Planner The fuel planner includes fields for the type, origin (if type is Point to Point), destination, ground speed, fuel on board, and fuel flow, and will produce a computed fuel at destination value (straight line distance between the two points) and other fuel related data.
Page 237 AeroNav 900/880 Series Pilot’s Guide Trip Planner Calculator RAIM Prediction The GPS RAIM (Receiver Autonomous Integrity Monitoring) Prediction calculator includes fields for destination, arrival time and arrival date and will produce a RAIM status value for the destination location. RAIM Prediction Calculator 89000039-010 Rev 1 May 2019 Aux Subsystem 5-13...
Page 238 AeroNav 900/880 Series Pilot’s Guide Trip Statistics The trip statistics calculator computes an odometer setting, maximum ground speed and average ground speed value, providing options to reset each computation individually or a master reset to reset all. The trip statistics will continue to compute each data field across power cycles and until manually reset.
Page 239: Electronic Checklist
AeroNav 900/880 Series Pilot’s Guide ELECTRONIC CHECKLIST If enabled in Maintenance Mode, up to 9 custom checklists can be created and stored in the AeroNav via the “Checklist” LSK of the UTIL tab, each with up 50 steps. Each step can be up to 30 characters long.
Page 240 AeroNav 900/880 Series Pilot’s Guide When you have finished naming the new checklist, press the “Enter” button on the keypad or push the right AeroNav knob. Repeat this process for naming new checklists until all desired checklist names are created. When done naming checklists, press the “Edit”...
Page 241 AeroNav 900/880 Series Pilot’s Guide Editing a Checklist To edit an existing checklist, touch or use the bottom right AeroNav knob to select the “Edit” button, then touch again or push the knob putting the system in edit mode. This automatically creates a new step at the end of the checklist –...
Page 242 AeroNav 900/880 Series Pilot’s Guide accomplished, that text strip along the bottom edge will change to “Checklist Complete”. Completed Checklist If a step inadvertently has been checked off as accomplished, it can be unchecked by selecting the step (touch it or use the bottom right AeroNav knob) and then touching it a second time or pushing the AeroNav knob to remove the checkmark.
Page 243 TIPS AND TECHNIQUES Backup Your Checklists For a variety of reasons including copying onto other AeroNavs, restoring post-service events, etc., BendixKing highly recommends backing up and storing electronic checklists by downloading checklists onto USB fobs. Procedures are supplied later in this manual.
Page 244: Setup Tab
AeroNav 900/880 Series Pilot’s Guide SETUP TAB DATABLOCK SETUP Setting up datablocks can be done by either selecting some preset configurations, individually customizing the slots (except for the two dedicated COM slots in the top left corner) or a combination of both. Selecting preset datablock configurations is accomplished using the “Datablock”...
Page 245 AeroNav 900/880 Series Pilot’s Guide Datablock Preset Content Selection Factory Default Displays two COM frequencies above two NAV frequencies above the Decoded VLOC IDENT block above the Nav Mode along the left side. Displays GPS AGL Altitude along the top. Displays To Waypoint Information above Nearest Airport above Destination Direct...
Page 246 AeroNav 900/880 Series Pilot’s Guide Datablock Preset Content Selection Custom Permits all datablock slots except the top left two dedicated COM slots to be configured as desired. Setting up customizable datablocks is accomplished using the “Datablock” LSK on the SETUP tab of the AUX page and selecting “Setup”...
Page 247 AeroNav 900/880 Series Pilot’s Guide As you twist the outer ring of the bottom right AeroNav knob while on the Datablock Setup page, you will notice a blue filled box that will jump from one datablock slot to the next. The center of the page will display the datablock options list for that given slot.
Page 248 AeroNav 900/880 Series Pilot’s Guide Datablock Item Title Content and Image Primary Com/VLOC Defines the position of the top two (Note: This selection is datablocks along the left side. These permanently grayed out are permanently dedicated to and is not actually Com/VLOC control and display.
Page 249 AeroNav 900/880 Series Pilot’s Guide Datablock Item Title Content and Image Com/Nav Standby #4† Provides a means to display a 5 or nav frequency (fourth standby slot) (2 lines) Only available on left side datablocks Note: If this field is currently in datablock edit mode as indicated by a blue background, then com/nav tuning is disabled...
Page 250 AeroNav 900/880 Series Pilot’s Guide Datablock Item Title Content and Image To Waypoint To waypoint identifier, desired track to Information* current waypoint along flight plan route, distance to current waypoint along the track , estimated remaining fuel at the current waypoint (if a fuel flow system is connected), and estimated time enroute to the current waypoint.
Page 251 AeroNav 900/880 Series Pilot’s Guide Datablock Item Title Content and Image Designated Waypoint Designated waypoint identifier, bearing from present position to the designated waypoint, radial from the designated waypoint to present position, straight line distance from present position to the designated waypoint, and estimated time enroute from present position to the designated waypoint.
Page 252 AeroNav 900/880 Series Pilot’s Guide Datablock Item Title Content and Image Destination Direct Info.* Destination identifier, bearing to destination from present position and distance to destination from present position. (3 lines) Destination Waypoint Destination identifier. (1 line) Direct Distance to Dest. Destination identifier and straight line distance to the destination from present position.
Page 253 AeroNav 900/880 Series Pilot’s Guide Datablock Item Title Content and Image Estimated time of arrival at the “To” ETA at To Waypoint waypoint in HH:MM format. Units (Z or LCL) dependent on format selection in User Options page. (2 lines on side, 1 line on top) Destination ETE Estimated time enroute (along flight...
Page 254 AeroNav 900/880 Series Pilot’s Guide Datablock Item Title Content and Image Desired Track Desired track for active flight plan leg. (1 line) Cross Track Distance Cross track deviation from current flight plan leg. (2 lines on side, 1 line on top) Next Desired Track Desired track for the next flight plan leg (not the active flight plan leg).
Page 255 AeroNav 900/880 Series Pilot’s Guide Datablock Item Title Content and Image Active GPS Approach Approach identifier and airport. (3 lines) Decoded VLOC For VORs: IDENT*† Navaid identifier, navaid radial currently on, distance to navaid. (3 lines) For ILS/Localizers: Localizer identifier, airport, runway. (3 lines) Nearest Airport* Nearest airport identifier, bearing to...
Page 256 AeroNav 900/880 Series Pilot’s Guide Datablock Item Title Content and Image GPS AGL Altitude* Computed GPS-based AGL altitude. (2 lines on side, 1 line on top) Min Safe Altitude (defined as 1000’ Minimum Safe Altitude* above the highest terrain or obstacle in a 10nm rectangle around ownship position).
Page 257 AeroNav 900/880 Series Pilot’s Guide Datablock Item Title Content and Image Static Air Temperature (1 line) Note: Requires SAT input from an external device like an EFIS or appropriate fuel flow system. Local Time Local time in HH:MM:SS format. (2 lines on side, 1 line on top) UTC Time* Zulu Time in HH:MM:SS format.
Page 258 AeroNav 900/880 Series Pilot’s Guide Datablock Item Title Content and Image Fuel Amount Total fuel remaining (units dependent Remaining*‡ on unit type selection made in User Options list) as sent by the aircraft fuel flow system, if available. (2 lines) Fuel Time Remaining*‡...
Page 259 AeroNav 900/880 Series Pilot’s Guide ‡ Only presented as an option if the AeroNav is configured to communicate with an external fuel flow system To restore factory defaults to the datablock selections, press the bottom right AeroNav knob while on the Datablock Setup page and then accept the green Confirm dialog box that gets displayed or use the Presets selection in the “Datablock”...
Page 260: Map Setup
AeroNav 900/880 Series Pilot’s Guide MAP SETUP The level of detail and the choice of displaying elements on the map may be controlled from the AUX page by choosing the SETUP tab and the “Setup Map” LSK. Map Setup The Airport Filters section provides a location to specify the runway length, runway surface, airport tower status, and type of fuel available.
Page 261: Fms Setup
AeroNav 900/880 Series Pilot’s Guide FMS SETUP This is a page where some of the calculations of the FMS can be altered for aircraft or operational tailoring. Access this page by pressing the “Setup” LSK until “FMS” is shown. Options include: ...
Page 262: User Options
AeroNav 900/880 Series Pilot’s Guide USER OPTIONS A number of user options are available for setup on the “User Options” LSK of the SETUP tab on the AUX page. The outer ring of the bottom right AeroNav knob is used to select a given row and twisting the inner ring of that knob will cycle through the options.
Page 263 AeroNav 900/880 Series Pilot’s Guide User Option Item Title Description User Profile Default profiles are named "User-1" through "User-5", but the names can be changed. See page 5-54. User-1 is the default selection Zoom Mode Off* - all datablocks, LSKs, and page tabs are displayed using normal size fonts On - datablocks, LSKs, and...
Page 264 AeroNav 900/880 Series Pilot’s Guide User Option Item Title Description Bezel Backlight A brightness bar that represents the bezel brightness setting when User Control is selected. This item has no default value. Display Mode Auto* - the LCD display backlighting will rely on the ambient light sensor in the bezel until a low threshold is reached, at which time it uses the...
Page 265 AeroNav 900/880 Series Pilot’s Guide User Option Item Title Description Chart Day/Night Mode Day - Charts are displayed with a bright white background Night – Charts are displayed with the bright white background turned off Auto* – Uses the selection in the Chart Auto Mode field to automatically determine whether the system is using...
Page 266 AeroNav 900/880 Series Pilot’s Guide User Option Item Title Description Never* – No “Switch Tanks” Switch Tanks Alert CAS message will be issued 15 min – “Switch Tanks” CAS message issued every 15 min 30 min - ”Switch Tanks” CAS message issued every 30 min 45 min –...
Page 267 AeroNav 900/880 Series Pilot’s Guide User Option Item Title Description HH:MM – push in bottom right Local Time Offset AeroNav knob to put into edit mode then twist the inner ring to change in 15 minute increments and then push knob again to exit edit mode Note: Local time is a user specified offset from UTC rather...
Page 268 AeroNav 900/880 Series Pilot’s Guide User Option Item Title Description Networking  Off* - turns off the WiFi transceiver in the AeroNav. <SSID/Name> – The AeroNav will use the specified WiFi network configuration (defined in Maintenance Mode - see page 7-72) The following are unauthorized for use (see page 7-77)
Page 269 AeroNav 900/880 Series Pilot’s Guide User Option Item Title Description Aircraft Flight ID Provides a means to enter in the optional aircraft flight ID for Mode S transponder operations. Push the bottom right AeroNav knob to put the field into edit mode and twist the inner ring to change the value and twist the outer ring to move to the next...
Page 270 AeroNav 900/880 Series Pilot’s Guide User Option Item Title Description Map Orientation Heading-Up* - the map will be displayed in heading up orientation if heading is available Track-Up – the map will be displayed in track up orientation Note: Even though Heading-Up is the default selection, if there is no heading source, then the default reverts to Track-Up.
Page 271 AeroNav 900/880 Series Pilot’s Guide User Option Item Title Description Advisory Glideslope On* - Will transmit a glideslope deviation signal for display on external indicators (e.g. HSI, EFIS) for approaches that don’t have a published glideslope associated with them. Advisory glideslope will be displayed for RNAV approaches, GPS approaches, and approaches...
Page 272 AeroNav 900/880 Series Pilot’s Guide User Option Item Title Description GPSVLOC Capture † Auto* - Allows the GPSVLOC state for nav source and an automatic transition to VLOC if the capture criteria are met Manual – Never displays the GPSVLOC nav source option and no automatic nav source switching will occur.
Page 273 AeroNav 900/880 Series Pilot’s Guide User Option Item Title Description Terrain Awareness (TA) On* - Terrain Awareness function enabled Off – Terrain Awareness function disabled. Terrain Caution Aural  Caution, Terrain; Caution, Terrain* - When selected, that is the aural alert issued during FLTA caution conditions Terrain Ahead;...
Page 274 AeroNav 900/880 Series Pilot’s Guide User Option Item Title Description Airspace Aural On* - Enables aural alerting of impending airspace (correlates with presence of the Airspace Ahead CAS message) Off – Disables aural alerting of airspace. 500ft Callout Aural  On* - Enables 500’...
Page 275 AeroNav 900/880 Series Pilot’s Guide User Option Item Title Description Distance/Speed Units nm/knots* - distance units will be displayed in nautical miles and speed units will be displayed in knots km/kph – distance units will be displayed in kilometers and speed units will be displayed in kilometers/hour sm/mph –...
Page 276 AeroNav 900/880 Series Pilot’s Guide User Option Item Title Description Temperature Units Fahrenheit* - temperature units will be displayed in degrees F Celsius – temperature units will be displayed in degrees C Fuel Units Gal* - fuel units will be displayed in gallons Lit –...
Page 277 AeroNav 900/880 Series Pilot’s Guide User Option Item Title Description Hide Page Tabs Never* - The page tabs will always be present After 2s – the page tabs “sink” down out of view 2 seconds after they were last used After <x>s where x choices are 5, 10 or 15 seconds –...
Page 278 AeroNav 900/880 Series Pilot’s Guide Custom User Settings 5 different custom user definitions can be created which are saved across power cycles. Each custom user definition consists  User Option page selections  Map settings  FMS settings  Datablock selections To select the desired User ID, rotate the right outer knob to select the “User ID”...
Page 279: Sys (System) Tab
AeroNav 900/880 Series Pilot’s Guide SYS (SYSTEM) TAB The “SYS” (System) tab provides access to various system status pages, a means to enter initial fuel (if configured with a recognized fuel flow system) and a means to access AeroNav data logs, update AeroNav software and update AeroNav databases.
Page 280: System Status
AeroNav 900/880 Series Pilot’s Guide When this “Fuel Mgmt” LSK selection is available, the FMS will also populate its data fields with projected fuel states at all downpath flight plan legs, as appropriate. SYSTEM STATUS The “Status” LSK is a multiple state LSK that provides access to software status page, weather datalink status page (if datalink is installed and properly configured), GPS status page, and the AeroNav databases status page.
Page 281 AeroNav 900/880 Series Pilot’s Guide that LSK will put the AeroNav into Maintenance Mode where the datalogs can be downloaded (see page 7-64 for instructions). NOTE Data Downloads and Updates Procedures for downloading AeroNav data logs and for updating AeroNav databases and software are covered later in this manual.
Page 282 AeroNav 900/880 Series Pilot’s Guide NOTE Database Currency It is critical that you update the data regularly and that you ensure the databases are current prior to conducting flight operations. Pressing the “Update Databases” LSK will put the AeroNav into Maintenance Mode where the databases can be uploaded to the AeroNav (see page 7-55 for instructions).
Page 283 AeroNav 900/880 Series Pilot’s Guide NOTE Global SBAS Support Wide area/regional satellite based augmentation system (SBAS) support provided by the AeroNav include WAAS (Continental US, Alaska, Canada and most of Central America), EGNOS (most of Europe and North Africa), MSAS (Japan) and GAGNAN (India).
Page 284 Datalink Status Page The “Datalink” selection will be available if the AeroNav has been properly configured to integrate with a compatible on-board weather system (see the AeroNav product page at https://www.bendixking.com/en/products/aeronav-gps-navigators for a list of currently supported systems). 89000039-010 5-60 Aux Subsystem...
Page 285 AeroNav 900/880 Series Pilot’s Guide This page has two distinct sections – the upper part displays the various weather products supported by the datalink system and subscription level with their age and receipt status; the lower part is a legend that defines the various symbols used in the datalink data depictions on the maps.
Page 286 AeroNav 900/880 Series Pilot’s Guide ADS-B Stations Page This page shows the ID and location of each ADS-B station from which data is being received. For each station, the percentage of data that has been received is shown as well as the look ahead range for TFRs, AIRMETs, and SIGMETs from that station.
Page 287 AeroNav 900/880 Series Pilot’s Guide ADS-B TFRs Page The ADS-B TFRs page shows a list of Temporary Flight Restrictions (TFRs) that have been received over FIS-B. Using the right knob or the touchscreen, a cursor can be moved to surround each of the TFRs in the list. Selecting one of the TFRs, either by pressing the right knob button, pressing the ENTR button, or touching the TFR surrounded by the cursor, will cause the ADS-B Product Text page (see page 5-65) to appear,...
Page 288 AeroNav 900/880 Series Pilot’s Guide ADS-B AIRMET/SIGMET Page The ADS-B AIRMET/SIGMET Page shows a list of AIRMETs and SIGMETs that have been received over FIS-B. Using the right knob or the touchscreen, a cursor can be moved to surround each of the reports in the list. Selecting one of the AIRMETs or SIGMETs, either by pressing the right knob button, pressing the ENTR button, or touching the report surrounded by the cursor, will cause the ADS-B Product Text page (see page 5-65) to...
Page 289 AeroNav 900/880 Series Pilot’s Guide ADS-B Product Text Page The ADS-B Product Text page shows the detailed report for TFRs, SIGMETs, and AIRMETs. Unless one of those reports has been selected on either the ADS-B TFRs page or the ADS-B AIRMET/SIGMETs page, this page will not be populated, and will instead show "No Text Selected"...
Page 290 AeroNav 900/880 Series Pilot’s Guide ADS-B Unavailable Products Page The ADS-B Unavailable Products Page shows the contents of the FIS-B Product Updates Unavailable Report. That report provides notification to users of outage of individual FIS-B product updates or the entire FIS-B service. If 20 minutes has elapsed since the AeroNav last received the FIS-B Product Updates Unavailable report, the report will be removed.
Page 291: Alert Tab
AeroNav 900/880 Series Pilot’s Guide ALERT TAB The ALERT tab keeps a running tally of all active alerts, grouping them by level. If there is an active alert in the system, pressing the AUX button will cause the ALERT tab to be displayed rather than the last tab that was selected in the AUX subsystem.
Page 292 AeroNav 900/880 Series Pilot’s Guide Blank Page 89000039-010 5-68 Aux Subsystem Rev 1 May 2019...
Page 293: Navigation
AeroNav 900/880 Series Pilot’s Guide 6 Navigation The AeroNav is an IFR certified GPS that has been specifically designed to support single-pilot IFR operations. It has been designed for both retrofit and clean installations, meaning that it can have different capabilities depending on the nature of the aircraft integration.
Page 294 AeroNav 900/880 Series Pilot’s Guide Integration Description AeroNav Category Functionality No external There is no form of VFR operations nav indicator external CDI, HSI, or only. EFIS in the airplane and therefore, no No way to external course input externally set available to the course.
Page 295 For Example available states. G500/600 The AeroNav can Aspen EFD1000 send commands to set Nav source modes BendixKing course (e.g. “auto- EXP5000 available: Dynon Skyview slew”) on those EFIS 40/50 † external device(s). VLOC ...
Page 296 AeroNav 900/880 Series Pilot’s Guide Integration Description AeroNav Category Functionality “Cooperative” The “cooperative” Course values will electronics system is even more display on the capable than the AeroNav but are AeroNav and, set on the external therefore, is the device(s). primary navigation control device.
Page 297: Nav Source Knob/Button
AeroNav 900/880 Series Pilot’s Guide NAV SOURCE KNOB/BUTTON For all models except the AeroNav 880, the knob located in the upper right hand corner of the bezel is the dedicated Navigation (Nav) Source knob. For AeroNav 880, the knob is replaced by a button labeled "OBS".
Page 298 AeroNav 900/880 Series Pilot’s Guide of the Nav Source knob. The table below describes all possible nav source states: Nav Source Description State GPS is the active state (green), and all external deviation data being transmitted by the AeroNav is in reference to the active GPS Or...
Page 299 AeroNav 900/880 Series Pilot’s Guide Nav Source Description State VLOC† VLOC is the active state (green), and all external deviation data being transmitted by the AeroNav is in reference to the active VHF-based leg (e.g. Inbound VOR course, localizer deviation, etc). Note that if no VHF data is being received (e.g.
Page 300 Aircraft Integration The Nav Source modes available in your airplane will be dependent on the level of integration with other on-board systems. BendixKing strongly recommends practice operations in VMC conditions before any use in IMC, to understand the level of...
Page 301: Obs Mode
AeroNav 900/880 Series Pilot’s Guide OBS MODE “PUSH OBS” is the label underneath the knob (or the button label in the case of AeroNav 880) and is active when you can put the system in To/From course setting mode for a waypoint. There is no need for “suspend”...
Page 302 AeroNav 900/880 Series Pilot’s Guide assumed intent is to fly to the fix and automatically sequence legs as normal from there. OBS TO Depiction In OBS FROM (defined as when the difference between the selected OBS course and the aircraft course to the fix is greater than or equal to 90°), the system will activate the reciprocal course away from the station with guidance away FROM the fix.
Page 303 AeroNav 900/880 Series Pilot’s Guide plane between you and the fix, and that is the leg to fly – away from the station. OBS FROM Depiction TIPS AND TECHNIQUES OBS “Final” OBS mode can be used to create a user-defined course into a waypoint/fix or an airfield.
Page 304 AeroNav 900/880 Series Pilot’s Guide NOTE OBS Leg Depiction on External Moving Maps The depiction of the OBS course line on external moving map displays may vary by device. Some external displays may depict the OBS leg and some may not. For example, in AeroNav software releases prior to Release 10.1.1.0, the Avidyne EX5000, EX500, and EX600 MFDs would not depict the OBS course line/leg but do depict a 200nm OBS...
Page 305: Vor Course Depiction
AeroNav 900/880 Series Pilot’s Guide VOR COURSE DEPICTION † When the Nav Source on the AeroNav is VLOC and the AeroNav is tuned to a VOR station, the AeroNav will display the inbound and outbound radials as dialed in by the OBS/Course knob on the external indicator, if that external device is capable of transmitting course.
Page 306: Armed Vs Engaged/Active Indications
AeroNav 900/880 Series Pilot’s Guide ARMED VS ENGAGED/ACTIVE INDICATIONS The active AeroNav nav mode is displayed in the upper right corner of the display. If there is an "armed" AeroNav nav mode, it will be displayed in cyan, to the right of the active mode, preceded by an arrow.
Page 307: Fms Hooks
AeroNav 900/880 Series Pilot’s Guide FMS HOOKS There are shortcuts to accomplish typical FMS actions on the FPL tab of the FMS page. The L4 LSK will present the most appropriate selection from the table below based on the flight state or scenario at the moment.
Page 308 AeroNav 900/880 Series Pilot’s Guide L4 LSK Label Comments Skip Hold Displayed when the aircraft is within 5 nm of the FAF and the next leg is a database procedure hold. Pressing the LSK will sequence the active leg past the hold without entering it when the aircraft reaches the FAF.
Page 309 AeroNav 900/880 Series Pilot’s Guide TIPS AND TECHNIQUES FMS Philosophy The FMS treats the flight plan as a continuous sequence of legs, regardless of whether they are part of a terminal area procedure or are in the enroute structure. If you had chosen an IAF and the last waypoint before the approach was the same as the IAF, then the flight plan would naturally sequence right into the approach with no further pilot...
Page 310: Course Changes And Holds
AeroNav 900/880 Series Pilot’s Guide COURSE CHANGES AND HOLDS If the course change at a waypoint is more than 120°, the AeroNav will issue an alert approximately 30 seconds prior to the turn. For course changes less than 120°, the alert will be issued approximately 10 seconds prior to the turn.
Page 311: Auto Vloc Tuning
AeroNav 900/880 Series Pilot’s Guide AUTO VLOC TUNING † Auto-VLOC tuning is a user option which enables the automatic tuning of the active nav frequency slot to follow the governing navaid in the flight plan. If the active leg is part of a VHF-based approach, the FMS will auto-tune the navaid that defines the final approach.
Page 312: Transition Altitudes/Levels
AeroNav 900/880 Series Pilot’s Guide TRANSITION ALTITUDES/LEVELS Transition altitude/level alerts can be optionally turned on via the FMS Setup page. When set to On, an advisory CAS message will be displayed as the transition altitude is being approached from below or when the transition level is approached from above.
Page 313 AeroNav 900/880 Series Pilot’s Guide Transition Altitude and Level Setting The transition altitude advisory CAS message is displayed when the aircraft climbs to within an altitude 250 feet below the transition altitude. Once issued, the alert will not be eligible to be issued again unless the aircraft has descended more than 500 feet below the transition altitude.
Page 314: Navigation Mode/Cdi Scale Changing
AeroNav 900/880 Series Pilot’s Guide NAVIGATION MODE/CDI SCALE CHANGING Each navigation mode has an associated CDI scaling associated with it per the table below: Navigation Mode CDI Full Scale Value Enroute 2.0 NM (5.0 NM for non- WAAS) Terminal 1.0 NM Approach 0.3 NM or 2°, whichever is less at the FAF...
Page 315 AeroNav 900/880 Series Pilot’s Guide 89000039-010 Rev 1 May 2019 Navigation 6-23...
Page 316: Approach Procedures
AeroNav 900/880 Series Pilot’s Guide APPROACH PROCEDURES Ensure the approach has been entered into the FMS flight plan, and that it is currently active in the AeroNav. An approach can be selected and flown as a full published procedure or as a Vectors-to-Final – the choice is made on the Transitions dropdown menu in the FMS.
Page 317: Automatic Mode Switching
AeroNav 900/880 Series Pilot’s Guide TIPS AND TECHNIQUES Discontinuities During Approaches Before you insert an approach at an airport, the FMS is being told to fly a leg directly to the airport (i.e. the reference point) and the legs on the map reflect that. However, when you insert an approach, the FMS is being told to fly the legs of the approach to the airport (actually to the runway) and not fly a leg to...
Page 318: Precision Approaches
AeroNav 900/880 Series Pilot’s Guide TIPS AND TECHNIQUES Exception to Automatic Nav Mode Switching If VLOC mode had been previously manually selected to be the nav mode (e.g. cross-tuning a VOR) and then an approach is activated in the flight plan that would have normally resulted in a GPSVLOC nav mode indication, the nav mode will NOT toggle to GPSVLOC.
Page 319: Non-Precision Approaches
AeroNav 900/880 Series Pilot’s Guide Lateral and vertical deviation data will be transmitted by the AeroNav for use by any integrated autopilot and external indicators. Conversely, the AeroNav will toggle the nav source from VLOC back to GPS when executing the missed approach at the Missed Approach Point.
Page 320: Waas Approaches
ID, landing airfield ID and the front course runway ID. When integrated with an EFIS (e.g. BendixKing PFD, Aspen PFD, etc), the front course may need to be manually entered and then “Back Course” should be displayed on the EFIS.
Page 321 AeroNav 900/880 Series Pilot’s Guide (FAF) is reached, do not descend – the conditions required to fly the approach have not been met and you must fly the missed approach procedure. WAAS approach types in the Nav Mode datablock and the nav source indication in the top right corner of the display include: LNAV (Lateral Navigation) Provides lateral (horizontal) guidance only, with standard...
Page 322 AeroNav 900/880 Series Pilot’s Guide approach, if appropriate. The Nav Mode datablock will display “LNAV/VNAV” for the approach type. LPV (Localizer Precision with Vertical Guidance) The lateral guidance is significantly more precise than LNAV, and equivalent to that of a localizer. Vertical guidance is provided to minimums as low as 200’...
Page 323 FAF. In the case where ATC responds with the extended final scenario, BendixKing recommends the pilot select the “Vectors” transition option in the FMS approach dropdown. In the case where ATC...
Page 324: Missed Approach
AeroNav 900/880 Series Pilot’s Guide MISSED APPROACH The simplest and safest way to properly fly a published missed approach is to ensure it is part of the active flight plan. It can be activated anytime inside the FAF by pressing the "Enable Missed" (L4) LSK on the FPL tab.
Page 325 AeroNav 900/880 Series Pilot’s Guide Enable Missed LSK Enabled Missed Approach in Flight Plan 89000039-010 Rev 1 May 2019 Navigation 6-33...
Page 326 AeroNav 900/880 Series Pilot’s Guide Enabled Missed Approach on Map Prior to executing the missed approach, apply go-around power, ensure the aircraft is trimmed for the power setting, establish a climb attitude and consider using the autopilot to smoothly execute the assigned climb-out or published missed approach procedures.
Page 327: Retry Approach
AeroNav 900/880 Series Pilot’s Guide RETRY APPROACH If you had been flying a Vectors-To-Final (VTF) approach, and the active leg of the flight plan is part of a published missed approach, the L2 LSK displays “Retry Approach”. Pressing the L2 LSK will put the same VTF approach in the FMS flight plan with the inbound leg to the FAF active.
Page 328 AeroNav 900/880 Series Pilot’s Guide NOTE Autopilot Integration Autopilot integration and capability can vary widely. BendixKing strongly recommends flying practice approaches in VMC conditions to understand the level of integration between the AeroNav and the autopilot before any flight in IMC conditions. For...
Page 329: Rnp/Rnav Operations
AeroNav 900/880 Series Pilot’s Guide RNP/RNAV OPERATIONS The AeroNav complies with the equipment requirements of AC 90-105 and meets the equipment performance and functional requirements to conduct RNP terminal departure and arrival procedures and RNP approach procedures without RF (radius to fix) legs.
Page 330: Recommended Icao Equipment Codes
AeroNav 900/880 Series Pilot’s Guide RECOMMENDED ICAO EQUIPMENT CODES BendixKing recommends the following set of ICAO codes when filing for aircraft equipped with at least one AeroNav: B – LPV G - GPS R – PBN Approved S – VHF, VOR, ILS †...
Page 331: General
AeroNav 900/880 Series Pilot’s Guide 7 General In addition to a comprehensive list of alerts that can be generated by the system, this section contains information relevant to managing the overall operation of the AeroNav, including:  Handling system failures ...
Page 332: Caution Advisory System (Cas) / Alerts
AeroNav 900/880 Series Pilot’s Guide CAUTION ADVISORY SYSTEM (CAS) / ALERTS See the individual aircraft Pilot Operating Handbook (POH) Supplement for any limitations with respect to AeroNav operations. A caution-warning alerting system (CAS) has been included in this system. There are three levels of message alerting: ...
Page 333: Warning-Caution-Advisory Message Bar
AeroNav 900/880 Series Pilot’s Guide WARNING-CAUTION-ADVISORY MESSAGE BAR A message bar is provided on every AeroNav to alert the pilot to what the CAS message is. Advisories are displayed on a cyan (blue) background in the lower right corner of each AeroNav. Warnings are displayed on red background in the lower right corner of each AeroNav.
Page 334 AeroNav 900/880 Series Pilot’s Guide The tables below show the warnings, cautions, and advisories that can be issued. Each entry in the table is organized as illustrated in the example below. Long text Short Text Detailed explanation of the conditions that may cause the ...
Page 335 One or more of the internal components has exceeded its maximum design temperature and reliability cannot be ensured until the unit is tested by the BendixKing Service Center. Contact the BendixKing Service Center or a local dealer for service. This message will be present on every subsequent power cycle until reset by the BendixKing Service Center.
Page 336 AeroNav 900/880 Series Pilot’s Guide CAUTIONS Caution Terrain Caution Terrain The FLTA algorithm is predicting a likely ground collision within approximately 60 seconds – initiate a proper recovery maneuver. Caution Obstacle Caution Obstacle The FLTA algorithm is predicting a likely obstacle collision with approximately 60 seconds –...
Page 337 Service Error The configuration of the AeroNav or the devices with which it is communicating has changed or experienced an error. Contact the BendixKing Service Center or a local dealer for service. GPS integrity is insufficient for LPV LPV Unavailable...
Page 338 AeroNav 900/880 Series Pilot’s Guide Aircraft is below the glide slope altitude Check Altitude at FAF Too Low Correct aircraft altitude as required to safely conduct the approach or initiate a climb to a published safe altitude and abort the approach. No communication with traffic sensor Traffic Sensor Fault...
Page 339 COM TX Fault † Transition to a backup VHF com radio (if available) or initiate lost communication procedures. Contact the BendixKing Service Center or a dealer for service. Stuck Mic Timeout, Transmitter COM Stuck Disabled † Requires 35 seconds of continuous transmission. Verify the PTT is stuck and contact a dealer for service as required.
Page 340 One or more of the internal components has exceeded 80°C. Contact the BendixKing Service Center or a dealer for service – consider adding a source of cooling and/or improving air flow in and around the AeroNav.
Page 341 Check the ADS-B position source device. AXP322 Transponder Fault Xpndr Fault Any fault other than loss of ADS-B GPS position. Contact the BendixKing Service Center if this persists across power cycles. No Communication with Remote No Comm Transponder...
Page 342 AeroNav 900/880 Series Pilot’s Guide Radar Data is Invalid Radar Sensor Fault The data stream from the radar contains information that should not be used. Sensor mode is <sel>. Selected mode Radar is <rep> Sensor Fault The selected mode <sel> does not match the reported mode <rep>.
Page 343 The GPS solution is lost or the GPS velocity quality parameters drop below required accuracy limits. A “bing- bong” chime is played if this condition occurs. Contact the BendixKing Service Center if this persists across power cycles. TAWS Failed Self-Test <reason>...
Page 344 Stale The datalink product <p> has not been received for <x> minutes and is now considered stale. "Stale" periods vary with weather product. See the AeroNav product page on https://www.bendixking.com/en/products/aeronav-gps- navigators for detailed datalink product information. No <p> Datalink Data Not Rcvd No <p>...
Page 345 Stored  The route cannot be internally stored due to an internal error. If the problem persists across a power cycle of the AeroNav, contact the BendixKing Service Center for service. Must Intercept Within 45° of Final Intercept Approach Course...
Page 346 AeroNav 900/880 Series Pilot’s Guide Approaching End of Flight Plan Lateral Lateral Offset Offset End Ahead  The time to the end of the lateral offset is 60 seconds. Exiting Hold At Fix Exiting Hold At Fix  The hold is armed for exit and is set to sequence upon crossing the hold fix.
Page 347 AeroNav 900/880 Series Pilot’s Guide Tuned frequency does not match Check Nav approach navaid Frequency † Indicates that the active approach is based on a localizer or a VOR and that approach is not authorized for GPS overlay, the aircraft course is within 45 degrees of the final approach course, the course to the active waypoint is within 45 degrees of the final approach course, the distance to the final approach fix (FAF) from the current...
Page 348 AeroNav 900/880 Series Pilot’s Guide Lightning sensor fatal fault: <cc>. Try Lightning cycling lightning sensor power Sensor Fault <cc> is the fault code(s) from the sensor. Recommend cycling power to the lightning sensor. If the problem persists, contact a local dealer for service. No lightning sensor data: <ff>...
Page 349 Dual AeroNavs have been installed and configured to share data between the units, but there is no communication between the AeroNavs. If both units are powered on, contact the BendixKing Service Center or a local dealer for service. Timer Expired...
Page 350 An Error Occurred While Loading the Nav Database Nav Database Invalid Consider cycling power to the AeroNav and if the problem persists, contact the BendixKing Service Center or a local dealer for service. 89000039-010 7-20 General Rev 1 May 2019...
Page 351 GPS acquisition, will be degraded. Contact the BendixKing Service Center for service. AeroNav Requires Service Checklist Error  Contact the BendixKing Service Center for service. Lightning sensor antenna config set to: Lightning [Bottom | Top] Sensor Config  Present only on the first power cycle after configuring the AeroNav for a WX500.
Page 352 AeroNav 900/880 Series Pilot’s Guide Use the bottom LSK on the FPL tab Enable A/P before A/P APR For some autopilots, this is the prompt to the pilot to select Approach mode on the autopilot. In these cases, the AeroNav has neither control nor knowledge of the autopilot mode.
Page 353 AeroNav 900/880 Series Pilot’s Guide Fuel Used reset. Check initial fuel Check Init setting Fuel  Fuel used reset has been detected from the fuel sensor and the pilot has not set initial fuel at startup. A route has been received Route Upload Ready A stored route has been received from an external source...
Page 354 AeroNav 900/880 Series Pilot’s Guide Trans Level FLxxx Trans Level FLxxx The aircraft is descending through 250 feet above the transition level xxx as defined in the FMS Setup page. The message is displayed for 5 seconds and then removed. It will not be enabled for display again until the aircraft has climbed more than 500 feet above the transition level.
Page 355 AeroNav 900/880 Series Pilot’s Guide UTC Time Mismatch. Please restart AeroNav when possible Mismatch The internal clock does not match the time received from the GPS. Power cycling the AeroNav will update the time. 89000039-010 Rev 1 May 2019 General 7-25...
Page 356: Self Test Output
AeroNav 900/880 Series Pilot’s Guide SELF TEST OUTPUT For the duration that the notification of legal rights page is displayed during normal power up on the ground, all remote annunciator lamps are lit up and the system generates a specific set of electrical outputs for the purpose of self-test and troubleshooting.
Page 357: System Failures
AeroNav 900/880 Series Pilot’s Guide SYSTEM FAILURES NOTE Good Airmanship In all cases, basic airmanship should be exercised and fundamentals utilized such as: maintain aircraft control, analyze the situation, and take proper action. POWER DISTRIBUTION Each AeroNav draws a total of 2 amps in nominal operation and up to 4 amps under peak conditions for 28V aircraft.
Page 358: Loss Of Display
 Consider cycling power on the affected AeroNav via the top left power knob/button  After the flight, notify an BendixKing Service Center or BendixKing Customer Support to coordinate for a repair action LOSS OF DISPLAY Failure Indication: The first indication that an AeroNav has experienced a loss of the display (LCD) is the appearance of a black display but the bezel backlighting is still present.
Page 359: Loss Of Bezel Controls
AeroNav 900/880 Series Pilot’s Guide  After the flight, notify an BendixKing Service Center or BendixKing Customer Support to coordinate for a repair action LOSS OF BEZEL CONTROLS Failure Indication: All knobs and buttons are non-functional and not respondent to use.
Page 360: Loss Of Gps (Dead Reckoning)
 Consider cycling power on the affected AeroNav via the top left power knob  After the flight, notify an BendixKing Service Center or BendixKing Customer Support to coordinate for a repair action LOSS OF GPS (DEAD RECKONING) Failure Indication: A “Dead Reckoning”...
Page 361: Other Anomalies
 If successful with GPS reacquisition, normal use of the affected AeroNav may be resumed  After the flight, notify an BendixKing Service Center or BendixKing Customer Support to coordinate for a repair action OTHER ANOMALIES Other system anomalies are indicated to the pilot in the form of a CAS message.
Page 362: Subscriptions
AeroNav 900/880 Series Pilot’s Guide SUBSCRIPTIONS Nav, Obstacle and Chart data are supplied by Jeppesen via JDM subscriptions. Refer to the Jeppesen product website for the various geographic and bundling options available. For those aircraft equipped with external weather and music satellite radio systems, subscriptions are managed via that data provider.
Page 363: Night Operations
SETUP tab on the AUX page. The choice of which option to use is one of personal preference and/or optimal choice for the specific airplane but BendixKing recommends using the dimming bus control for cockpit lighting consistency. Displays can never be dimmed to be completely off.
Page 364: Display Of Terrain On Map
NOTE Chart Data Reliance Always refer to current aeronautical charts for appropriate terrain and obstacle information. Do not rely on the BendixKing Integrated Flight Display System as your sole source of obstacle and terrain avoidance information. 89000039-010 7-34 General...
Page 365: High Temperature Operations
AeroNav 900/880 Series Pilot’s Guide HIGH TEMPERATURE OPERATIONS Like all similar units, the AeroNav tends to generate a lot of heat, especially if equipped with a transmitting radio. There is extensive internal temperature monitoring on all of the electrical components, and alerts in the form of CAS messages if the internal temperature gets too high.
Page 366: Cold Temperature Operations
AeroNav has warmed up. WARNING (AERONAV 910/905 ONLY) Very Cold Temperatures May Damage Sensors There is potential for permanent damage to the attitude producing portion of the AeroNav 910/905 if the AeroNav is exposed to storage temperatures of -40°C or lower. 89000039-010...
Page 367: Low Power Operations
AeroNav 900/880 Series Pilot’s Guide LOW POWER OPERATIONS The following actions are taken as input power is reduced to the AeroNav: Input Voltage AeroNav Operation Impact 19.9VDC 16W VHF radio output power reduces to 10W.† 18VDC Lose high power (2.1A) USB charging. USB charging reduces to 1A.
Page 368: High Power Operations
AeroNav 900/880 Series Pilot’s Guide HIGH POWER OPERATIONS The following actions are taken as input power is increased to the AeroNav: Input Voltage AeroNav Operation Impact 32.3VDC VHF radio shuts down to protect itself from over-voltage events. Note that input voltage up to 33VDC will not damage the VHF but it will not function above 32.3VDC.†...
Page 369: Use Of Gloves
AeroNav 900/880 Series Pilot’s Guide USE OF GLOVES Many types of gloves can be used with the AeroNav touch screen display. The key parameter for the effectiveness of a glove with touch screen is the distance between the finger and the glass and to a lesser extent, the type of material separating the skin from the glass.
Page 370 AeroNav 900/880 Series Pilot’s Guide AeroNav Glove Qualification Procedure Pilot Name Description of Glove Test Step Circle one Touch the standby frequency window and verify a virtual keyboard is Pass Fail displayed. † Type 121.7, press the "ENTER" button on the virtual keyboard and confirm Pass Fail 121.700 is the displayed frequency in...
Page 371: Charging From The Usb
AeroNav 900/880 Series Pilot’s Guide CHARGING FROM THE USB The USB port on the front of the AeroNav bezel is a USB v1.1 compatible USB port and can be used as a “high power” charger as well. Most devices are “low power” devices and they will fully charge from the AeroNav bezel USB port.
Page 372: Integration With The Ifd100 Mobile App
AeroNav 900/880 Series Pilot’s Guide INTEGRATION WITH THE IFD100 MOBILE APP The IFD100 mobile application is designed to fully interact with the panel-mount AeroNavs. That is to say, the IFD100 behaves as if it were another panel-mount AeroNav and all of the data sharing functionality and rules of two panel mount AeroNavs are in practice.
Page 373: Demo Mode
AeroNav 900/880 Series Pilot’s Guide DEMO MODE The AeroNav can be put into demo mode at any time while on the ground for familiarization purposes. Entry into demo mode is accessed by inserting a USB fob with a dummy file called “DEMO”...
Page 374 AeroNav 900/880 Series Pilot’s Guide TIPS AND TECHNIQUES Altitude Constraints Retained Altitude constraints entered into a flight plan will be retained across power cycles in stored routes for direct legs but changes to altitude constraints in terminal area procedures will not be retained in stored routes.
Page 375 AeroNav 900/880 Series Pilot’s Guide To return to flight mode, remove the USB fob and cycle power to the AeroNav. TIPS AND TECHNIQUES Some Elements Simulated in Demo Mode Some aspects of AeroNav behavior are completely simulated in demo mode. For example, on models equipped with a VHF radio, the radios can be “tuned”...
Page 376: Data Transfer To/From External Devices
WiFi is the fastest, most capable and most real-time method. A list of the applications and devices supported can be viewed at https://www.bendixking.com/en/products/aeronav-gps-navigators Data that can be transferred is expected to grow over time but the basic functions are summarized in the table below...
Page 377 AeroNav 900/880 Series Pilot’s Guide Transmission Data Transfer Description Method(s) Stored Routes Stored flight plan routes WiFi are a bi-directional transfer between the AeroNav and approved third party device/applications. Routes can be created off-board and imported into the AeroNav, and/or can be created on the AeroNav and transmitted off-board for third party...
Page 378 AeroNav 900/880 Series Pilot’s Guide Transmission Data Transfer Description Method(s) User Waypoints User waypoints are a bi- WiFi, USB directional transfer between the AeroNav and approved third party device/applications. User waypoints can be created off-board and imported into the AeroNav, and/or can be created on the AeroNav and transmitted off-board for third party...
Page 379 AeroNav 900/880 Series Pilot’s Guide Transmission Data Transfer Description Method(s) Data Entry and Data can be entered (e.g. Bluetooth AeroNav frequencies, waypoint manipulation names, checklist data, etc) from a properly paired external Bluetooth keyboard. In addition, bezel controls and other AeroNav manipulation can be accomplished (e.g.
Page 380: Regulatory Compliance Statements
AeroNav 900/880 Series Pilot’s Guide REGULATORY COMPLIANCE STATEMENTS RADIO REGULATORY COMPLIANCE STATEMENTS† This device complies with Part 15 of the FCC limits for Class B digital devices and Industry Canada license-exempt RSS standard(s). This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
Page 381: Déclaration(S) De Conformité Réglementaire
AeroNav 900/880 Series Pilot’s Guide DÉCLARATION(S) DE CONFORMITÉ RÉGLEMENTAIRE† Cet appareil est conforme aux limites de l’article 15 de la FCC pour les appareils numériques de classe B et aux normes RSS exemptes-de-licence d'Industrie Canada. Cet équipement génère, utilise et peut émettre une énergie de fréquence radio et, s’il n’est pas installé...
Page 382: Maintenance Mode
AeroNav 900/880 Series Pilot’s Guide MAINTENANCE MODE During normal operation, when power is applied to the AeroNav it starts up in "flight mode". However, there is a separate built-in "maintenance mode" that is used for various reasons including changing the configuration of the AeroNav interfaces, uploading databases, downloading logs, and performing software updates.
Page 383 AeroNav 900/880 Series Pilot’s Guide Download Logs LSK Confirm/Cancel LSKs 89000039-010 Rev 1 May 2019 General 7-53...
Page 384: Exiting Maintenance Mode
AeroNav 900/880 Series Pilot’s Guide Update Databases LSK The Update Databases LSK is intended for use when updating databases. Press the Status LSK until Databases is selected. Then press "Update Databases", which will have appeared by the bottom left LSK (L4). At that point, the LSKs will be changed to "Confirm"...
Page 385: Database Updates
AeroNav 900/880 Series Pilot’s Guide DATABASE UPDATES Periodic updates to nav, chart, obstacle, and terrain databases are all made through the USB port on the front of each AeroNav. Updates must be performed in accordance with 14 CFR Part 43, Appendix A.
Page 386 AeroNav 900/880 Series Pilot’s Guide Use one of the formatted fobs supplied by BendixKing (marked by the BendixKing logo printed on one side). In the event you no longer have those available, either call BendixKing for a replacement fob (a nominal fee will be charged) or purchase a replacement through other means.
Page 387 AeroNav 900/880 Series Pilot’s Guide options for saving that are not discussed here). Rotate the right inner or outer knob to scroll the cursor up and down and then press the knob button to select the item surrounded by the cursor. The cursor can also be moved by touching items in the list and an item can be selected by touching the item surrounded by the cursor.
Page 388 AeroNav 900/880 Series Pilot’s Guide TIPS AND TECHNIQUES Select Only Desired Files For Upload If you keep reusing the same fob for database uploads, be sure to either delete all out-of-date and non-desired files or take care in selecting/de- selecting files from the AeroNav display list. Not doing so may extend data upload times considerably by uploading unintended files.
Page 389 AeroNav 900/880 Series Pilot’s Guide and disappear. The progress bar will reset and be updated for each item to be loaded. Upload progress bar Typical upload times are:  Worldwide Obstacles (1.5 MB) – 5 sec  Eastern US Charts (100 MB) – 3min ...
Page 390 AUX button and then go back to the Update tab. If the load was not successful, either try again using the error message as a guide or contact BendixKing technical support. 89000039-010 7-60 General...
Page 391 AeroNav 900/880 Series Pilot’s Guide Upload Complete Indications When all loading operations have been completed, press the “Done” LSK to restart the AeroNav in flight mode. Remove the USB fob and store it in a safe place. If the USB fob is inadvertently left in the USB port during flight mode, there will be no adverse affect as the USB fob is ignored during flight mode.
Page 392 AeroNav 900/880 Series Pilot’s Guide NOTE Report Observed Discrepancies BendixKing requests that any observed database discrepancies get reported. These discrepancies may be in the form of an incorrect procedure, incorrectly identified terrain, obstacles, navigation fixes, or any other displayed item used for navigation or communication in the air or on the ground.
Page 393: Software Updates
USB connections as well. This means the AeroNav does not need to be returned to the factory for any future software updates. The BendixKing position is that any shop that holds a repair station certificate, an A&P, or an Experimental Aircraft owner with log book signoff authority can perform the update.
Page 394: Datalogs Download
Datalogs Usable But BendixKing Property The contents of the data logs and the storage devices that record and store data remain the property of BendixKing. However, you are free to download and use the data for your own training and safety improvement purposes.
Page 395 AeroNav 900/880 Series Pilot’s Guide  Configuration Log – This set of .txt files contains various system settings, states, and calibrations at power down. To download logs, start the AeroNav in maintenance mode (see Maintenance Mode section on page 7-52). Once maintenance mode has started, press the right side of the AUX page function key to select the “Logs”...
Page 396 AeroNav 900/880 Series Pilot’s Guide cursor is already selected will cause the item to be deselected. All items in the list can be selected or deselected at once using the "Select All" and "Un-Select All" LSKs. The “Logs” LSK provides two options - "Full" and "Since Last". The "Full"...
Page 397 BendixKing Service Center technicians. Event Log This log contains miscellaneous data such as all alerts, keystrokes, system status and error messages, etc. It is a diagnostics log for BendixKing Service Center technicians. 89000039-010 Rev 1 May 2019 General 7-67...
Page 398 AeroNav 900/880 Series Pilot’s Guide GPS Log This log contains miscellaneous internal GPS state data. It is a diagnostics log for BendixKing Service Center technicians. Configuration Log (Number of parameters in parenthesis which are saved in the form of multiple text “.txt” files)
Page 399: User Data Backup/Restoration Procedure
AeroNav 900/880 Series Pilot’s Guide USER DATA BACKUP/RESTORATION PROCEDURE Use the following procedure to store and reload user checklists, user settings, waypoints, and routes. The original user data must be generated on an AeroNav and backed up using this procedure. Then, they can be reloaded onto any AeroNav or multiple AeroNavs via this procedure.
Page 400: Reloading Previously Stored User Data
AeroNav 900/880 Series Pilot’s Guide TIPS AND TECHNIQUES Additional Means of Recording Configurations BendixKing highly recommends recording your user preferences and configuration settings (including Maintenance Mode “Config” pages) in an alternate form (e.g. smart phone photographs of the page settings) as an additional precaution.
Page 401 AeroNav 900/880 Series Pilot’s Guide Selected but hasn’t started Pending … Active … Save or Restore underway Skipped … Save or Restore passed over Completed with no error Completed with error 89000039-010 Rev 1 May 2019 General 7-71...
Page 402: Configuring Wifi
AeroNav 900/880 Series Pilot’s Guide CONFIGURING WIFI The WiFi system inside the AeroNav is a system that uses. The AeroNav has built-in WLAN, 2.4 GHz WiFi capability supporting IEEE 802.11 A, B, G, and N protocols. The AeroNav WiFi can be configured to function either as a Wireless Access Point (WAP) or as a client to an external network.
Page 403 AeroNav 900/880 Series Pilot’s Guide touching the tab. Then, rotate the right outer knob until the Network Configuration page is displayed. Maintenance mode Network Configuration Page Each network configuration is defined by three settings, as follows:  SSID / Name - the name of the network. For a WAP configuration, this will be the SSID transmitted by the AeroNav.
Page 404 AeroNav 900/880 Series Pilot’s Guide cursor. To move the cursor between fields, rotate the right outer knob. When finished defining the desired network configurations, exit maintenance mode using the "Done" LSK on the Update tab. Entering the network SSID/Name and PSK The SSID/Name and PSK fields are free text fields.
Page 405: Selecting A Network Configuration
AeroNav 900/880 Series Pilot’s Guide NOTE Spaces at the end of the PSK will not be contained in the final PSK. In other words, "PASSWORD<SP><SP>" will present a network PSK of "PASSWORD". Non empty PSKs must contain at least 8 characters. If there are fewer than 8 characters, the system will fill missing characters with a '?' character.
Page 406 AeroNav 900/880 Series Pilot’s Guide With the cursor around "Networking", use the right inner knob to select the desired SSID/Name. WiFi can be disabled by selecting "Off". NOTE When using the inner knob to select a WiFi configuration, options for "Local Wired", "Remote Wired"...
Page 407: Configuring Wired Ethernet
AeroNav 900/880 Series Pilot’s Guide CONFIGURING WIRED ETHERNET The AeroNav has the capability to communicate over a wired ethernet connection. While that capability is described here, it is neither authorized for general use nor is it covered by an STC. CONFIGURING AS A NETWORK SERVER The AeroNav can act as a server on a wired network, performing DHCP functions allowing client nodes to connect to it.
Page 408 AeroNav 900/880 Series Pilot’s Guide outer knob, scroll down to the "Networking" option. Then use the right inner knob to select "Static IP". 89000039-010 7-78 General Rev 1 May 2019...
Page 409: Pairing A Bluetooth Keyboard
Options page on one AeroNav. NOTE Acceptable Bluetooth Keyboards Due to certification constraints, only BendixKing supplied Bluetooth keyboards will be functional. Before attempting to pair a Bluetooth keyboard, ensure the keyboard has adequate charge, then turn it on using the switch on the left side.
Page 410 AeroNav 900/880 Series Pilot’s Guide Press the button on the back of the keyboard to make it discoverable. Then, press the "Start Scan" LSK on the AeroNav. After a while, the AeroNav will discover the keyboard and it will appear on the list of devices shown on the screen. At that point, press the "Stop Scan"...
Page 411 AeroNav 900/880 Series Pilot’s Guide Bluetooth pairing - keyboard discovered Bluetooth pairing - Pair Device LSK 89000039-010 Rev 1 May 2019 General 7-81...
Page 412 AeroNav 900/880 Series Pilot’s Guide Bluetooth pairing - pairing code 89000039-010 7-82 General Rev 1 May 2019...
Page 413 If the device is not shown in green or if the device name disappears from the display, restart the pairing process with pressing the button on the back of the keyboard. If repeated attempts to pair are unsuccessful, contact BendixKing Technical Support. After successful pairing, exit maintenance mode by pressing the "Done"...
Page 414: Verification Of Successful Pairing
AeroNav 900/880 Series Pilot’s Guide VERIFICATION OF SUCCESSFUL PAIRING Start the AeroNav in flight mode. As the AeroNav is starting in flight mode, a pop-up message will appear asking to confirm that the use of a remote keyboard is authorized. Touch "Allow" or press the ENTR button on the AeroNav to authorize the use of the keyboard.
Page 415 AeroNav 900/880 Series Pilot’s Guide TIPS AND TECHNIQUES Common Mistake with Bluetooth Legend A common mistake is to interpret the Bluetooth Setup status legend in the top left corner of the Bluetooth Setup page as the actual state of Bluetooth. TIPS AND TECHNIQUES “Inoperative”...
Page 416 AeroNav 900/880 Series Pilot’s Guide TIPS AND TECHNIQUES Keyboard Status Indications A solid green LED lamp indicates the keyboard is connected. A flashing green LED indicates it is trying to pair. A yellow LED is lit every time a keystroke is sent to the AeroNav. While charging, the red LED turns on and grows dimmer as the charge increase.
Page 417: Cleaning The Display
The use of any third-party screen protector, especially those that adhere directly to the AeroNav display glass, is not endorsed by BendixKing due to the touch-screen nature of the display and may void the warranty for any display related issue.
Page 418: Slide-In Replacement Details
AeroNav 900/880 Series Pilot’s Guide SLIDE-IN REPLACEMENT DETAILS The AeroNav is designed as a slide-in replacement of the following equipment: Garmin BendixKing Garmin Product Product Baseline Comments AeroNav 4.01 No HTAWS 530W (Main) enablement. This 530AW corresponds to Rev 530TAWS...
Page 419 AeroNav 900/880 Series Pilot’s Guide Unsupported 500/530 Functionality Comments Fixed Wing Terrain TSO C-151c functionality is all Awareness and Warning present in the AeroNav System – TAWS however the AeroNav does not hold the TSO C-151c approval and therefore may not take credit in aircraft where TSO C-151c compliance is required.
Page 420 AeroNav 900/880 Series Pilot’s Guide TIPS AND TECHNIQUES Multiple Integration Options Discuss integration options with your installer. There are several options that can be added to the system for added capability. There is a dedicated section in the AeroNav Installation Manual that identifies these options.
Page 421 AeroNav 900/880 Series Pilot’s Guide INDEX Display · 5-41 Keyboard · 1-45 Night Operations · 7-33 Backup/Restore · 7-69 Abnormal Procedures · 7-27 Before Takeoff · 1-55 Activate Leg · 3-34 Bezel Layout · 1-12, 1-13 ADS-B Traffic · 4-45 Bluetooth Advisories ·...
Page 422 AeroNav 900/880 Series Pilot’s Guide Flight Plan Activating · 3-24 Approaches · 3-30 Data Transfer · 7-46 Arrivals · 3-30 Database Compact View · 3-8 Currency · 5-56 Creating · 3-4 Currency States · 1-20 Cursor Centered View · 3-8 Discrepancies ·...
Page 423 AeroNav 900/880 Series Pilot’s Guide Gloves · 7-39 Local Time Offset · 5-43 GPS Status · 5-57 LP · 6-28 Graphical Flight Planning · 4-14 LP+V · 6-28 LPV · 6-26, 6-28 Heading Horizon Tick Marks · Manual Sequencing · 6-3 Hide Page Tabs ·...
Page 424 AeroNav 900/880 Series Pilot’s Guide Range To Altitude Arc · 3-29 Retry Approach · 6-33 RNAV · 6-26 OBS Mode · 6-8 RNP · 6-35 Obstacles Route Preview · 3-45 Database · 5-56 Rubber Banding · 4-14 Map · 4-31 Symbology ·...
Page 425 AeroNav 900/880 Series Pilot’s Guide As an airfield · 3-50 Creating · 3-49 Deleting · 3-50 TA · 4-30 Naming · 3-50 TAWS-B · 4-37 UTM · 5-52 Terrain Awareness · 4-30 TFR · 4-26 Three Dimesional (3D) Traffic · Timers ·...
Page 426 9201 B San Mateo Blvd. NE Albuquerque, NM 87113, U.S.A. CAGE: 6PC31 505-903-6148 Worldwide 855-250-7027 – US & Canada www.bendixking.com...

This manual is also suitable for:

Aeronav 900 Aeronav 905 Aeronav 880

BENDIXKing AeroNav 910 Pilot's Manual

1 System Overview

2 SVS Subsystem

3 FMS Subsystem

4 Map Subsystem

5 Aux Subsystem

6 Navigation

7 General

Quick Links

Need help?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BENDIXKing AeroNav 910

Summary of Contents for BENDIXKing AeroNav 910
