Basic configuration of the router using the web interface

11.
11.1

Web interface home page

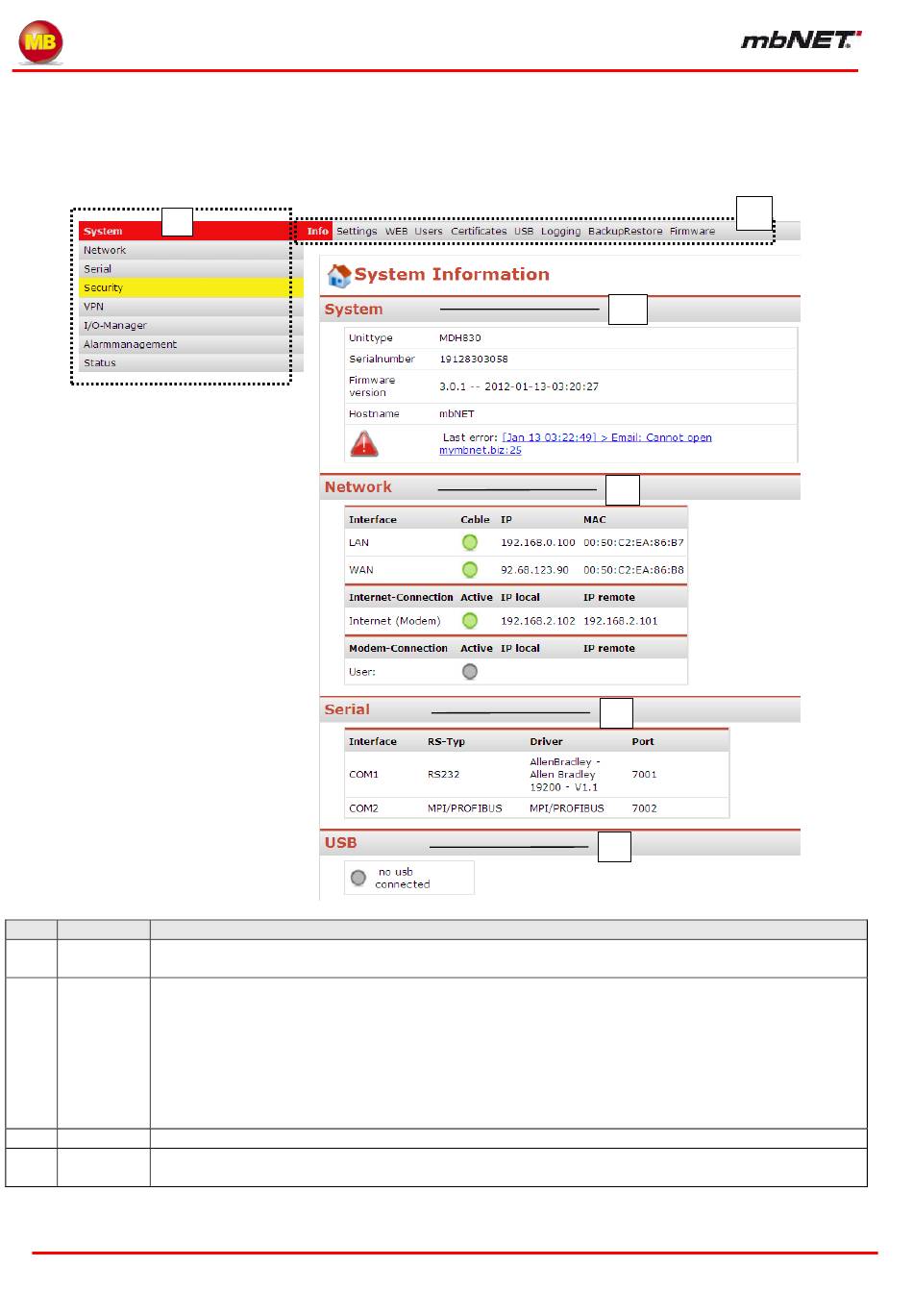

The home page is designed to provide you with an at-a-glance view of the most important information on mbNET
router access or status. The side (1) and top (2) navigation bars will provide the support you need when configur-
ing the router. The navigation bar at the top (2) displays the submenu for each of the main menu items listed in
the navigation bar at the side (1).
1
Pos. Label
System information such as device model, device name, current firmware version and serial
3 System
number of the router.
Interface: LAN – WAN:
Displays which network connections are currently connected to the existing network via the re-
spective ports. A green icon indicates an existing connection.
Internet connection: A currently active Internet connection (or connections) is indicated by a
4 Network
green dot. If there is no currently active Internet connection, the circle is solid gray.
Modem connection: Only incoming modem connections are shown here. A green dot means
that a modem connection is established. The display also shows which user is connected to the
modem.
5 Serial This shows the current configuration of interfaces COM1 andCOM2.
Information on connected USB storage devices. A connected storage device (e.g. flash drive or
6 USB
external hard drive) is indicated by a green dot.
Page 34 of 226
Version: 3.3.5 – DR05 – 23.03.2017
3
4
5
6
