17.4.4

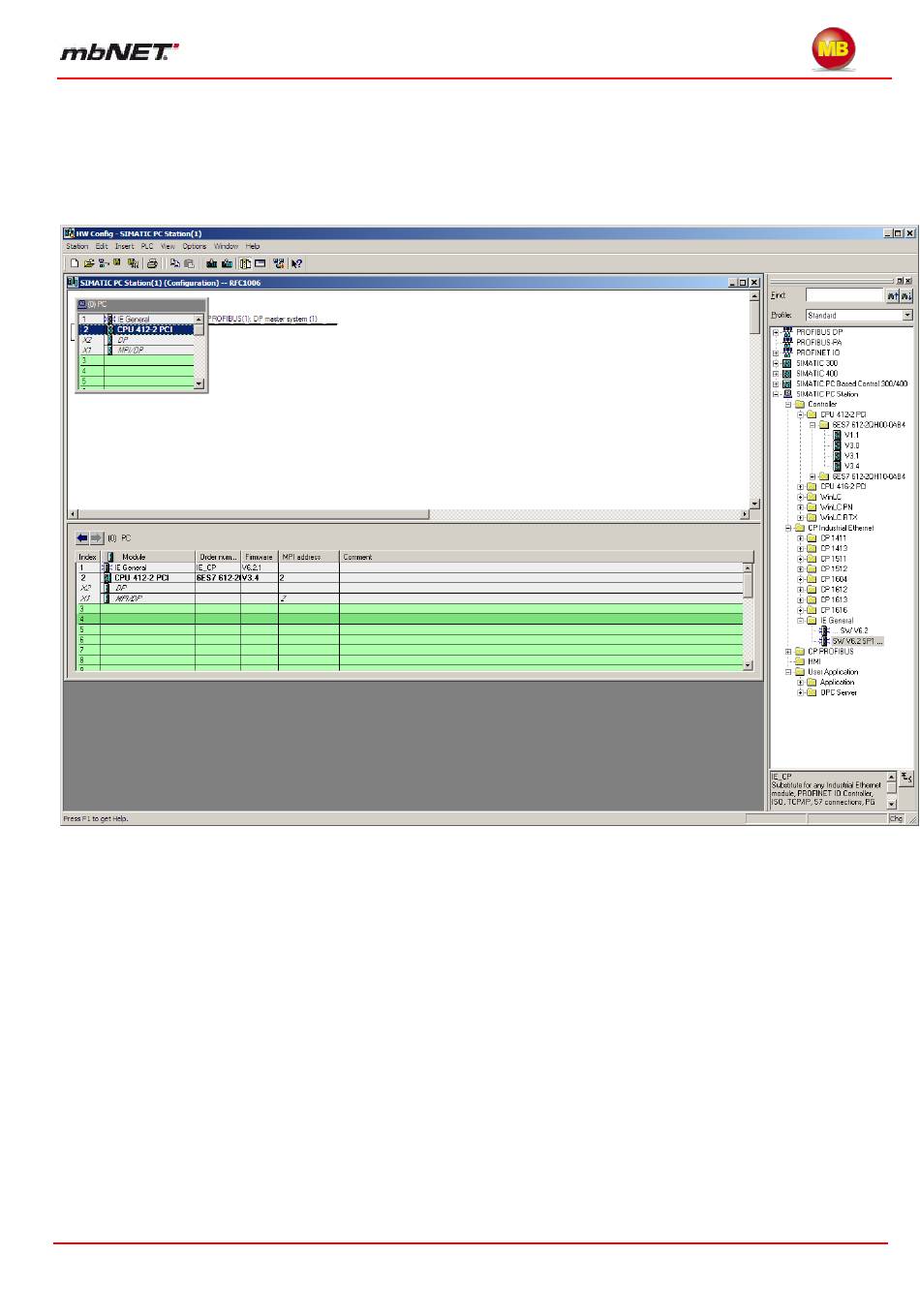

Configure PC station
This "PC Station" requires the integration of a "CPU 412-2 PCI (6ES7 612-2QH00-0AB4 V3.4)",
found by selecting "Simatic PC Station -> Controller -> CPU412-2 PCI" and a "IE_CP V6.2.1 (IE
General)" found by selecting "Simatic PC Station -> CP-Industrial Ethernet -> IE General->
IE_CP SW V6.2 SP1".
The finished station must now be saved, and appears in "NETPro".
The MPI/DP address must match the settings entered in "own station address" on the mbNET.
Page 143 of 226
Version: 3.3.5 – DR05 – 23.03.2017
