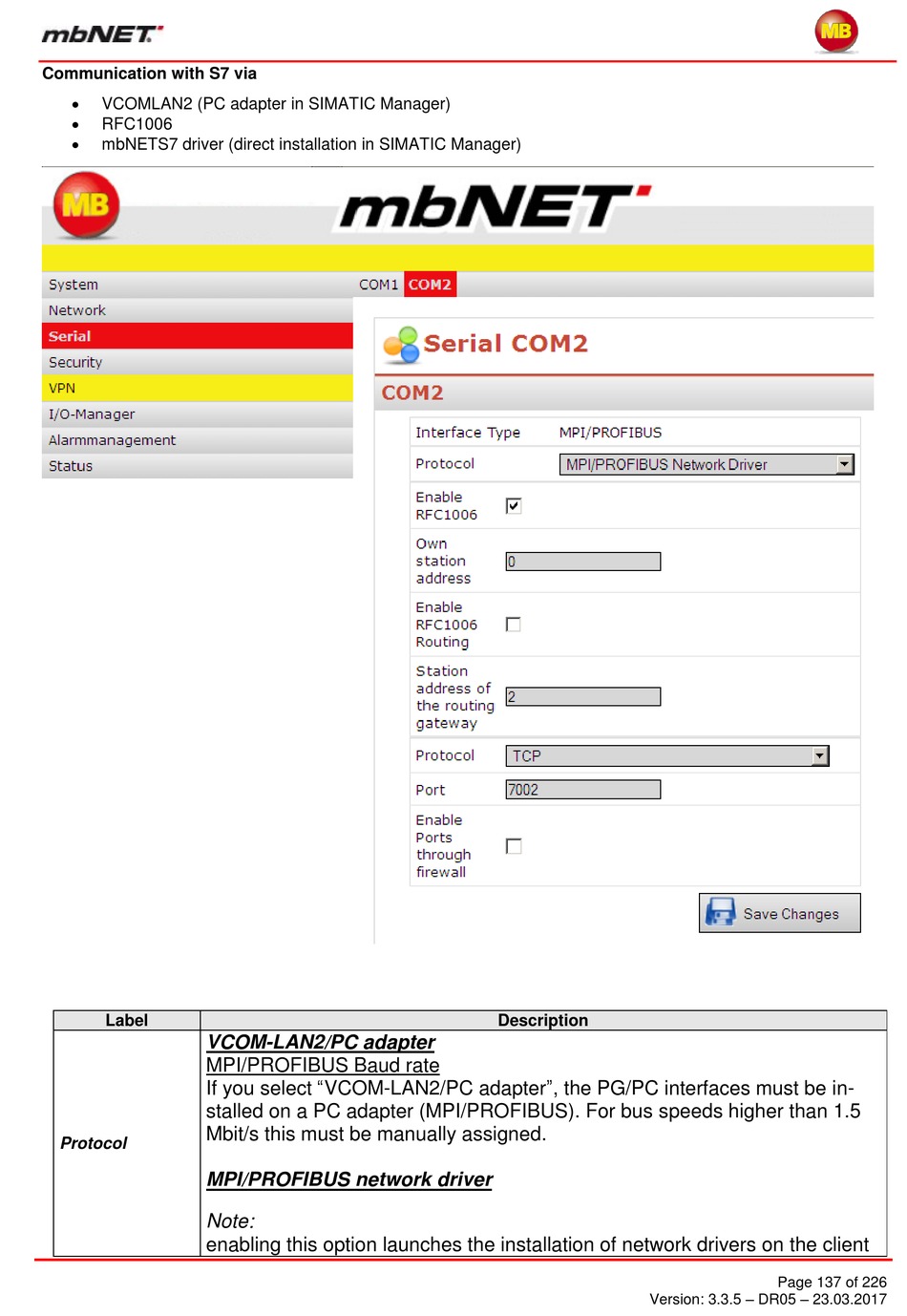

Communication with S7 via
VCOMLAN2 (PC adapter in SIMATIC Manager)
RFC1006
mbNETS7 driver (direct installation in SIMATIC Manager)
Label
VCOM-LAN2/PC adapter
MPI/PROFIBUS Baud rate
If you select "VCOM-LAN2/PC adapter", the PG/PC interfaces must be in-
stalled on a PC adapter (MPI/PROFIBUS). For bus speeds higher than 1.5
Mbit/s this must be manually assigned.
Protocol
MPI/PROFIBUS network driver
Note:
enabling this option launches the installation of network drivers on the client
Description
Version: 3.3.5 – DR05 – 23.03.2017
Page 137 of 226
