Status messages

22.
22.1

General

The industrial router must be analyzed using certain status information when errors occur. For example, a flashing
ERROR LED indicates that a system error has occurred on the router. The cause of the error can be determined e.g.
–
via Status System using the list.
The various status displays are described below:

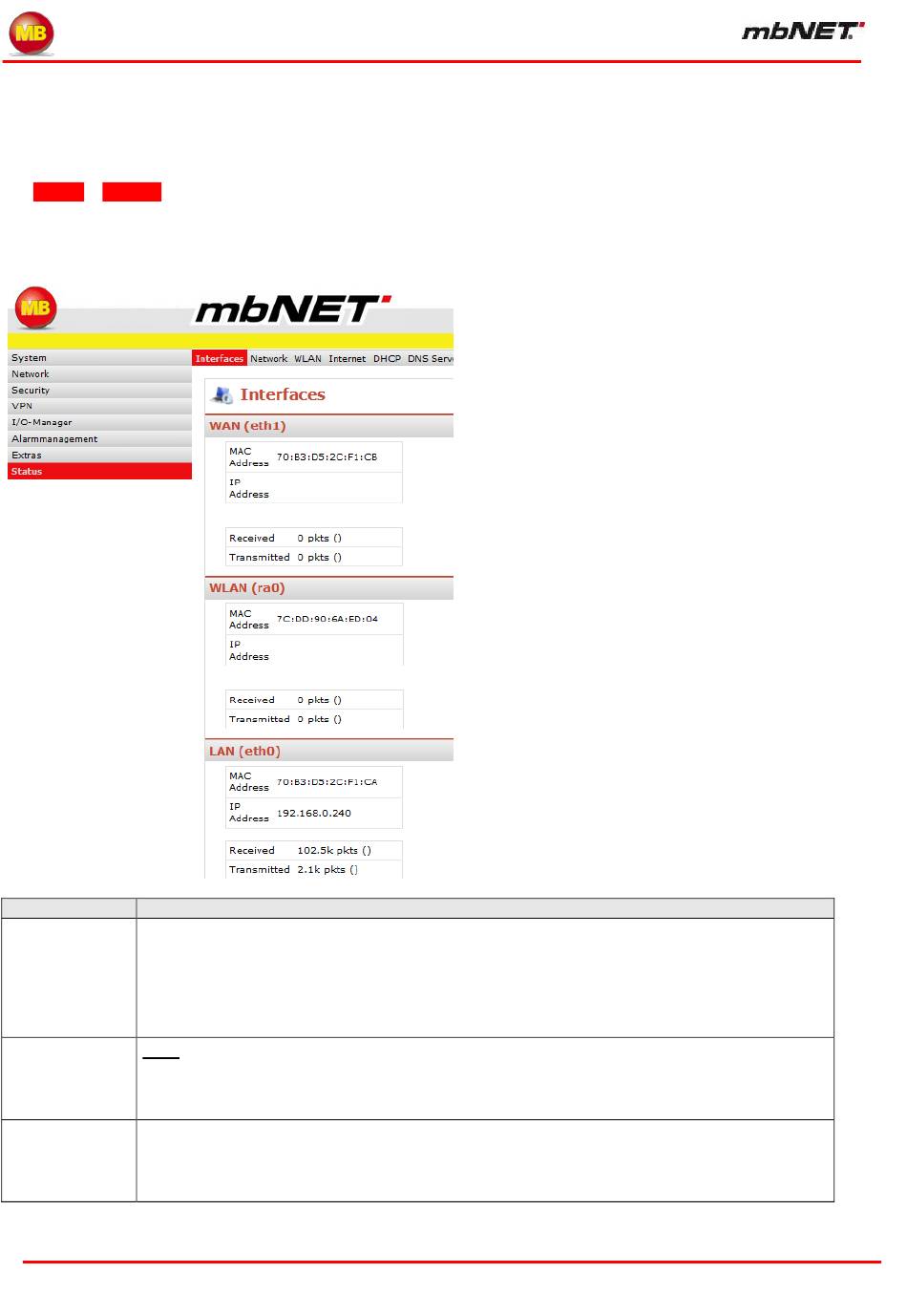

Status – Interfaces
22.2
Label
Shows the settings at the router's WAN connection (external connection). The IP address is
WAN displayed as soon as the router has a physical connection to the network or is assigned a
static IP address. The number of data packets received and transmitted is displayed.
Note: Only at mbNET variants with WLAN.
Shows the settings at the router's LAN connection (local connection). The IP address is dis-
WLAN
played when the router has a physical connection. The number of data packets received and
transmitted is displayed.
Shows the settings at the router's LAN connection (local connection). The IP address is dis-
LAN
played when the router has a physical connection. The number of data packets received and
transmitted is displayed.
