6.2

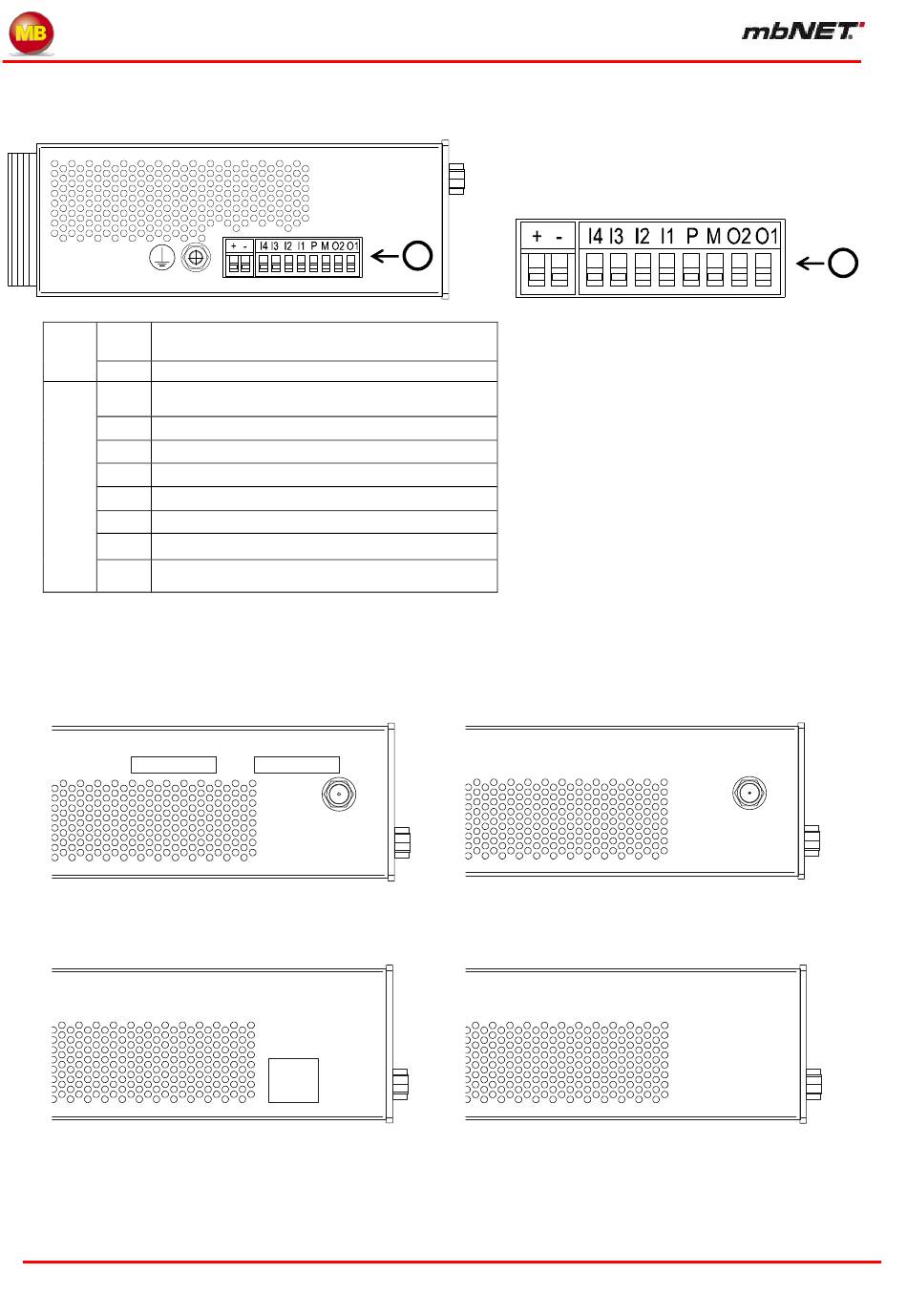

Top, bottom and back panel views
Top view
Power supply connection
+
X1
10-30V DC
-
0V DC connection
4
Digital input I4 (10-30V)
3
Digital input I3 (10-30V)
2
Digital input I2 (10-30V)
1
Digital input I1 (10-30V)
X2
P
Fuse-protection 10-30V DC
M
0V DC connection
O2
Digital output A2
O1
Digital output A1
Bottom view
MDH814, MDH819, MDH834, MDH849,
MDH850, MDH855, MDH858, MDH859
SIM 1
MDH810, MDH815, MDH830
Page 18 of 226
Version: 3.3.5 – DR05 – 23.03.2017
SIM card slots
SIM 2
Antenna
Connection
(female)
RJ11
Connection
X1
|
A
MDH811, MDH831, MDH841
MDH816, MDH835
X2
Antenna
Connection
(male)
A
