EM TRACKING UNIT

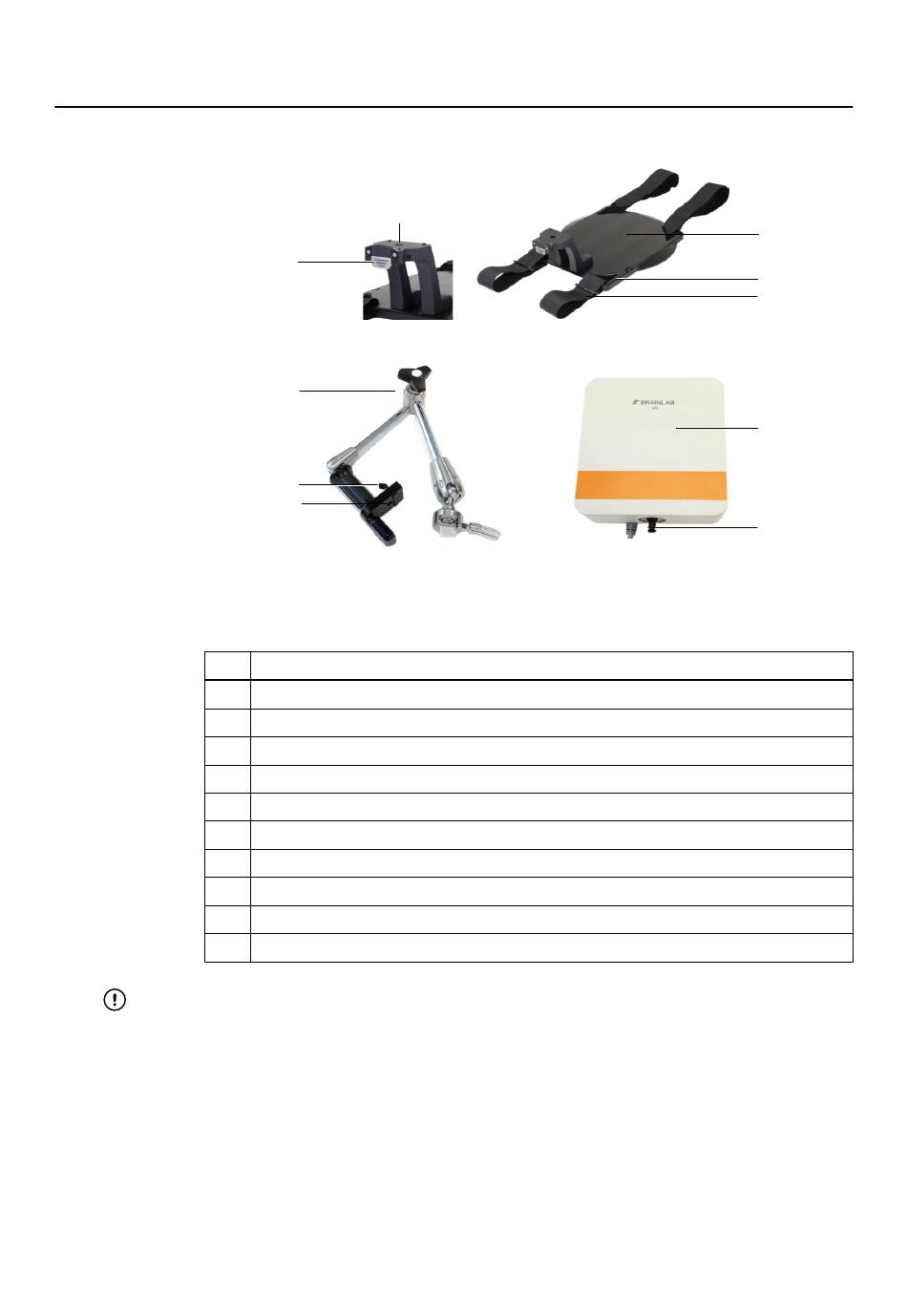

EM Field Generator with Fixation Plate and Positioning Arm
EM Field Generator can be attached to either the Fixation Plate or Positioning Arm during
surgery.
No.
①
②
③
④
⑤
⑥
⑦
⑧
⑨
⑩
Check the EM Field Generator Fixation Plate and Positioning Arm for visible damage before
use and do not used if damaged.
System and Technical User Guide Rev. 1.0 Curve Dual Navigation Station Ver. 1.2
⑤
④
③
②
①
Component
Fixation interface for EM Field Generator Positioning Arm
Release mechanism for Em Field Generator Positioning Arm
EM Field Generator Positioning Arm
Release mechanism for EM Field Generator Fixation Plate
Fixation interface for EM Field Generator Fixation Plate
EM Field Generator Fixation Plate
Velcro strap attachment
Velcro strap
EM Field Generator
EM Field Generator fixation piece
Figure 35
⑥
⑦
⑧
⑨
⑩
