LEDs and Acoustic Signals

4.4 LEDs and Acoustic Signals

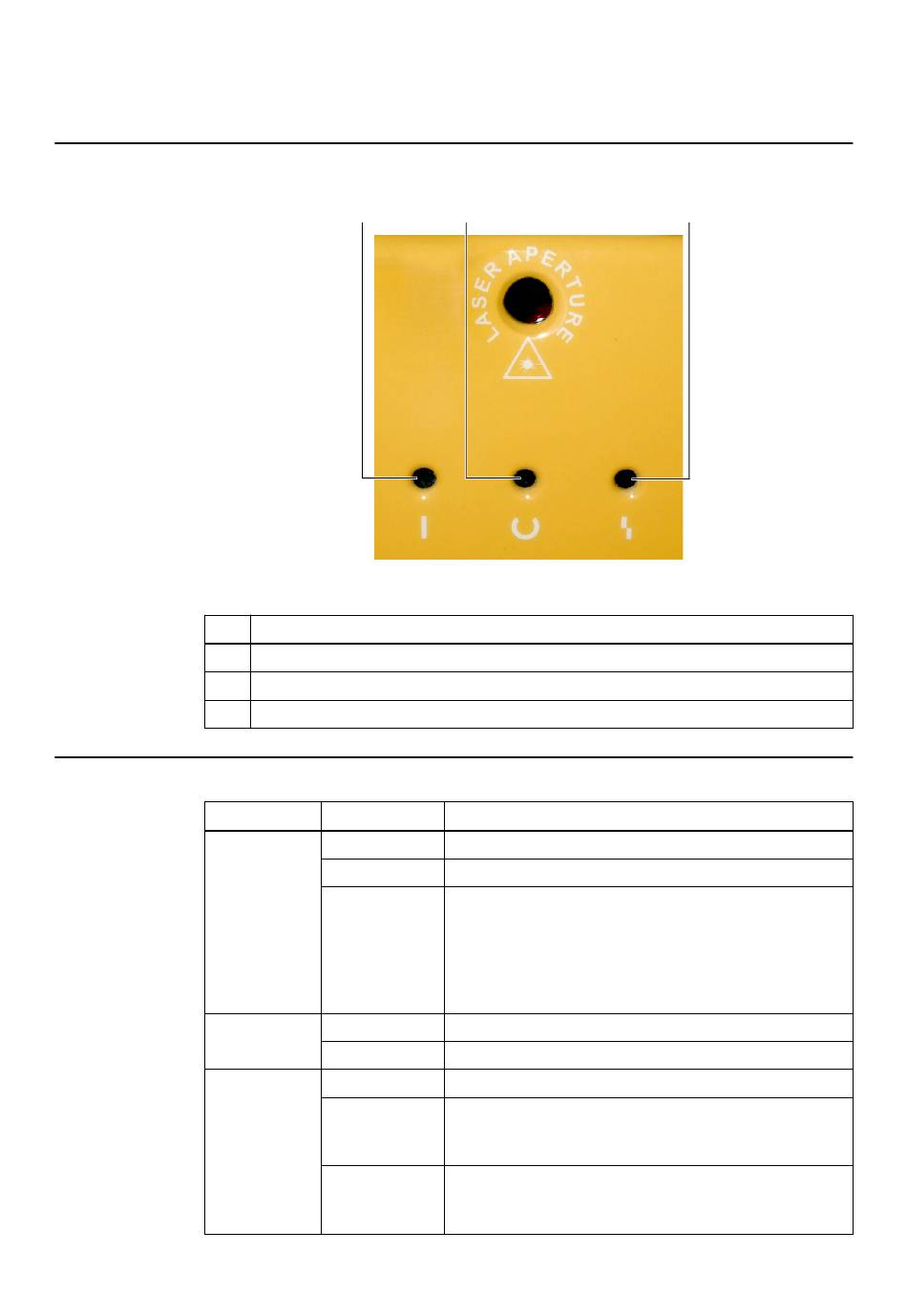

Illustration
No.
①
②
③
LED Indications
LED
Power LED ①
Status LED ②
Error LED ③
74
①
Component
Power LED
Status LED
Error LED
Status
Flashing green
Solid green
Off
Solid green
Off
Off
Flashing amber
Solid amber
System and Technical User Guide Rev. 1.0 Curve Dual Navigation Station Ver. 1.2
②
Figure 32
Indication
Camera is warming up.
Camera is ready for use.
• Camera Cart is not powered
• If system is powered, ensure that Camera Cart is con-
nected.
• Contact Brainlab support if Camera Cart is properly pow-
ered, but power LED remains off (even if navigation is still
possible).
Communication connection established.
Contact Brainlab support.
No error detected.
• Error detected.
• Contact Brainlab support (even if navigation is still possi-
ble).
• Camera defect.
• Contact Brainlab support (even if navigation is still possi-
ble).
③
